Brand:
ECCO
Origin: USA
Click for:

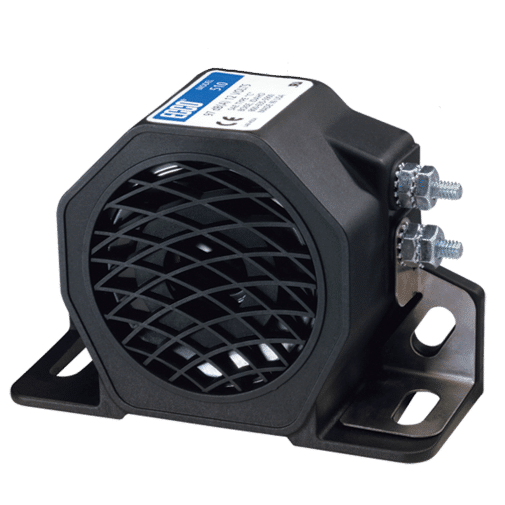

Surface Mount Alarm
ECCO’s most compact and popular line of back-up alarms, the 500 Series provides a cost-effective warning solution with ECCO quality and reliability. Compact size and universal mounting bracket maximizes location options, self grounding (except 575) with stud terminal connections, sealed in epoxy for protection against dust, moisture, and vibration.
ECCO 500 Series Tonal Alarm Features & Benefits ▲
- Compact size and universal mounting bracket maximizes location options
- Self grounding (except 575)
- Sealed in epoxy for protection against dust, moisture, and vibration
- Temperature Range: -40°F to +185°F (-40°C to +85°C)
ECCO 500 Series Tonal Alarm Videos ▲
Videos
ECCO 500 Series Tonal Alarm Specifications ▲
| Voltage | 12-24V DC |
| Amps | 0.1A (505), 0.2A (SA951, 520), 0.4A (SA950), 0.9A (575).1.0A (530) |
| Decibels | 77-97dB (SA9510), 87-102dB (SA950), 87dB (505), 97dB (520), 102dB (530, 575) |
| Connection | 8-32 uni stud |
| Approvals | SAE Type D (505), SAE Type F (530), SAE Type B (575), IP65 (505, 520), AMECA (505, 530) CE, R10, UL |
| Warranty | 2 Years |
ECCO 500 Series Tonal Alarm Specifications Flyer (PDF) ▲
Applications: Utility vehicles, construction vehicles, refuse trucks, tow trucks, light mining vehicles

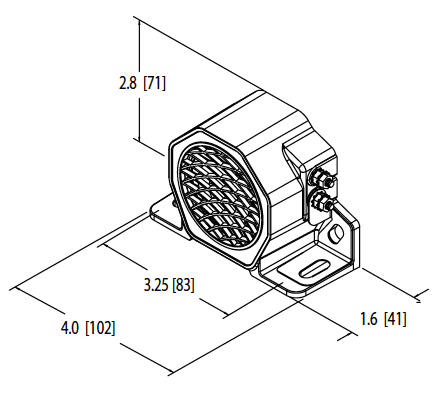

Dimensions:
Width: 1.6" (41 mm), Height: 2.8" (71 mm), Depth: 4.0" (102 mm)
ECCO 500 Series Tonal Alarm Parts Enquiry ▲
ECCO 500 Series Tonal Alarm, 12-24V DC, 0.2A, 97Db, SAE Type C, CE, R10, UL, AMECA, IP65
ECCO 500 Series Tonal Alarm, 12-24V DC, 1.0A, 102Db, SAE Type F, CE, R10, UL, AMECA, IP65
ECCO 500 Series Tonal Smart Alarm, 12-48V DC, 77-97Db, 0.2A, CE, R10, UL
ECCO 500 Series Tonal Smart Alarm, 12-24V DC, 82-102Db, 0.4A, CE, R10, UL
ECCO 500 Series Tonal Alarm, 12-24V DC, 87Db, 0.1A, SAE Type D, CE, R10, UL, IP65, AMECA
ECCO 500 Series Tonal Alarm, 12-24V DC, 102Db, 0.9A, SAE Type DB CE, R10, UL
