ECCO 7660 LED Rotating Beacon

ECCO 7660 LED Rotating Beacon

Brand: ECCO
Origin: USA


Click for:

NEW UPDATED MODEL – GEN II Amber Beacon / LED Rotating Beacon

ECCO 7660 LED Rotating Beacon – SAE Class I LED Hybrid

The 7660 Series RotoLED™ Gen II LED rotating beacon combines all the major benefits of the latest LEDs with the unmistakable warning signal of a rotator, all without compromising reliability. LED hybrid technology uses a brushless magnetic drive system to spin the reflector disk, reducing noise and eliminating the typical motor/gear drawbacks associated with conventional rotators. The 7660 LED beacon also features eight high-intensity LEDs and a TIR optic to provide SAE Class I light output. Additional benefits include low amp draw, extended service-free life, and a 5-year warranty.

This amber beacon upgrades the offering of the 7610 Series and combines all the major benefits of the latest LED technology with the identifiable warning signal of a rotator. At the heart of this rotator is a brushless magnetic drive system that spins the reflector disk at 2 different rotating speeds; 75FPM and 125FPM. LED automotive rotating beacons with their sweeping beams provide better location visibility in fog and poor light conditions.



ECCO 7660 LED Rotating Beacon Features & Benefits

  • 1 Flash pattern, 2 different rotating speeds; 75FPM and 125FPM
  • LED hybrid technology provides a high intensity rotating warning signal with no gears, brushes or bulbs to wear out
  • Eight high-intensity LEDs combined with a TIR optic
  • UV hard coated lens to greatly reduce cracking, hazing, abrasion and fading
  • Meets Class I across the full temperature range: -22°F to +122°F (-30°C to +50°C)
  • IP Rating: IP67
  • Heavy Duty die cast aluminium base
  • 12-24VDC input, spike protected up to 150VDC and reverse polarity protected
  • No EMI / Radio Interference
  • Universal bolt pattern for simple mounting
    • 3 Bolt Flange / 1” Pipe
    • Vacuum Magnet (magnetic beacon light)
  • 5 year manufacturer warranty



ECCO 7660 LED Rotating Beacon Specifications

TypeLED beacon, LED rotating beacon, amber beacon
LEDs8 x high-intensity LEDs combined with a TIR optic
FPM1 Flash pattern, 2 different rotating speeds; 75FPM and 125FPM
ColourAmber beacon
Voltage12-24V DC
Amps2.1 @ 12.8V DC
Watts26.9W @ 12.8V DC (maximum consumption)
Standards ComplianceSAE J845 Class I, CE, R10, IP67, Cal. Title 13, RoHS
Temperature Range-22°F to +122°F (-30°C to +50°C)
Mount3 Bolt Flange / 1” Pipe
Vacuum Magnet (magnetic beacon light)
Weight2.6 lbs (1.2 kg)

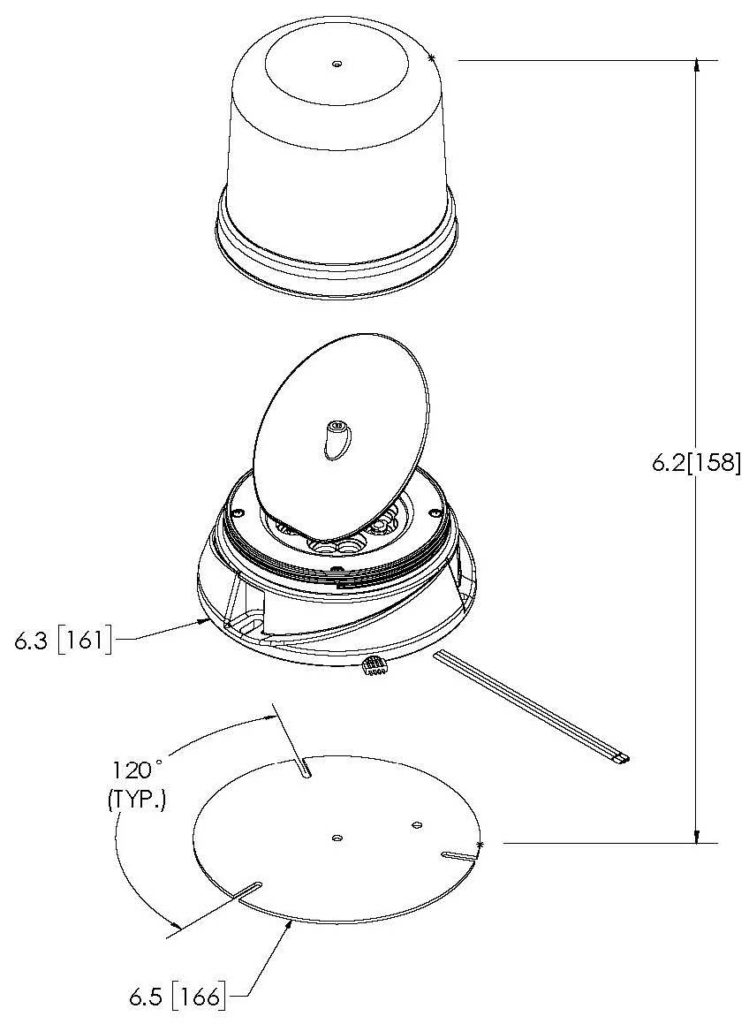

Dimensions7660: Height: 6.2" (157mm), Diameter: 6.3" (160mm)

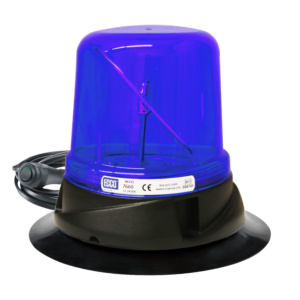

7660-VM: Height: 7.1" (180mm), Diameter: 8.0" (203mm)
Warranty5 Years, ECCO Care

ECCO 7660 LED Rotating Beacon Specifications Flyer (PDF)



ECCO 7660 LED Rotating Beacon Accessories
A7660PF
A6000VMK

Obsolete Parts
7660CW  ECCO / Preco 7660 Series LED Beacon 125RPM 12-24V Clear Lens/White
7660CB  ECCO / Preco 7660 Series LED Beacon 125RPM 12-24V Clear Lens/Blue
7660CR  ECCO / Preco 7660 Series LED Beacon 125RPM 12-24V Clear Lens/Red

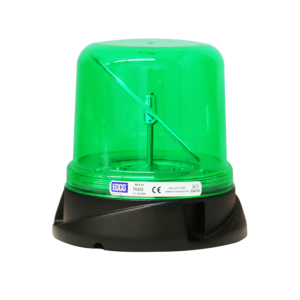

7660CG  ECCO / Preco 7660 Series LED Beacon 125RPM 12-24V Clear Lens/Green


Applications: Mining, Utility Vehicles, Heavy Equipment, Industrial, Construction, Utility, Agriculture, Port, Material Handling


Dimensions:
, Height: 6.2 " (157 mm), Dia: 6.4 " (161 mm)
