Brand:
ECCO
Origin: USA
Click for:

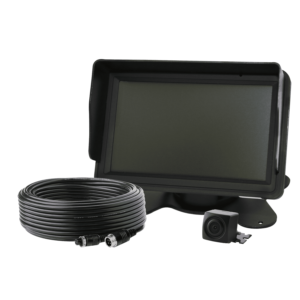

5″ LCD Color System
Comprising a feature-packed 5” LCD high-resolution screen color monitor and color camera, the EC5000B-K delivers excellent picture quality. The compact monitor allows for unobtrusive installation without compromising viewable screen area. System is expandable up to 3 cameras.
ECCO EC5000B-K Gemineye Camera System Features & Benefits ▲
- Non-commercial applications
- Camera offers 170º view
- Includes monitor sunshade
- Three camera expandable
ECCO EC5000B-K Gemineye Camera System Specifications ▲
| Components | EC5000B-M | EC2020-C |
| Approvals | FCC, CE, RoHS | IP69K, RoHS |
| Internal Controller | Yes | - |
| Color | Yes | Yes |
| Voltage | 12-24V DC | - |
| Power Consumption (W) | 2.6W | 2W |
| Day / Night Light Sensor | Yes | - |
| Dimensions | 5.2” x 3.5” x 2.0” inches | 0.9” x 0.9” x 0.9” inches |
| Weight | 0.8lbs | 0.11lbs |
| Temperature (Fº) | -4 to +158 | -22 to +158 |
| Screen Size | 5.0" inches | - |
| Remote Control | Yes | - |
| Sunshade | Yes | - |
| Lens Angle | - | 170º |
| Lens Size | - | 3/5” inches |
| Max Cameras | 3 | - |
| 4 Pin Camera Connection | Yes | Yes |
ECCO EC5000B-K Gemineye Camera System Specifications Flyer (PDF) ▲
Applications: On-road applications, long-haul trucks, light trucks, utility vehicles, delivery trucks, garbage trucks
