ECCO EC7000-QK Gemineye Camera System

ECCO EC7000-QK Gemineye Camera System

Brand: ECCO
Origin: USA


Click for:

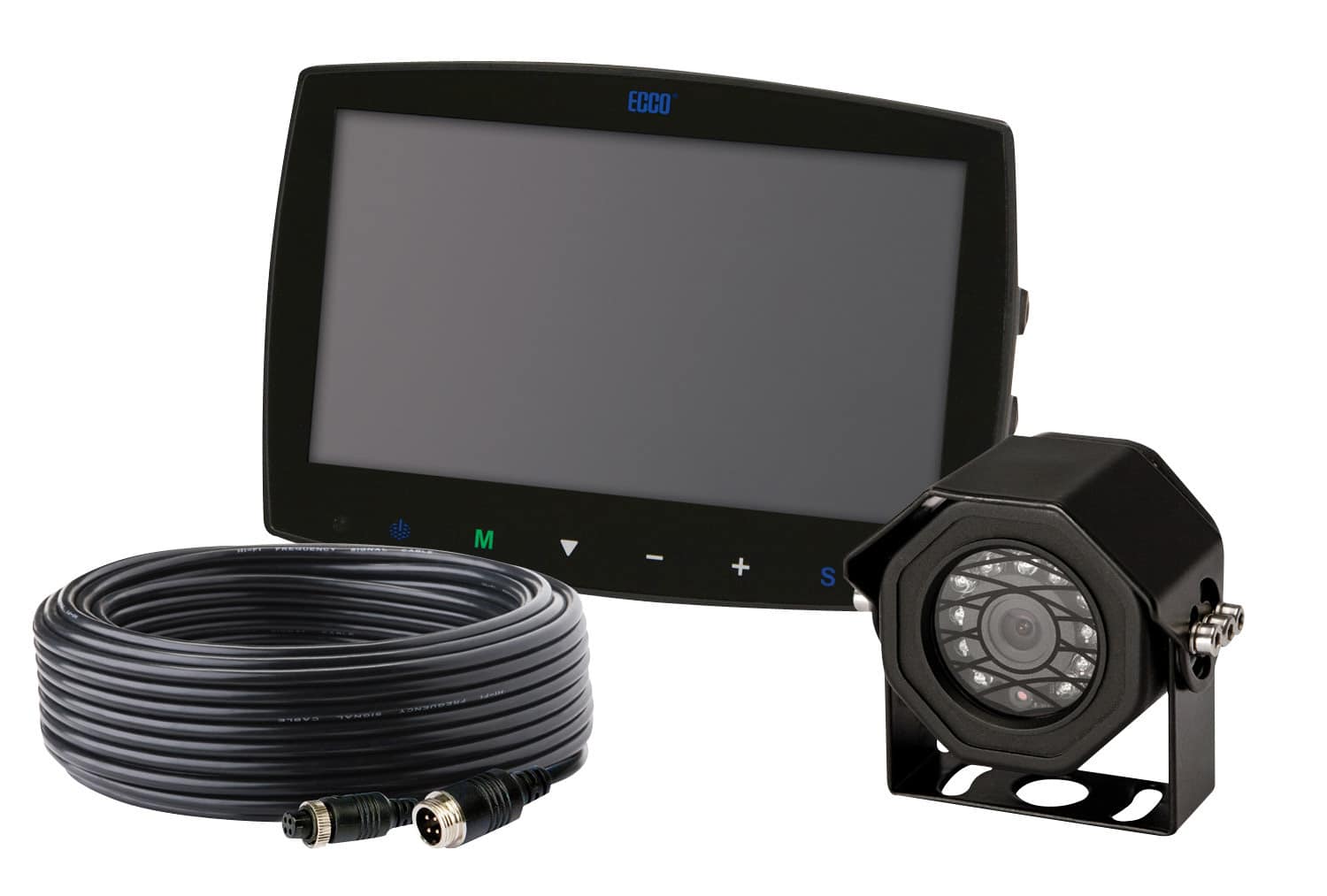

7″ Quad View LCD Colour System
The 7.0” (177.8mm) LCD high resolution colour monitor included with this kit provides the optimal viewing area for mobile CCTV applications. Excellent picture quality is assured even in low light conditions using ECCO’s standard color infrared camera. The flat, widescreen monitor allows unobtrusive mounting with a large, easily viewable screen area that allows for viewing up to 4 cameras simultaneously. Kit is expandable up to 4 cameras.

ECCO EC7000-QK Gemineye Camera System Features & Benefits

  • Quad view, split screen
  • CMOS 11 LED infrared camera
  • Four camera expandable

ECCO EC7000-QK Gemineye Camera System Specifications

ComponentsEC7000-QMEC2014-C
ApprovalsFCC, CE, RoHSIP69K, FCC, CE, R10, RoHS
Internal ControllerYesNo
ColorYesYes
Voltage12-24V DC-
Watts6.43
AudioYesNo
MicrophoneNoYes
Day / Night Light SensorYesYes
Dimensions8.4" x 6" x 2.8" inches2.87" x 2.99" x 2.60" inches
Weight3.3lbs0.74lbs
Temperature-22 to +158-22 to +158
Screen Size7.0"-
Lens Angle-120º
Lens Size-1/3"
Infrared LEDs-11
Mechanical Vibration-10G
Mirror ImageYes-
Remote ControlYes-
SunshadeYes-
Max Cameras4-
4 Pin Camera ConnectionYesYes
