Brand:
ECCO
Origin: USA
Click for:

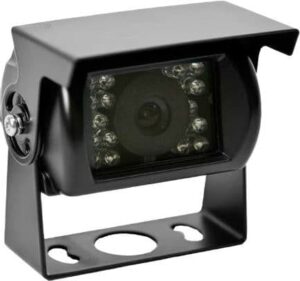

The 5” LCD high-resolution colour monitor included with this system provides the optimal viewing area for mobile CCTV applications. Excellent picture quality is assured even in low-light conditions using a CMOS colour infrared camera. The flat, widescreen monitor allows unobtrusive mounting with a large, easily viewable screen area. Expandable up to 3 cameras.
ECCO K5000B 5″ LCD Color Camera System Features & Benefits ▲
- CMOS 18 LED infrared camera
- Includes monitor sunshade
- Three camera expandable
- One year warranty
ECCO K5000B 5″ LCD Color Camera System Specifications ▲
ECCO K5000B 5″ LCD Color Camera System Monitor Specifications
| Screen Size | 5.0” (127mm) |
| Max Cameras | 3 |
| Voltage | 12-24V DC |
| Wattage | 2.6W |
| Colour | Yes |
| Internal Controller | Yes |
| Mirror Image | Yes |
| Sunshade | Yes |
| Operating Temp | -20°C to +70°C |
| Certifications | FCC, CE, RoHS |
| 4-pin Camera Connection | Yes |
| Day / Night Light Sensor | Yes |
| Weight | 0.79 (lbs) / 0.36 (kgs) |
| Dimensions (DxWxH) | 5.2x3.5x2" (132x89x51mm) |
ECCO K5000B 5″ LCD Color Camera System Camera Specifications
| Infrared LEDs | 18 |
| Mechanical Vibration | 8G |
| Wattage | 1.0W |
| Color | Yes |
| Lens Angle | 90° |
| Lens Size | 1/4” (6.35mm) |
| Operating Temp | -30°C to +70°C |
| Certifications | IP69K, FCC, CE, RoHS |
| 4-pin Camera Connection | Yes (threaded) |
| Day / Night Light Sensor | Yes |
| Weight | 0.6 (lbs) / 0.27 (kgs) |
| Dimensions (DxWxH) | 2.9x3x2.6"(74x76.5x66.5mm) |
ECCO K5000B 5″ LCD Color Camera System Specifications Flyer (PDF) ▲
Applications: Mobile CCTV, on-road applications, 4WDs, SUVs, light trucks, utility vehicles, delivery trucks, garbage trucks
