Marca:
Visión X
Origen: EE.UU.
Haga clic para:

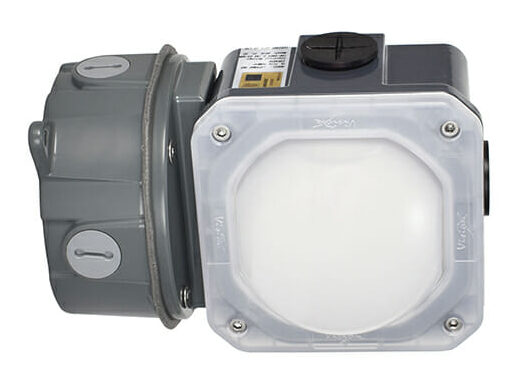

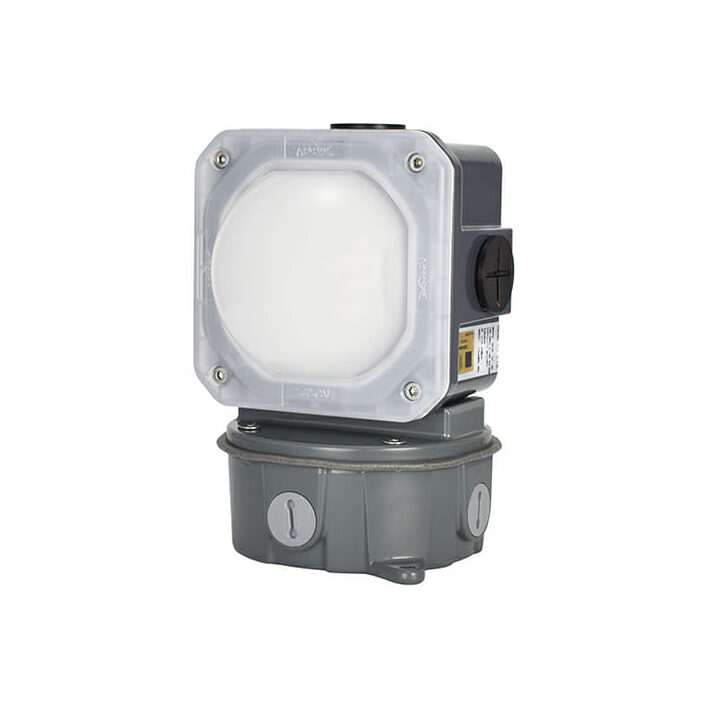

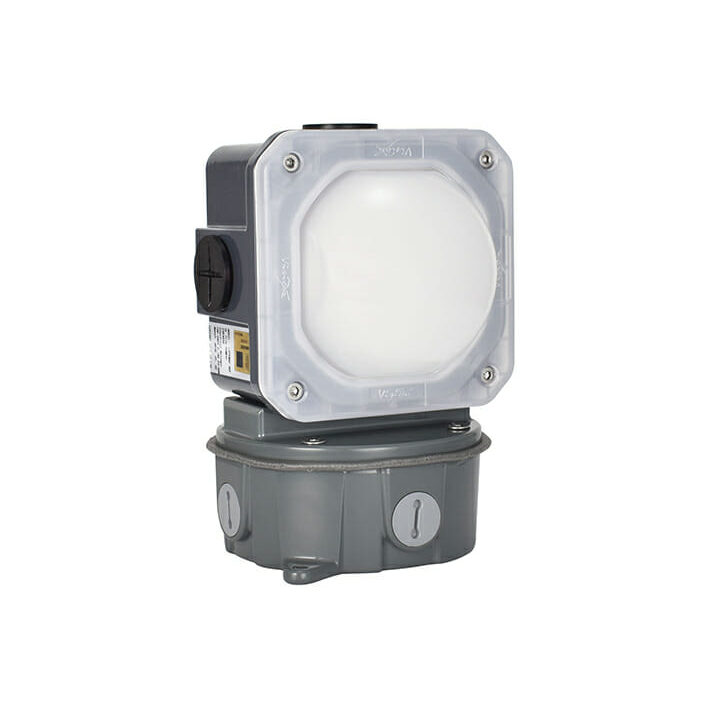

Direct bolt on over door and access panel lighting. Provides 200+ degree lighting other LED fixtures cannot match. Reduce unscheduled maintenance with robust mounts and guaranteed light operation. Optional colored covers for indicator lighting available in Red, Amber, Blue and Green. Industry leading LED light output, size, weight and reliability for reduced unscheduled maintenance.
Vision X Equipment & Over-door Lighting LSGSM40180PH Specifications ▲
| Tensión de funcionamiento | 90-264 V CA 127-370V DC |
| Lúmenes | 1000 Lu |
| Vatios | 10W |
| Patrón del haz | 180° |
| Temperatura de funcionamiento | -40°C ~ 60°C |
| THD | <20% (@load ≥ 50% / 115V AC, 230V AC) (@load ≥ 75% / 277V AC) |
| Factor de potencia | ≥ 0.98/115V AC ≥ 0.95/230V AC ≥ 0.92/277V AC |
| Cortocircuito | Limitación de corriente constante, se recupera automáticamente tras eliminar la condición de fallo |
| Frecuencia | 47-63 Hz |
| Vibración | 15.6Grms |
| Vivienda | Aluminio 6061 fundido a presión |
| Acabado | Gris brillante |
| Lente | Lente de policarbonato |
| Montaje/ Entradas | (4) 3/4” NPT - SIDES |
| Peso del envío | 1,8 kg |
| Peso del accesorio | 0,9 kg (2 libras) |
| LED | 5630 (LG) |
| Amperaje | 0.09A @ 115V AC 0.04A @ 230V AC 0,04A @ 277V AC |
| Vida útil | 50.000 h |
| Emisión CEM | Compliance to EN55022, EN61000-3-2, Class A, EN61000-3-3 |
| Inmunidad CEM | Conformidad con EN55024, EN61000-4-2,3,4,5,6,8,11; nivel industria ligera (sobretensión 2KV), criterios A |
| Protección contra la penetración | IP68, IP69K |
Vision X Equipment & Over-door Lighting LSGSM40180PH Specifications Flyer (PDF) ▲
Aplicaciones: Heavy Duty, Industrial, Mining, Construction, etc.
