Marca:
Visión X
Origen: EE.UU.
Haga clic para:

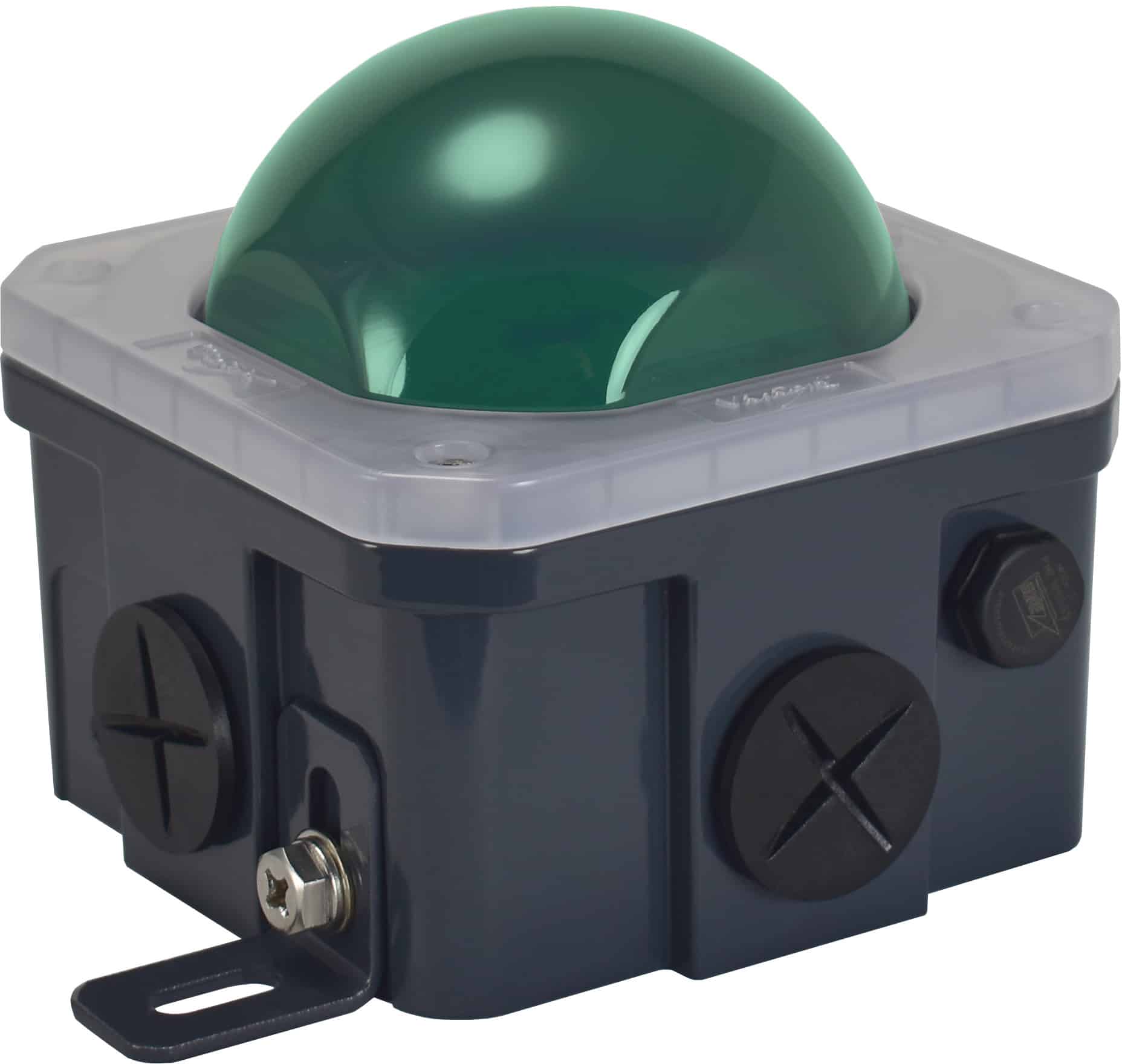

The all in one 10W junction box luminaire is small but powerful. This LED fixture also features pulse width modulation, electronic thermal management and a Failsafe redundant circuit design that allows the light to function even if half the light should fail in extreme conditions. The 180° ultra-wide flood beam pattern and intense green color leads temporarily visually impaired workers quickly to an eye wash station aiming to prevent permanent eye damage.
Vision X LSGM40 Series – Green Eye Wash Specifications ▲
| LED | 5630 (LG) X 40EA |
| Lúmenes | 1.000 lm |
| Patrón del haz | 180° Ultra-Wide Flood |
| Vatios | 10W |
| Amperaje | 0.09A @ 115V AC, 0.04A @ 230V AC, 0.04A @ 277V AC |
| Tensión de funcionamiento | 90-264V C.A., 127-370V C.C. |
| Temperatura de funcionamiento | -40°C ~ 60°C |
| Vida útil | 50.000 horas |
| Frecuencia | 47-63 Hz |
| THD | <20% (@load≥50% 115VAC,230VAC) (@load≥75% / 277VAC) |
| Factor de potencia | ≥ 0.98/115VAC, ≥ 0.95/230VAC, ≥ 0.92/277VAC |
| Cortocircuito | Limitación de corriente constante, se recupera automáticamente tras eliminar la condición de fallo |
| Polaridad | Protección contra polaridad inversa |
| Material de la carcasa | Aluminio 6061 fundido a presión |
| Acabado | Gris brillante |
| Lente | Policarbonato |
| Peso del accesorio | 2lbs (09kg) |
| Peso del envío | 1,8 kg |
| Montaje | (4 ) 3/4" NPT - LATERALES |
| Peso | 0,93 kg (2,05 lb) |
| Dimensiones (P, An, Al) | 3.94x4.4x4.4” (100x112x112mm) |
| Emisión CEM | Compliance to EN55022,EN61000-3-2 Class A ,EN61000-3-3 |
| Inmunidad CEM | Conformidad con EN55024, EN61000-4-2,3,4,5,6,8,11; nivel de industria ligera (sobretensión 2KV), criterios A |
| Protección contra la penetración | IP68, IP69K, UL1598A Marine: |
| Índice de vibración | 15.6Grms |
| Garantía | 5 años |
Aplicaciones: Eye-wash station, walkways, general lighting
Dimensiones:
Width: 4.41" (112 mm), Height: 3.94" (100 mm)
