ABL 1100 LED2000 Compact

ABL 1100 LED2000 Compact

Brand: ABL Lights
Origin: USA


Click for:

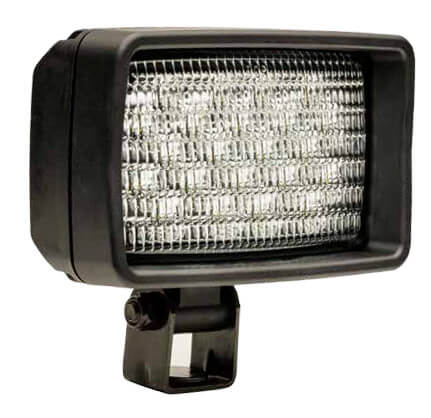

This work light is the 25W version of the new LED-powered 1100 series work lamps by ABL Lights.This lamp features a shock rating of 60G, a vibration rating of 15Grms @ 24-2000Hz, and high ingress protection rating of IP68 and IP69K. These lights have been sold worldwide by the millions, providing optimal light and best value for money.

These lights have been sold worldwide by the millions, providing optimal light and best value for money. The ABL 1100 family has firmly established itself as a standard work light for demanding applications.

The ABL 1100 LED2000 Compact  is a direct replacement for the ABL 1500 3×5 twin-beam halogen work lamp, which uses twin 55W or twin 70W H3 bulbs.

ABL 1100 LED2000 Compact Specifications

Light source22 LEDs
Colour Temperature6000°K
eLumens (effective)2000 Lu
rLumens (raw)2930Lu
Beam PatternFlood
Wattage25W
Current Draw1.04A @ 24V DC
Voltage12-24V DC multi
Operating Temperature-40°C to +85°C
Vibration Resistance15Grms @ 24-2000Hz
Shock Resistance60G
EMCISO 13766 - Earthmoving Equipment
ISO 14982 - Forestry/Agricultural
ISO 12985 - Handling Equipment
Load Dump36V continuous / 58V 100 ms / 1800V 50 μs
PolarityProtected against reverse voltage
ConnectionBuilt-in DT 2 ways
LensHardened glass
ReflectorFree form reflector
Electronic Thermal ManagementFull output @ +35°C ambiant
20% dimmed @ +50°C ambiant
IP RatingIP68, IP69K
Salt SprayISO 9227
MountingPedestal, suspended
Weight1.98 (lbs) / 0.9 (kgs)
Dimensions (DxWxH)2.79x6.18x3.74+" (71x157x95+mm)

ABL 1100 LED2000 Compact Specifications Flyer (PDF)


OEM parts cross reference numbers
Caterpillar
ABL 1130 Series 12V 55W Flood (1130-12F55): 105-8070, 205-9976, 242-3520, 242-3522
ABL 1130 Series 24V 70W Flood (1130-24F70): 112-9378, 117-3468, 135-5549, 164-5499, 242-3514, 242-3517, 242-3518, 242-3519

Case New Holland
ABL 1130 Series 12V 55W Flood (1130-12F55): 178345A1, 327300A1, 335942A1, BN324749
ABL 1500 Series 12V 55W Twin Flood (1500-12FT55): 431025A1


Applications: Heavy Equipment, Mining, Construction, Road and Utility Equipment, Forestry, Agriculture


Dimensions:
Width: 6.18" (157 mm), Height: 3.74+" (95+ mm), Depth: 2.79" (71 mm)

ABL 1100 LED2000 Compact Parts Enquiry

Part#
Description
Usually ships: 5D
Sell Qty: Each
Ship Weight: 1.98 (lbs) / 0.9 (kgs)
