ABL No Glare 1000 Lu LED Work Lamp

ABL No Glare 1000 Lu LED Work Lamp

Brand: ABL Lights
Origin: USA

Click for:

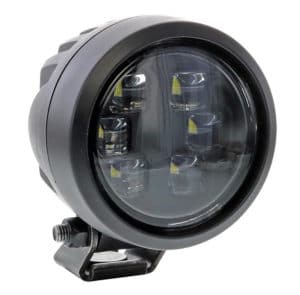

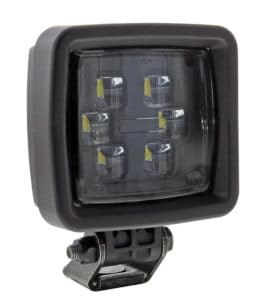

The ABL No Glare 1000 Lumen LED work light fixtures, which include both the SL1000NG square and RL1000NG round lights are suitable for light vehicles, forklifts and other material handling equipment where glare needs to safely reduced/eliminated for other oncoming vehicles and forklifts, as well as other workers/personnel and even pedestrians.

With standard work lamps, the light is spread out hitting not only the intended worksite but also the surroundings. The ABL No Glare optics pushes the light emitted from the fixture forward and down forming a cut-off line. This anti glare feature allows it to light up only where it’s needed, which increases the safety and comfort of drivers and workers around the worksite or warehouse. The perfect solution for your light machinery, fleet vehicles, work trucks, and material handling industries.

The SL1000NG and RL1000NG include features such as the EMC CISPR25 class 5 and integrated load dump. Built tough, having both IP68 and IP69K certification and 60G shock rating, this zero glare light meets the most severe of manufacturers’ specifications. Also suitable for OEM, and replacement of existing 24V 55W/70W halogen lights.

Standard Floods vs No Glare on a Light Vehicle (Simulation Only)

ABL No Glare 1000 Lu LED Work Lamp Features & Benefits

  • LED with ‘No Glare’ optical module
  • 1000 effective Lumens
  • Meets CISPR 25 Class 5 standards
  • Connector: DT 2 pin
  • Hardened glass Lens
  • IP68, IP69K ingress protection
  • 15 Grms @ 24-2000Hz vibration resistance
  • 60G shock rating
  • EMC: ISO 13766, ISO 14982, ISO 12985, CISPR25 Class 5

ABL No Glare 1000 Lu LED Work Lamp Specifications

Beam PatternNo Glare optics
Lumens1000 effective Lumens
Voltage12-24V DC
PolarityProtected against reverse voltage
Load Dump / Surge DumpSurge: 36V continuous / ISO 7637-2 Pulse 5a
Current0.58A @ 24V DC
ConnectorDT 2 pin
Vibration Resistance15 Grms @ 24-2000Hz
Shock Resistance60G
IP RatingIP68, IP69K
EMCISO 13766, ISO 14982, ISO 12985, CISPR25 Class 5
Salt Spray TestISO 9227
Operating Temperature-40°C to +85°C
Lens MaterialHardened glass, Plastics
MountingPedestal, suspended
Dimensions (DxWxH)2.24x4.0x3.82" inches (57x102x97mm)
Weight0.9 lbs (0.45kg)
Warranty4 Years

ABL No Glare 1000 Lu LED Work Lamp Specifications Flyer (PDF)

Applications: OEM, Light vehicles (LVs), utility vehicles, forklifts, material handling, construction, forestry, agriculture

Width: 4.0" (102 mm), Height: 3.82" (97 mm), Depth: 2.24" (57 mm)
