Brand:
ABL Lights
Origin: USA
Click for:

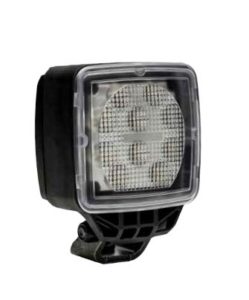

The ST2000 LED is a compact LED work light designed for high efficiency and durability. Built to last, these fixtures feature a 60G shock rating, 15 Grms @ 24-2000Hz, and an ingress protection rating of IP68 and IP69K – making it suitable for even the harshest operating conditions.
10 LEDs output an impressive 2000 Lumens for only 22W, and there are plenty of lens options available including: Amber glass, Amber plastic, red plastic, blue plastic, clear plastic and clear plastic cover lens.
ABL ST2000 LED Features & Benefits ▲
- Designed to exceed everyday demands in all applications
- Stringent engineering and testing practices
- Highest efficiency and durability in the harshest conditions
ABL ST2000 LED Specifications ▲
| Bulb | 10 LED - 2000 Lumen |
| Lifetime | 20,000 hours |
| Color Temperature | 6000°K |

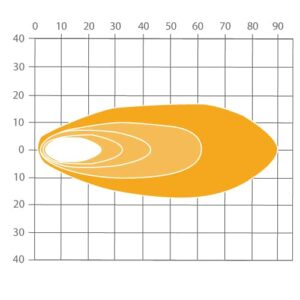

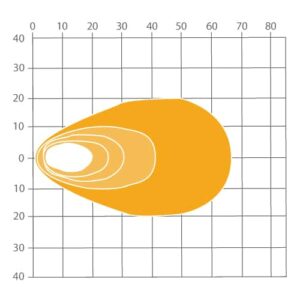

| Light Patterns | Hardened glass lens: Flood Asymmetrical, Flood, Long Range Plastic cover lens: Flood Asymmetrical, Flood Plastic lens: Flood |
| Consumption | 22W |
| Voltage | Multi 12-24V |
| Intensity | 0.92A @ 24V |
| Weight | 0.7kg |
| Vibration resistance | 15 Grms from 24 to 2000Hz |
| Shock resistance | 60G |
| EMC | ISO 13766, ISO 14982, ISO 12895, CISPR25 |
| Load Dump | 36V continuous 58V 160 ms 1800V 50 √s |
| Polarity | No Polarity |
| Electronic Thermal Management | Full output @ +35°C ambiant 20% dimmed @ +50°C ambiant |
| Water Tightness | IP68/69K |
| Operating Temperature | -40°C to +85°C |
| Salt Spray | ISO 9227 |
| Lens | Hardened glass, plastic cover lens, plastic lens |
| Lens Options | Amber glass lens, amber plastic, red plastic, blue plastic, clear plastic and clear plastic cover lens |
| Reflector | Free form reflector |
| Warranty | 20 000 operating hours or 5 years |
ABL ST2000 LED Specifications Flyer (PDF) ▲
Applications: Construction, mining, support vehicles, material handling, agriculture and forestry
