APS 3-sided Backlit Vehicle Identification Display (VID) with LEDs

APS 3-sided Backlit Vehicle Identification Display (VID) with LEDs

Brand: APS
Origin: US


APS 3-sided backlit VID with Whip and LEDsThis unique and innovative APS product features a 3-sided backlit Vehicle Identification Display (VID) with LEDs, making it suitable for 360 degree visibility on heavy and auxiliary equipment such as dozers and graders.

Customise it the way you want, as there are plenty of options to choose from such as: having an LED beacon or without an LED beacon, having a whip and flag or without a whip and flag, and you can also choose whether to have a powered or unpowered whip and flag.

Features & Benefits

  • Internal high performance LED illumination for nighttime visibility
  • Manufactured with 3M Diamond Grade Reflective for easy night visibility when equipment is off
  • Heavy-duty ultra-high density shell for water and weather resistance
  • Constructed with four heavy-duty magnets up to 600 (lbs) 272.16 (kgs) magnetic pull force
  • Up to 3 characters at 210.82mm (8.3 inch) height (additional characters available on request)

APS 3-sided Backlit Vehicle Identification Display (VID) with LEDs Specifications

Digits3, 4 characters
Character Height210.82mm (8.3 inch)
TechnologyLED Backlit
Reflective sign panels
Voltage12V DC, 24V DC upon request
Current Draw0.32A @ 12V DC
0.56A @ 24V DC
Wattage3.88W (12V DC)
13.34W (24V DC)
Weight20 (lbs) / 9.07 (kgs) (VID-LA4-SX and VID-LA4NP-SX)
6 (lbs) / 2.72 (kgs) (VID-SA4FA-SX) Lite Duty
Dimensions (DxWxLxH)28x28x28x17" (711.2x711.2x711.2x431.8mm) (VID-LA4-SX and VID-LA4NP-SX)
20x20x20x10" (508x508x508x254mm) (VID-SA4FA-SX) Lite Duty

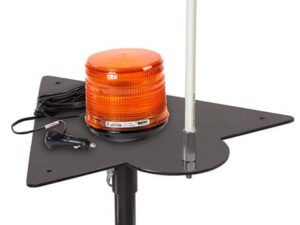

Universal Platform Mount System
Universal Platform Mount System

There are a few mounting options too, including the robust Universal Platform Mount System, which is a powder-coated steel surface, which holds the 3-sided VID via mounting bolts.



Pole Mounting Options

APS 3-sided backlit VID hitch options


UPMT
Toolbox/side wall
mount for vertical pole





APS 3-sided backlit VID hitch options


HMTD
For hitch
mounting





Specification Sheets


Applications: Mining, Construction


Dimensions:
Width: 28" (711.2 mm), Height: 17" (431.8 mm), Depth: 28" (711.2 mm), Length: 28" (711.2 mm)

Part#
Description
Usually ships: 5D
Sell Qty: Each
Ship Weight: 20 (lbs) / 9.07 (kgs)
Usually ships: 5D
Sell Qty: Each
Ship Weight: 20 (lbs) / 9.07 (kgs)
Usually ships: 5D
Sell Qty: Each
Ship Weight: 6 (lbs) / 2.72 (kgs)
Usually ships: 5D
Sell Qty: Each
Ship Weight: N/A
Usually ships: 5D
Sell Qty: Each
Ship Weight: N/A
Usually ships: 5D
Sell Qty: Each
Ship Weight: N/A
Usually ships: 5D
Sell Qty: Each
Ship Weight: N/A
Usually ships: 5D
Sell Qty: Each
Ship Weight: N/A
Usually ships: 5D
Sell Qty: Each
Ship Weight: N/A
Usually ships: 5D
Sell Qty: Each
Ship Weight: N/A
