The APS heavy-duty wheel chocks are manufactured with highly durable, lightweight polyurethane for ground vehicles and they feature a larger base that makes them ideal for use with heavy equipment such as haul trucks, loaders, and cranes.
APS Heavy-Duty Wheel Chocks Features & Benefits ▲
- Rated for vehicles with a gross operating weight up to 245,000 lbs., and tire sizes up to 65 in. diameter
- Tough urethane construction
- Resistant to oils, fuels, and solvents
- Meets MSHA specifications
- Recessed carrying handle
- Mounting hole for ropes, chains or brackets
- High visibility orange color

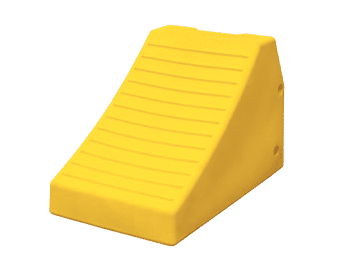

MC3011
- Lightweight with tough urethane construction
- Optional studs available for snow and ice
- Rated for vehicles with a gross operating weight up to 1,600,000 lbs., and tire sizes up to 165 in. diameter
- Maximum rated payload of 400 tons
- A minimum of four MC3011 wheel chocks must be used for gross vehicle operating weights from 855,000 – 1,600,000 lbs.
- Recessed carrying handle on the backside of the chock
- Replaceable rubber anti-slip traction pads
- Resistant to oils, fuels, and solvents
- Approved and being used by Caterpillar and mines worldwide
- Meets MSHA specifications
- Mounting hole for ropes, chains or brackets
- Safety yellow color
APS Heavy-Duty Wheel Chocks Specifications ▲
| Product | Description | Tire Size (OD) | Size (L x W x H) | Weight | Tire Diameters | Max Weight |
| MC3011 | Hi-Vis Yellow Wheel Chock | Up to 165" 400T (min 4 chocks) | 24.6" x 14.5" x 16" (62.5 x 36.9 x 40.7cm) | 32 lbs (14.5 kg) | 95" to 165" (241.3 cm to 419.1 cm) | 855,000 lbs. (387,821 kg) or for payloads up to 240 tons (217,724 kg) |
| CT1911 | Transport Cart for MC3011 Wheel Chocks | N/A | 11" x 24.5" x 47.5" (27.9 x 61.6 x 120.7cm) | 43 lbs (19.5 kg) | N/A | N/A |
| UC1210 | Hi-Vis Orange Wheel Chock | Up to 65" 70T | 15.5" x 8.5" x 8.25" (39.4 x 21.6 x 21cm) | 7.1 lbs (3.2kg) | 46" to 65" (116.8cm to 165.1cm) | 245,000 lbs. (111,130 kg) |
| MC1900 | Universal Dual Mounting Bracket (holds 2 chocks. Hardware not included) | N/A | 35.5" x 5.5" x 5" (90.2 x 14 x 12.7cm) | 8 lbs (3.6 kg) | N/A | N/A |
APS Heavy-Duty Wheel Chocks Specifications Flyer (PDF) ▲
Applications: Haul trucks, loaders, cranes and fleet vehicles
APS Heavy-Duty Wheel Chocks Parts Enquiry ▲
Hi-Vis Yellow Wheel Chock, Up to 165″ 400T (min 4 chocks) Tire Size (OD), 855,000 lbs (387,821 kg) or for payloads up to 240 tons (217,724 kg) Max Weight
Transport Cart for MC3011 Wheel Chocks
Hi-Vis Orange Wheel Chock, Up to 65″ 70T Tire Size (OD), 245,000 lbs (111,130 kg) Max Weight
Universal Dual Mounting Bracket (holds 2 chocks. Hardware not included)
