Brand:
APS Lighting & Safety
Origin: USA
Click for:

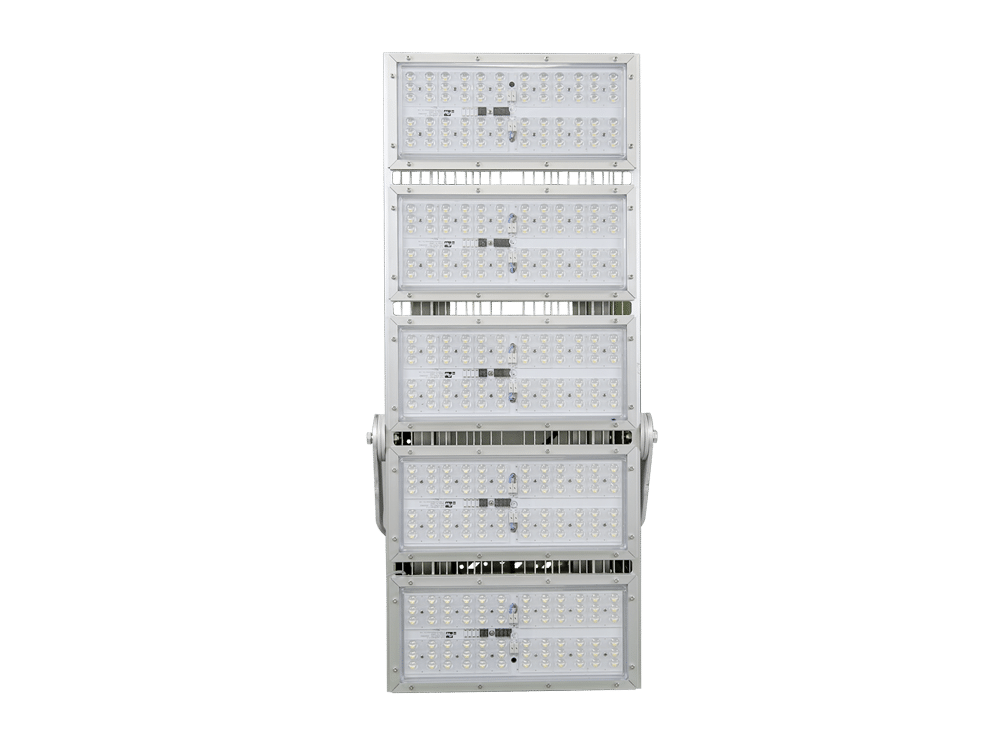

HL80 series modular LED high mast lights, combined with a variety of optical lenses, provide lighting solutions with high efficiency, energy saving and low maintenance rate, and provide stable and comfortable lighting effects for the lighting area, so that staff can focus more on work safety and improve work efficiency. It is mainly used for industrial lighting in ports, large-scale operation mines, airports, stadiums and other places.
APS HL80 Series LED High Mast Light Features & Benefits ▲
- High thermal conductivity aluminum extrusion molding heat sink, improve LED service life.
- Well-designed heat flow channels keep the luminaire excellent heat dissipation performance.
- Equipped with waterproof and breathable valve to balance the temperature and pressure inside and outside the lamp to protect the LED light source device.
- A variety of beam patterns / optical light distribution are available for more lighting options.
- Clear and visible illumination angle adjustment, suitable for lighting in a variety of different positions.
- Rated voltage: 100-240V AC; Frequency: 50/60Hz

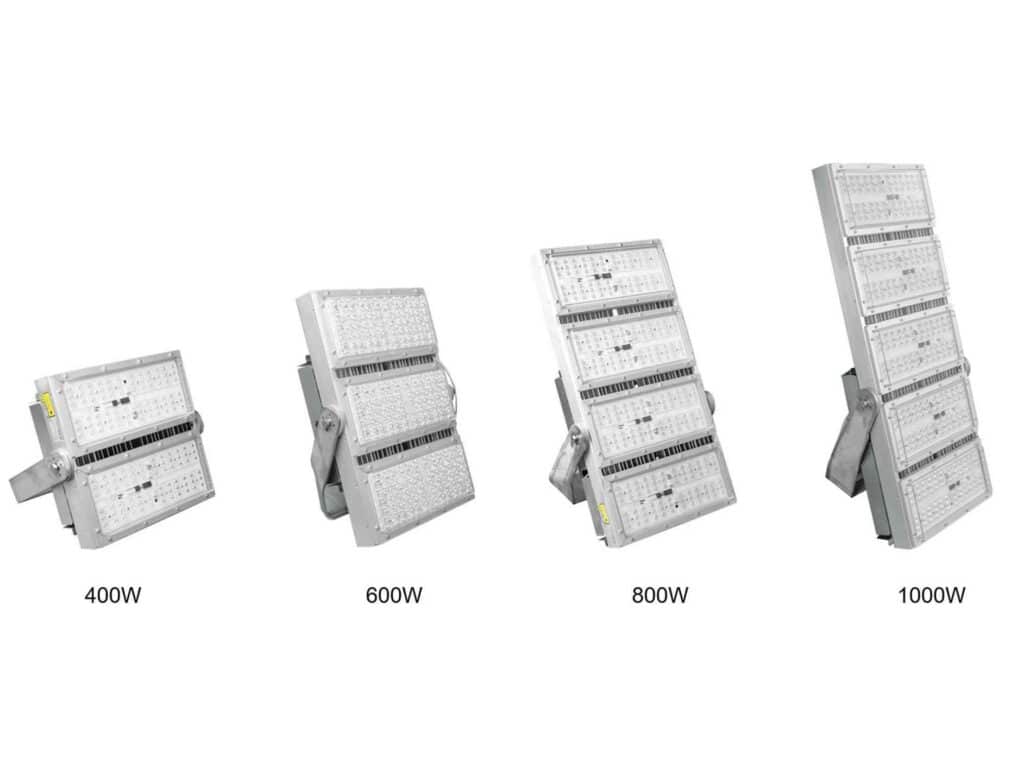

- Rated power: 400W, 600W, 800W, 1000W; IP Rate: IEC60529, IP67
- Optional light shield can be used to make the light interception effect of lamps better and effectively reduce glare.
APS HL80 Series LED High Mast Light Specifications ▲
| Light Source | LED |
| Color Temperature | Cold white: 5700K, Warm white: 2700K |
| CRI | Cold white: Ra≥70, Warm white: Ra≥80 |
| Luminous Efficacy | (30°/60°) Cold white: 150lm/W, Warm white: 125lm/W Asymmetric (20°×100°) Cold white: 140lm/W, Warm white: 120lm/W |
| Source Life | 50,000 hours |
| Beam Angle | 30° / 60° / Asymmetric 20°×100° |
| Rated Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Rated Power | 400W, 600W, 800W, 1000W |
| Power Factor | PF>0.9 |
| EMC | IEC61000-4-2 Contact discharge:8KV, Air discharge:15KV IEC61000-4-3 800~1000MHz 10V/m IEC61000-4-4 ±2KV IEC61000-4-5 DM:±6KV CM:±10KV[1] IEC61000-4-6 0.15~80MHz 10V/m EN55015 CLASS C |
| Wiring Method | Lead wire |
| Color | Silver white |
| Housing | Aluminum alloy |
| Cover | PC |
| Finish | Anodized |
| Weight | 12Kg, 17Kg, 22Kg, 28Kg |
| Mounting | Bracket |
| Ta | -40˚C ~ +50˚C |
| Vibration Level | ANSI C136.31, 1.5g |
| IP Rate | IEC60529, IP67 |
| Anti-corrosion | ISO12944, C5 M |
| CE | EN60598-1, EN60598-2-5, EN62493, EN62471, EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
| UL | UL1598, UL8750/CSA C22.2 NO250.0-08, CSA C22.2 No250.13 |
APS HL80 Series LED High Mast Light Part Numbers ▲
| Part No. | ① Voltage | ② Power | ③ Color Temperature | ④ Beam Angle | ⑤ Wire Method | ⑥ Mounting |
| HL80-①②③④⑤⑥ | A: 100-240V AC | 400: 400W 600: 600W 800: 400W 1000: 10000W | C: 5700K N: 4000K W: 2700K | M: 30° W: 60° R: 20°x100° | 1: Lead wire 2m | A: Bracket (U type / 6mm/hole spacing 90~150mm & 240~300mm/high 240mm) B: Bracket (stretch out / 6mm/hole spacing 80~180mm/high 257mm) C: Bracket (stretch out / 6mm/hole spacing 80~180mm/width 80mm) |
APS HL80 Series LED High Mast Light Specifications Flyer (PDF) ▲
- APS HL80 Series LED High Mast Light Specification Flyer
- Folleto de especificaciones de la luz LED de mástil alto APS Serie HL80
Applications: Large open areas, ports, wharfs, large-scale operation mines/mining site, high masts, airports, stadiums, workshops, warehouses, perimeter lighting, etc.
APS HL80 Series LED High Mast Light Parts Enquiry ▲
100-240V AC, 400W, 5700K, 30°, Lead wire 2m, Bracket (U type / 6mm/hole spacing 90~150mm & 240~300mm/high 240mm)
100-240V AC, 400W, 5700K, 60°, Lead wire 2m, Bracket (U type / 6mm/hole spacing 90~150mm & 240~300mm/high 240mm)
100-240V AC, 400W, 5700K, 20°×100°, Lead wire 2m, Bracket (U type / 6mm/hole spacing 90~150mm & 240~300mm/high 240mm)
100-240V AC, 600W, 5700K, 30°, Lead wire 2m Bracket (stretch out / 6mm/hole spacing 80~180mm/high 257mm)
100-240V AC, 600W, 5700K, 60°, Lead wire 2m Bracket (stretch out / 6mm/hole spacing 80~180mm/high 257mm)
100-240V AC, 600W, 5700K, 20°×100°, Lead wire 2m Bracket (stretch out / 6mm/hole spacing 80~180mm/high 257mm)
100-240V AC, 800W, 5700K, 30°, Lead wire 2m Bracket (stretch out / 6mm/hole spacing 80~180mm/width 80mm)
100-240V AC, 800W, 5700K, 20°×100°, Lead wire 2m Bracket (stretch out / 6mm/hole spacing 80~180mm/width 80mm)
100-240V AC, 800W, 5700K, 60°, Lead wire 2m Bracket (stretch out / 6mm/hole spacing 80~180mm/width 80mm)
100-240V AC, 1000W, 5700K, 30°, Lead wire 2m Bracket (stretch out / 6mm/hole spacing 80~180mm/width 80mm)
100-240V AC, 1000W, 5700K, 60°, Lead wire 2m Bracket (stretch out / 6mm/hole spacing 80~180mm/width 80mm)
100-240V AC, 1000W, 5700K, 20°×100°, Lead wire 2m Bracket (stretch out / 6mm/hole spacing 80~180mm/width 80mm)
