Brand:
APS Lighting & Safety
Origin: USA
Click for:
APS LF70ES series LED flood light is specially designed for the harsh environment application of Port, Mine site etc. Product has high luminous efficacy, C4 level anti-corrosion capacity and 5G anti-vibration ability.
APS LF70ES LED Flood Light Features & Benefits ▲

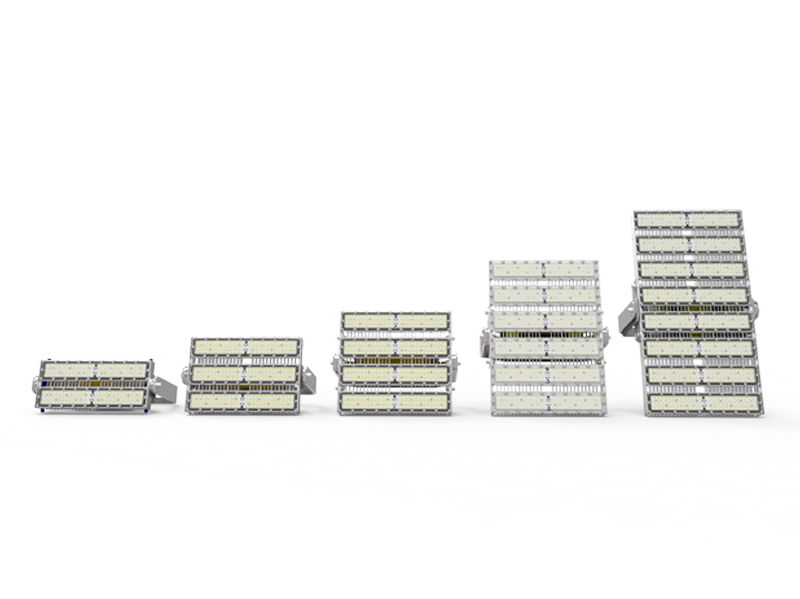

- Module design, flexible combination
- High efficient heat dissipation structure design
- Light-weight design, easy installation
- Series and parallel electric circuit design
- PWM/0-5V/0-10V/time control, dimming control are optional
- Certificates: E1496
APS LF70ES LED Flood Light Specifications ▲
| Input Voltage | 100-240V AC, 50-60Hz |
| Rated Power | 150W, 200W, 300W, 400W, 600W |
| Power Factor | >0.9 |
| Lightning Surge | IEC61000-4-5 2005±2KV |
| Electrostatic Discharge | IEC61000-4-2 2001± 6KV |
| LED Lifespan | 50,000 hours |
| Color Temperature | 5500-6000K, (2700 warm white option) |
| Light Efficiency | 140 Lu/W, (125 Lu/W white white option) |
| Beam Spread | 15°, 25°, 60° |
| IK Rate | IEC62262, IK08 |
| Vibration-resistant level | 5G (IEC60068-2-6) |
| IP Rating | IEC60529, IP67 |
| Salt Spray Rate | ISO9227 720H/ C5-M |
| Operating Temperature | -30°C to +60°C (overheat protection) |
| EMC | IEC61000-4-3 CLASS 3, IEC61000-4-4 CLASS 4, IEC61000-4-6 CLASS 3, EN55015 |
| Body Material | Aluminum Alloy |
| Cover Material | PC |
| Safety Wire Material | Stainless Steel |
| Body Colour | Silver |
| Weight | 4.0 Kg (75W), 5.0 Kg (150W), 8.5 Kg (200W), 11.5 Kg (300W), 15.0 Kg (400W), 21.0 Kg (600W) |
APS LF70ES LED Flood Light Specifications Flyer (PDF) ▲

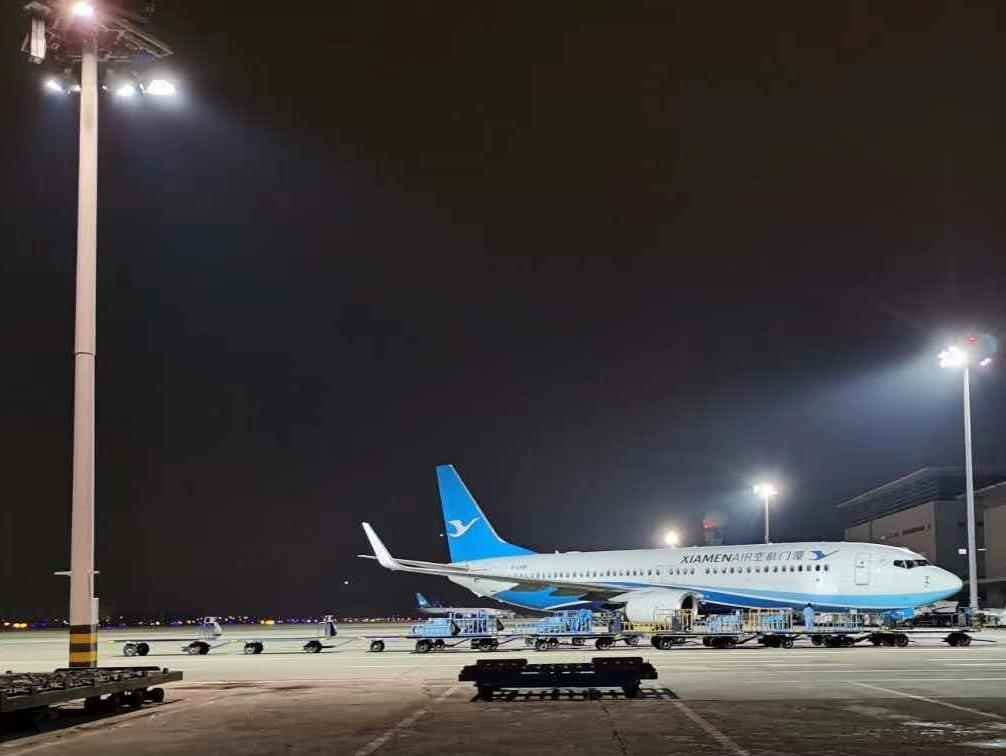

Applications: Airports, other port terminals, industrial, cranes, stadiums, high masts
APS LF70ES LED Flood Light Parts Enquiry ▲
LF70ES Series: 15° Beam, 100-240V AC, 84,000 Lu
LF70ES Series: 25° Beam, 100-240V AC, 84,000 Lu
LF70ES Series: 60° Beam, 100-240V AC, 84,000 Lu
LF70ES Series: 15° Beam, 100-240V AC, 56,000 Lu
LF70ES Series: 25° Beam, 100-240V AC, 56,000 Lu
LF70ES Series: 60° Beam, 100-240V AC, 56,000 Lu
LF70ES Series: 15° Beam, 100-240V AC, 45,000 Lu
LF70ES Series: 25° Beam, 100-240V AC, 45,000 Lu
LF70ES Series: 60° Beam, 100-240V AC, 45,000 Lu
LF70ES Series: 15° Beam, 100-240V AC, 28,000 Lu
LF70ES Series: 25° Beam, 100-240V AC, 28,000 Lu
LF70ES Series: 60° Beam, 100-240V AC, 28,000 Lu
LF70ES Series: 15° Beam, 100-240V AC, 21,000 Lu
LF70ES Series: 25° Beam, 100-240V AC, 21,000 Lu
LF70ES Series: 60° Beam, 100-240V AC, 21,000 Lu
