BAYCO XPR-5560G Intrinsically Safe Rechargeable Cap Lamp

BAYCO XPR-5560G Intrinsically Safe Rechargeable Cap Lamp

Brand: Bayco
Origin: USA


The XPR-5560G Rechargeable Intrinsically Safe Permissible Dual-Light™ Cap Lamp features a spotlight, a floodlight and a dual-light that is MSHA certified Intrinsically Safe Permissible. The spotlight setting offers 2 user-selectable brightness settings of 90 lumens on high mode and 45 lumens on low mode. The floodlight setting offers 90 lumens on high mode along with a “Survival Mode” of 5 lumens that provides just enough light in an emergency situation with a run-time of 170 hrs. The Dual-Light mode allows the user to turn on both the spotlight and the floodlight on simultaneously for maximum lighting versatility and user safety. The XPR-5560G is IP-67 rated dustproof/waterproof and is powered by an integrated rechargeable Lithium-ion battery.

Features and Benefits

  • LED technology
  • MSHA certified Intrinsically Safe Permissible
  • Spotlight / Floodlight / Dual-Light™
  • 2 User-selectable brightness settings on the spotlight
  • 2 User-selectable brightness settings on the floodlight including a 5 lumen “Survival” mode
  • Dual-light (both the spotlight & floodlight on at the same time) provides for maximum lighting versatility and user safety
  • Glass-filled nylon polymer housing with a 304 stainless steel bezel
  • Dual body switches
  • Heavy-duty stainless-steel clip
  • IP-67 Dustproof / Waterproof
  • Impact & chemical resistant
  • Integrated rechargeable Lithium-ion battery
  • Limited Lifetime Warranty

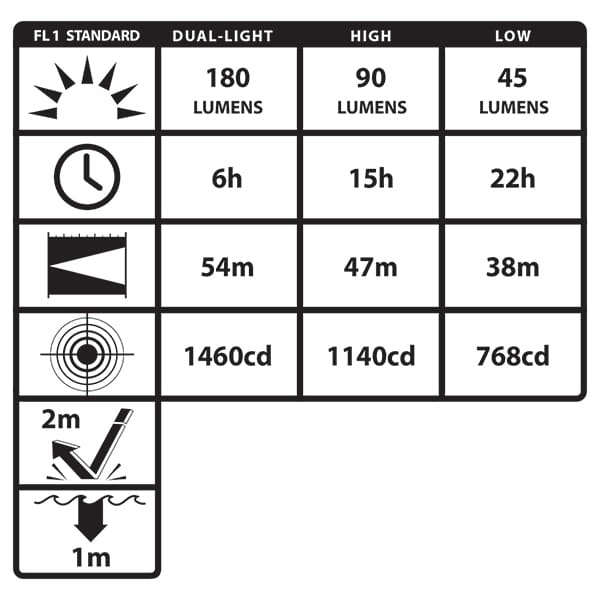

BAYCO Intrinsically Safe Rechargeable Cap Lamp Specifications

UPC17398805698
Dual-LightYes
Multi-FunctionYes
Spotlight Lumens90 / 45
Floodlight Lumens90 / 5
Dual-Light Lumens180 / 90
Beam Distance47m / 38m
Candela1,140 / 768
Drop Rating2m
Dust/Water RatingANSI IP67 Dustproof / Waterproof
Spotlight Runtime15 / 22
Floodlight Runtime15 / 170
Dual-Light Runtime6 / 14
Floodlight ColorWhite
Type of FloodlightSolid
Switch FunctionDual-body switches - Spotlight (High/Low), Floodlight (High/Low), Dual-light
Length3.46in (88 mm)
Width1.35in (34 mm)
Depth2.43in (62 mm)
Weight6.0 oz (170g)
Head Diameter2.53in (60 mm)
Light SourceLED
Case MaterialGlass-filled nylon polymer
Body ColorGreen / Black
Quantity of Batteries1
Power SourceIntegrated Rechargeable Lithium-ion Battery
Package ContentsCap Lamp, Charger, AC & DC Power Supplies
WarrantyLimited Lifetime
CertificationsIP67, BC, CE, MSHA, Pennsylvania Department of Environmental Protection

Specification Sheet

BAYCO Intrinsically Safe Rechargeable Cap Lamp Specification Sheet


Applications: Industrial safety, mining, emergency services


Dimensions:
Width: 1.35" (34 mm), Depth: 2.43" (62 mm), Length: 3.46" (88 mm)
