ECCO 12+ Series Vantage SAE Class I LED Lightbar

ECCO 12+ Series Vantage SAE Class I LED Lightbar

Brand: ECCO
Origin: USA




ECCO 12+ Series Vantage SAE Class I LED Lightbar
The 12+ Series lightbars are versatile and powerful warning devices suitable for a range of vehicle types and duties, and with numerous options and lengths available.

These lightbars can either be mounted permanently to the vehicle or mounted using an optional roof mounting kit. The 12+ Series features a durable aluminum chassis, polycarbonate base and lens and has a sleek, low profile, suitable for many vehicle applications.

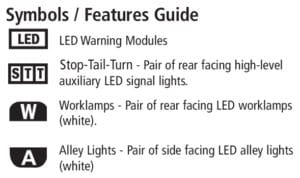

The 12+ Series supports three different kinds of LED modules: Warning modules, Stop-Tail-Turn modules, and white Alley/Takedown/Worklight modules.

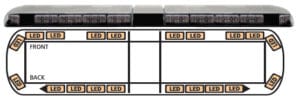

ECCO 12+ Series Vantage LED Lightbar - Model 12-20601-E

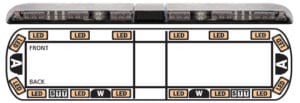

ECCO 12+ Series Vantage LED Lightbar - Model 12-20005-E

Features & Benefits

  • Optional Integrated Safety Director (must be configured)
  • ICE Optics offer brighter appearance for better visibility
  • 48 Standard bar flash patterns and 11 Safety Director flash patterns
  • Color options: Amber, Blue, Green, Red, White, Amber/White, Amber/Blue, Red/White, Blue/White, Amber/Red, Red/Blue
  • Six module options – Wide Angle or Focused Warning, Stop-Tail-Turn, Worklamp, Alley Light and Take-Down Light
  • Four length options – 48”, 54”, 60”and 72”
  • Seven standard chassis configurations
  • Customizable configurations available with 2-3 day lead time

ECCO 12+ Series Vantage SAE Class I LED Lightbar Specifications

Lights10 - 20 LED lights (depending on model)
Module TypesLED lights, Work lights, Alley lights, Stop Tail Turn lights
ColoursAmber, Blue, Green, Red, White, Amber/White, Amber/Blue,
Red/White, Blue/White, Amber/Red, Red/Blue
Flash Patterns48 Standard bar flash patterns
Additional Flash Patterns11 Safety Director flash patterns
Compliances and CetificationsSAE Class I, California Title 13, CE, R10

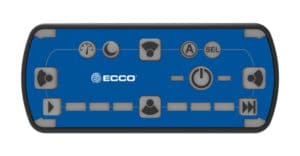

Controller OptionsIn-Cab Controller with Safety Director Functions (EZ1202)
Operating Temperature-22°F to +122°F (-30°C to +50°C)
Height2.5" (6.35cm)
Width11" (27.94cm)
Lengths48" (1.22m), 54" (1.37m), 60" (1.52m) and 72" (1.83m)
Warranty3 Years

ECCO 12+ Series Vantage SAE Class I LED Lightbar Sizes

Part No.LengthVoltageAmpsLights

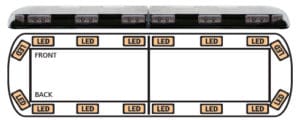

12-20001-E48" (1.22m)12-24V DC7.2A @ 12V DC16 x LEDs

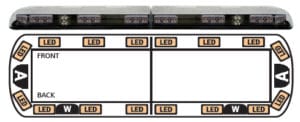

12-20004-E48" (1.22m)12-24V DC10.8A @ 12V DC16 x LEDs, 2 x white worklights,
2 x white alley lights

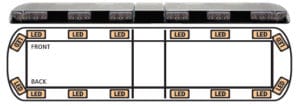

12-20002-E54" (1.37m)12-24V DC7.2A @ 12V DC16 x LEDs
12-20005-E54" (1.37m)12-24V DC11.0A @ 12V DC16 x LEDs, 2 x white worklights,
2 x white alley lights,
2 x stop tail turn lights

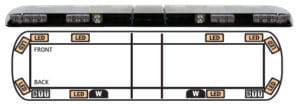

12-20007-E54" (1.37m)12-24V DC6.5A @ 12V DC10 x LEDs, 2 x white worklights,
2 x stop tail turn lights
12-20601-E54" (1.37m)12-24V DC10.0A @ 12V DC20 x LEDs

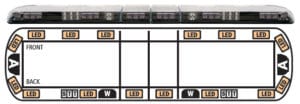

12-20006-E60" (1.52m)12-24V DC11.0A @ 12V DC16 x LEDs, 2 x white worklights,
2 x white alley lights,
2 x stop tail turn lights

Specification Sheets


Applications: Service and utility trucks, emergency vehicles, construction vehicles, forestry vehicles
