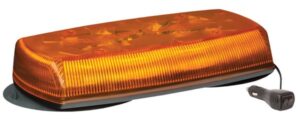

ECCO 5580 Series SAE Class II LED Minibar

ECCO 5580 Series SAE Class II LED Minibar

Brand: ECCO
Origin: USA


ECCO LED minibars provide a compact yet powerful warning solution that offers the flexibility of either permanent or vacuum-magnet mounting. Featuring 12-24 VDC operation, ECCO uses high intensity LED and reflective technology to maximize light output. The permanent mount model offers users the choice of 18 user selectable flash patterns.

Features and Benefits

  • 3.5A @ 12V DC
  • Eight LED reflector modules, each comprising three LEDs provide high intensity light output
  • Compact, low profile minibar available in permanent or vacuum-magnet mount
  • Polycarbonate base & low profile lens
  • Vacuum-magnet versions feature two factory fitted vacuum-magnets and 15’ straight cigarette cord with switched plug. Vacuum-magnet versions feature quad flash pattern only.
  • Low amp draw and a long, maintenance-free service life
  • SAE J845 Class II, CE, e
  • Temperature Range: -22°F to +122°F (-30°C to +50°C)
  • Warranty: 3 years

Models

PART NO.DOME COLORILLUMINATIONVOLTAGEAMPSMOUNT
5580AAmberAmber12-243.5Permanent
5580CAClearAmber12-243.5Permanent
5580A-VMAmberAmber12-243.5Vacuum-Magnet
5580CA-VMClearAmber12-243.5Vacuum-Magnet



Flash Pattern Options

1 Quad10 Double, Alternate Side-to-Side
2 Double11 Double, Diagonal Alternate
3 Fast Double12 Quint-hold, Alternate Side-to-Side
4 Slow Quad13 Quint-hold, Diagonal Alternate
5 Slow Double14 Fast Rotate
6 Quint-hold15 Rotate / Quad
7 Burst16 Wave Rotate
8 Quad, Alternate Side-to-Side17 Random
9 Quad, Diagonal Alternate18 Steady On

Specification Sheets

Part#
Description
Usually ships: 1-2W
Sell Qty: Each
Ship Weight: 5 lbs
Usually ships: 1-2W
Sell Qty: Each
Ship Weight: 5.2 lbs
Usually ships: 1-2W
Sell Qty: Each
Ship Weight: N/A
Usually ships: 1-2W
Sell Qty: Each
Ship Weight: 5.2 lbs
