Brand:
ECCO
Origin: USA
Click for:
SAE Class I LED

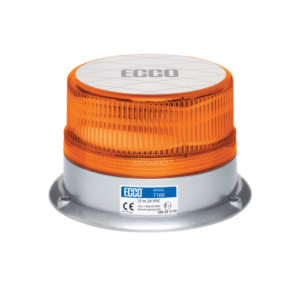

The 7160 Series Reflex® LED beacon provides the ultimate level of power, versatility and style available in an LED beacon.
ECCO 7160 Reflex Series Features & Benefits ▲
- High intensity LEDs and reflector technology produce an SAE Class I/Cal Title 13 warning signal
- 23 flash patterns and hi/lo intensity control
- Synchronisation capability and plus simulated rotate
- Low amp draw, zero maintenance and an extended life backed by a 5 year warranty
- Vacuum-Magnet models have 381mm straight cigarette cord with switched plug
ECCO 7160 Reflex Series Video ▲
ECCO 7160 Reflex Series Specifications ▲
| Voltage | 12-24V DC |
| Amps | 2.0A @ 12V DC |
| Flash Pattern | 23 |
| Mount | 3 Bolt Flange/1" Pipe or Vacuum Magnet |

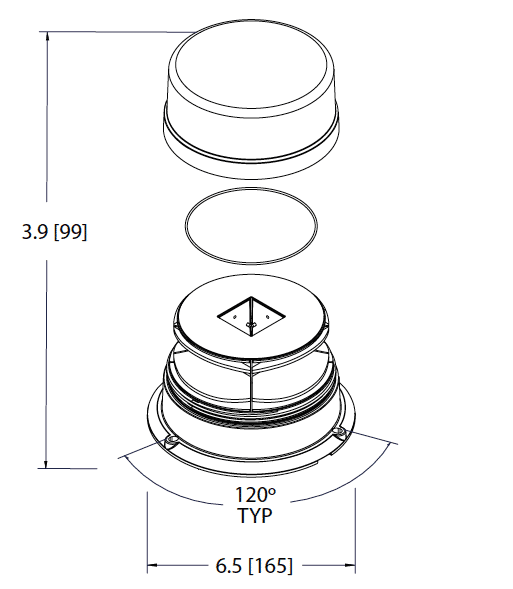

| Dimensions (W x H) | 6.5 x 3.9" inches (165 x 99mm) |
| Approval | SAE J845 Class I, CAL. Title 13, CE, R10, IP66, ROHS |
| Warranty | 5 Years |
Flash Patterns
| • Steady Burn • Title 13 Single (A) • Title 13 Single (B) • Title 13 Double (A) • Title 13 Double (B) • Title 13 Quad (A) • Title 13 Quad (B) • Double (A) • Double (B) • Fast Double (A) • Fast Double (B) | • Quad (A) • Quad (B) • Quint Hold (A) • Quint Hold (B) • Burst (A) • Burst (B) • Slow Rotate • Fast Rotate • Wave Rotate • Rotate/Quad • Ramp Up/Down • Random |
ECCO 7160 Reflex Series Videos Specifications Flyer (PDF) ▲
ECCO 7160 Reflex Series Parts Enquiry ▲
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Amber Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Blue Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Green Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Red Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear/Amber Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear/Blue Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear/Clear Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear/Green Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear/Red Lens, 3 Bolt Flange/1″ Pipe Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Amber Lens, Vacuum Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Blue Lens, Vacuum Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear Lens, Vacuum Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Green Lens, Vacuum Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Red Lens, Vacuum Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear/Red Lens, Vacuum Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear/Green Lens, Vacuum Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Clear/Clear Lens, Vacuum Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Blue/Clear Lens, Vacuum Mount
ECCO 7160 Reflex Series: 12-24V DC, 2.0A @ 12V DC, Amber/Clear Lens, Vacuum Mount
