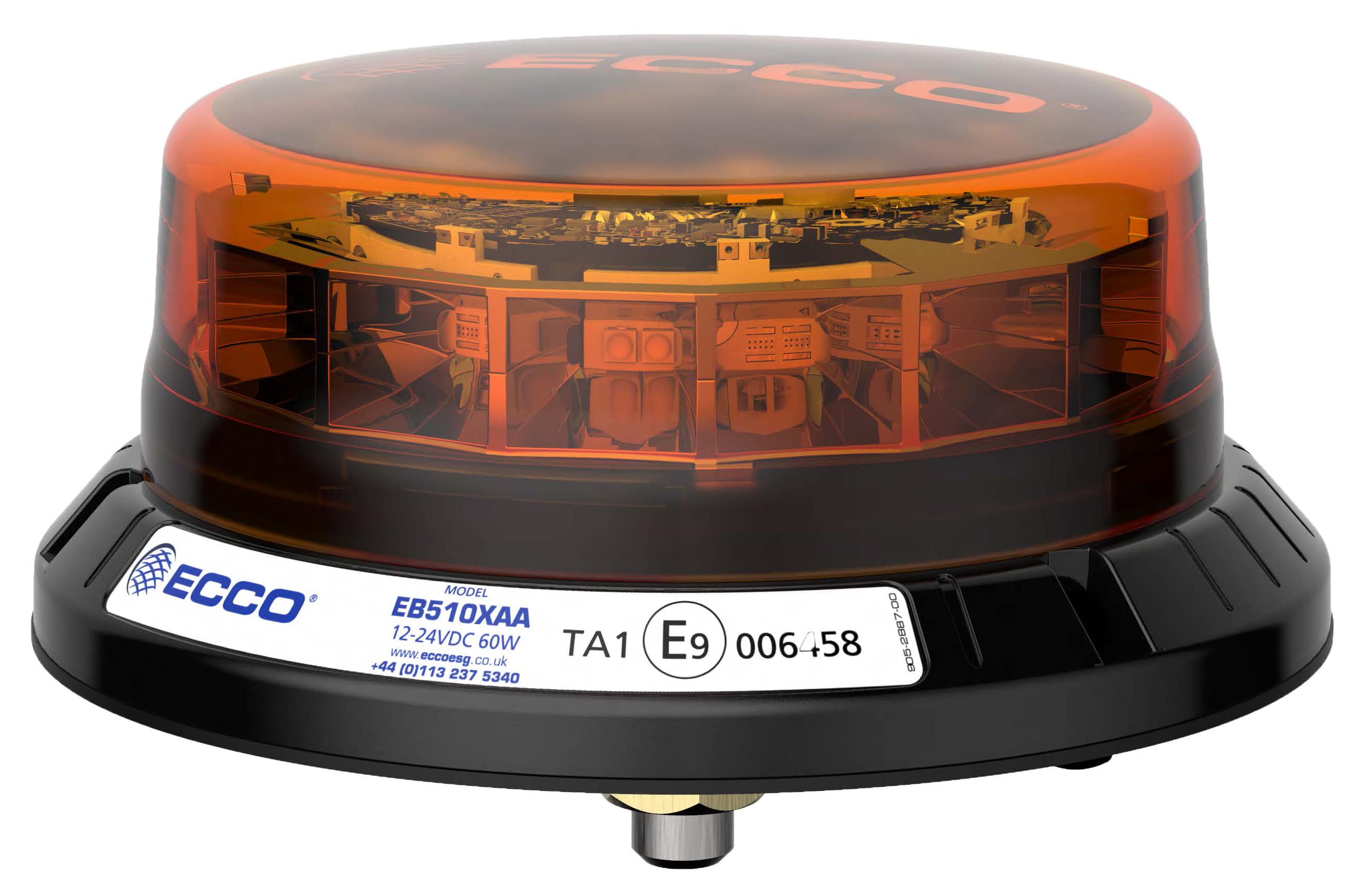

ECCO EB5100 Series Low-profile LED Beacon

ECCO EB5100 Series Low-profile LED Beacon

Brand: ECCO
Origin: USA


Click for:

Low Profile LED Beacon

The Low Profile R65 Beacon utilises powerful LEDs, arranged to produce a 360° flash pattern by combining the solid-state, maintenance free long-life nature of LED technology. With additional features including multiple flash patterns, synchronisation and vigorous testing to the ECCO standard and OEM specifications.
EB5100 Series Low-profile LED Beacon application

This high-performance range has improved EMC performance to CISPR 25 level 3, is robust and compact in a popular housing design and is available in four standard mounting options. This range is designed to maximise resilience to excessive vibration, increasing the life of the product and is backed by our five-year no-hassle warranty. Beacons with Amber LEDs (Amber or Clear lens) produce a simulated rotate that is R65 Class 1 compliant.


ECCO EB5100 Series Low-profile LED Beacon Features & Benefits

  • Ultra compact, low profile beacon at only 63mm tall
  • Protect your sensitive electronics with CISPR 25 level 3
  • Be seen with the highest SAE Class I brightness
  • 12 flash patterns including simulated rotation

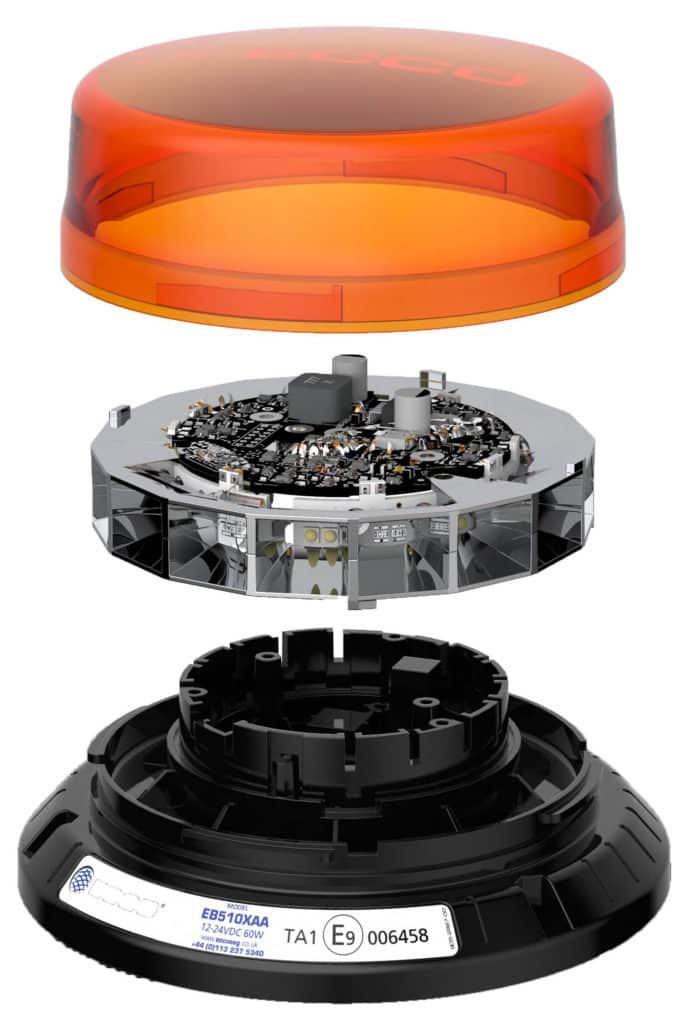

  • Built tough with an aluminium base and reinforced polycarbonate lens

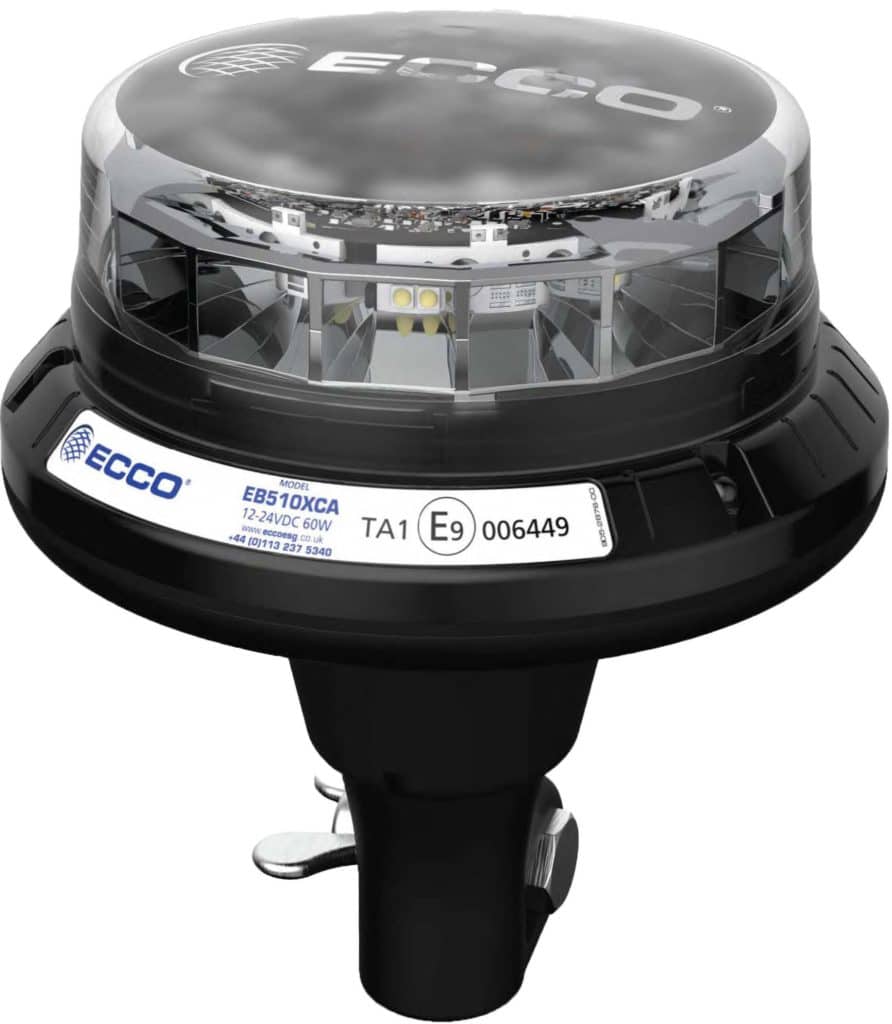

  • Four mounting options available (Single, 3 bolt, DIN pole, and magnetic)
  • Great choice for your light vehicles in construction and mining, municipal fleet, utility, and service trucks



ECCO EB5100 Series Low-profile LED Beacon Video



ECCO EB5100 Series Low-profile LED Beacon Specifications

Voltage10-32V DC
Flash Pattern12
MountSingle, 3 Bolt, DIN Pole or Magnetic Mount
Dimensions (W x H x L)5.9 x 2.83 x 5.9” inches (149  x 72 x 149 mm)
ApprovalsR65, R10, CISPR25, IP69K
Warranty5 Years

ECCO EB5100 Series Low-profile LED Beacon Part Numbers

Part No.MountLensLED Color
EB5101XXSingle BoltAmber or ClearAmber or Green
EB5102XX3 BoltAmber or ClearAmber or Green
EB5103XXDIN PoleAmber or ClearAmber or Green
EB5104XXMagnetic MountAmber or ClearAmber or Green

*Replace ‘XX’ in Part Number with desired color lens (A = Amber, C = Clear) then colour LED (A = Amber, G = Green)

ECCO EB5100 Series Low-profile LED Beacon Specifications Flyer (PDF)


Applications: Light vehicles in construction and mining, municipal fleet, utility, and service trucks.


Dimensions:
Width: 5.9" (149 mm), Height: 2.83" (72 mm), Length: 149" (5.9 mm)
