ECCO EB7260 Series LED Beacon

ECCO EB7260 Series LED Beacon

Brand: ECCO
Origin: USA


SAE Class I or II LED Beacon

ECCO’s EB7260 Series LED Beacon produces a warning signal that is ideal for industrial applications. The long, maintenance-free service life of LED technology, backed by a 3-year warranty, makes this a perfect replacement solution for existing strobe beacons. This cost-effective, SAE Class II light features 12-24V operating range that also makes it ideal for use on electrically powered vehicles and equipment.

The long, maintenance-free service life of LED technology, backed by a 3-year warranty, makes this a perfect replacement solution for existing strobe beacons. The EB7260 Series features a compact design and multiple flash patterns, dual-color options, is available in 3-bolt or pole mount, and can sync with other ECCO directionals and the 5550 Reflex minibar.

Features and Benefits

  • SAE Class I or II LED
  • IP67, R10 ratings
  • Economical-style beacon with several flash pattern options
  • Removable flange assembly for easy pipe-mount configuration
  • Flash Mode:
    – Single: 75 – 120
    – Double: 75
  • Reinforced polycarbonate flange and lens
  • Temperature Range: -22°F to +122°F (-30°C to +50°C)

Models

PART NO. VOLTAGE AMPS FLASH PATTERNS FPM MOUNT

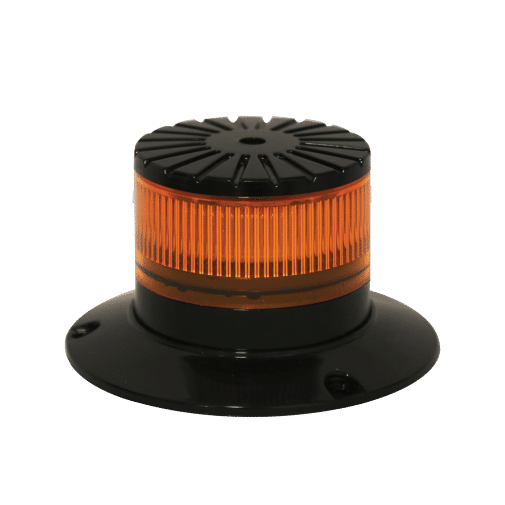

EB7265A 12-24 1.72 41 75 – 120 Flange / Pipe-Mount

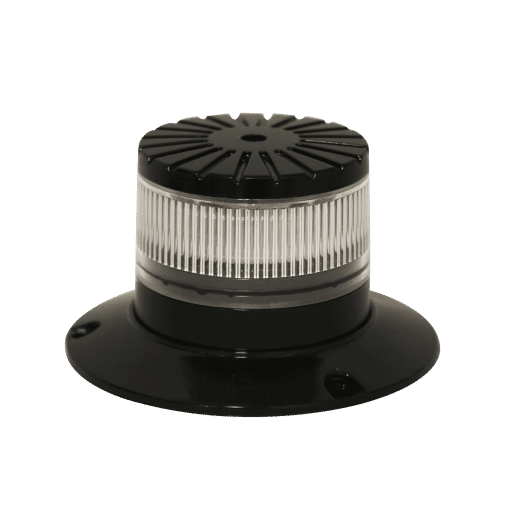

EB7265C 12-24 1.4 41 75 – 120 Flange / Pipe-Mount
EB7265CX 12-24 1.4 41 75 – 120 Flange / Pipe-Mount
EB7265CXX 12-24 1.4 96 75 – 120 Flange / Pipe-Mount

Replace X in part number with desired colour: A=amber, B=blue, G=green, R=red
Replace XX in part number with desired colour: AB=amber/blue, AC=amber/white, AG=amber/green, AR=amber/red

ECCO EB7260 Series LED Beacon Specifications

Voltage12-24V DC
Amps1.7A (EB7265A)
1.4A (EB7265C, EB7465CX, EB7265CXX)
Flash Patterns41 (EB7265A, EB7265C, EB7265CX)
96 (EB7265CXX)
FPMSingle: 75 - 120
Double: 75
MountFlange / Pipe-Mount
Temperature Range-22°F to +122°F (-30°C to +50°C)
ApprovalsSAE Class I, R10, IP67
Warranty3 Years

Specification Sheets


Applications: Industrial applications, material handling, municipalities, and UTV/ATV/motorcyle patrol units


Dimensions:
Width: 3.2" (81 mm), Height: 2.8" (72 mm)
