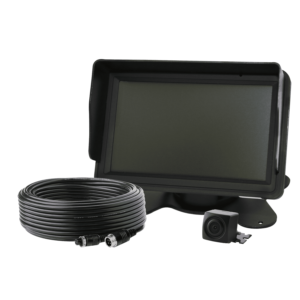

ECCO EC5000B-K Gemineye Camera System

ECCO EC5000B-K Gemineye Camera System

Brand: ECCO
Origin: USA


5″ LCD Color System

Comprising a feature-packed 5” LCD high-resolution screen color monitor and color camera, the EC5000B-K delivers excellent picture quality. The compact monitor allows for unobtrusive installation without compromising viewable screen area. System is expandable up to 3 cameras.

Features and Benefits

  • Non-commercial applications
  • Camera offers 170º view
  • Includes monitor sunshade
  • Three camera expandable

ECCO EC5000B-K Gemineye Specifications

ComponentsEC5000B-MEC2020-C
ApprovalsFCC, CE, RoHSIP69K, RoHS
Internal ControllerYes-
ColorYesYes
Voltage12-24V DC-
Power Consumption (W)2.6W2W
Day / Night Light SensorYes-
Dimensions5.2” x 3.5” x 2.0” inches0.9” x 0.9” x 0.9” inches
Weight0.8lbs0.11lbs
Temperature (Fº)-4 to +158-22 to +158
Screen Size5.0" inches-
Remote ControlYes-
SunshadeYes-
Lens Angle-170º
Lens Size- 3/5” inches
Max Cameras3-
4 Pin Camera ConnectionYesYes

Specification Sheets


Applications: On-road applications, long-haul trucks, light trucks, utility vehicles, delivery trucks, garbage trucks
