Brand:
ECCO
Origin: US
Click for:
ECCO wireless camera system utilises ECCO’s unique monitor and camera design. Comprising a feature-packed 5.6” LCD high-resolution touch screen colour monitor and CMOS colour infrared camera, the EC5605-WK delivers excellent picture quality even in low-light conditions. The compact monitor allows for unobtrusive installation without compromising viewable screen area. This colour wireless system is expandable up to 4 cameras.
ECCO EC5605-WK LCD Colour Wireless System Features & Benefits ▲
- 2.4 GHz digital wireless system
- Touchscreen menu control
- Internal controller
- CMOS infrared 11 LED camera
- Includes monitor sunshade
- Includes anti-glare screen protector
- Four camera expandable
- One year warranty
ECCO EC5605-WK LCD Colour Wireless System Specifications ▲
Monitor Specifications – (Model: EC5605-WM)
5.6” colour monitor featuring audio, day/night light sensor, remote control and sunshade. Expandable up to four cameras. 12-24 VDC operation with R10, E13, FCC, CE, RoHS, and C-Tick approvals.
| Product | 5.6” Digital TFT - LCE Color, 2.4 GHz Wireless |
| Colour | Yes |
| Voltage | 12-24V |
| Power Consumption | 5W |
| Draw | 0.42A @ 12V DC |
| Resolution | 800 x 3 (RGB) x 480 |
| Contrast | 20.8340277778 |
| Brightness | 400cd/m2 |
| Operation Freq. | 2400-2483.5MHz |
| Receiving Sensitivity | -78dBm |
| Video Codec | MPEG4 |
| RF Band Width | 5MHz |
| Frame Rate | NTSC: 30f/s PAL: 25f/s |
| Output Power | 18dbM |
| Spread Spectrum | FHSS |
| Hopping Rate | 1200/S |
| Delay | 200ms |
| RF Bit Rate | 6Mbps |
| Audio Output | 1.5W |
| Speaker | Yes |
| Day / night light sensor | Yes |
| Mirror image | Yes |

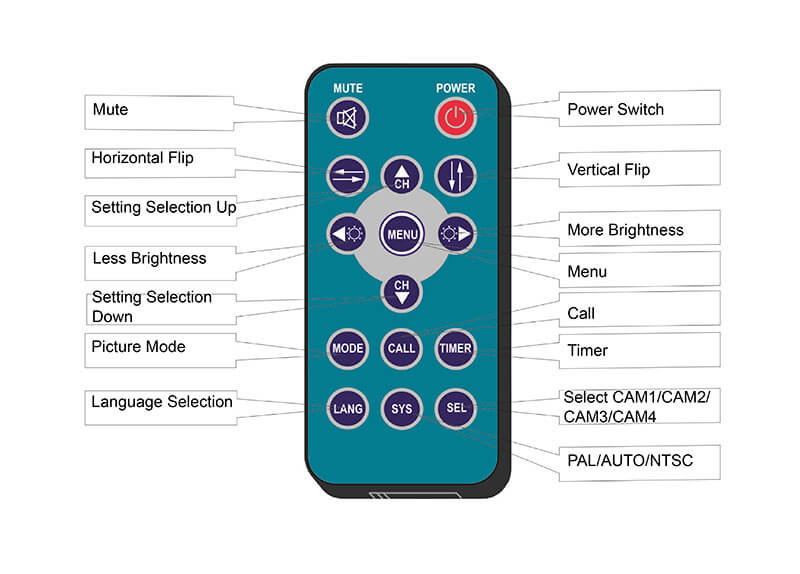

| Remote control | Yes |
| Sunshade | Yes |
| Max cameras | 4 |
| Operating Temperature | -20°C to +70°C |
| Rating | ECE R10, E13, FCC, CE, RoHS, C-TICK |
| Dimensions (W, H, D) | 6.32” (160.5mm) x 4.51” (114.6mm) x 1.06” (27mm) |
| Weight | 2.87 lbs (1.3 kg) |
Camera Specifications – (Model: EC2014-WC)
Includes a day/night sensor, microphone, and 11 infrared LEDs. Features 12-24 VDC operation with a 10G mechanical vibration rating and IP69K, R10, FCC, CE, RoHS, and C-Tick approvals.
| Image Device | 1/3” CMOS |
| Ingress Protection | IP69K |
| Night Vision | 11 IR LEDs, Max 10M Distance |
| TV System | NTSC / PAL |
| Effective Pixels | 728 x 488 |
| Sensing Area | 4.6228mm x 3.6112mm |
| Sync. System | Internal |
| Horizontal Resolution | 500TV Lines |
| Mini. Illumination | -0LUX / F2.0 |
| Video Output | 1.0VP-P, 750OHM |
| S/N Ratio | Better Than 48dB |
| White Balance | Auto |
| Electronic Shutter | NTSC: 1/60 ~ 1/100K seconds PAL: 1/50 ~ 1/100K seconds |
| Power Consumption | 0.25W |
| Temperature | --28.88°C to +70°C |
| Lens | f-2.8mm / F=2.0, 120° |
| Voltage | 12-24V |
| Microphone | Yes |
| Day / night light sensor | Yes |
| Mechanical vibration | 10G |
| Rating | IP69K, ECE R10, FCC, CE, RoHS, C-Tick |
| Dimensions (W, H, D) | 2.87” (72.9mm) x 2.99” (75.95mm) x 2.98” (75.7mm) |
| Weight | 0.89 lbs (0.4 kg) |
ECCO EC5605-WK LCD Colour Wireless System Specifications Flyer (PDF) ▲
Applications: On-road applications, long-haul trucks, light trucks, utility vehicles, delivery trucks, garbage trucks
