ECCO EC7008-WK Gemineye Camera System

ECCO EC7008-WK Gemineye Camera System

Brand: ECCO
Origin: USA


7″ Quad View LCD Color Wireless System

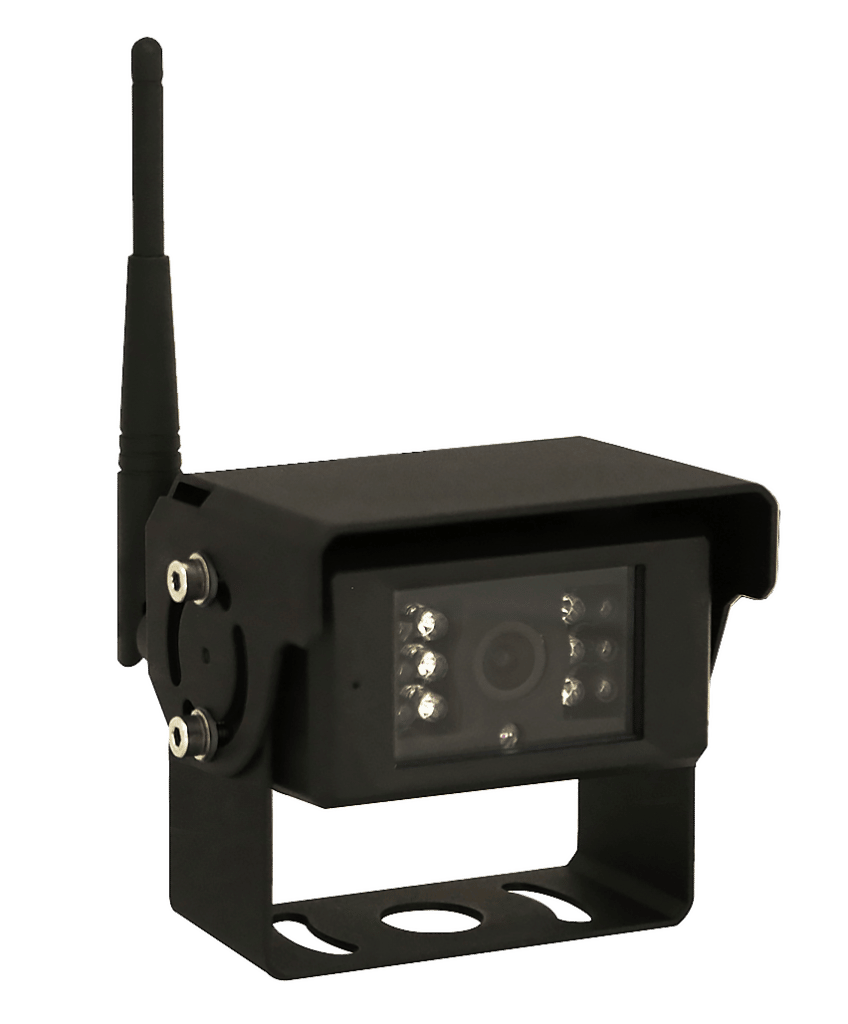

ECCO quad view wireless camera system utilizes ECCO’s unique monitor and camera design. Comprising a feature-packed 7” LCD high-resolution touch screen color monitor and CMOS color infrared camera, the EC7008-WK delivers excellent picture quality even in lowlight conditions. The compact monitor allows for unobtrusive installation without compromising viewable screen area. System is expandable up to 4 cameras. SD Card enabled for recordability.

Features and Benefits

  • 2.4 GHz digital wireless system
  • Touchscreen menu control
  • Password protected
  • Password protection capable
  • CMOS 11 LED infrared camera
  • Includes monitor sunshade
  • Four camera expandable

ECCO EC7008-WK Gemineye Monitor Specifications

ApprovalsFCC, CE, R10, RCM, RoHS
Internal ControllerYes
ColorYes
Voltage12-24V DC
Power Consumption6.4W
AudioYes
Day / Night light SensorYes
Dimensions8.4” x 6.0” x 2.8” inches
Weight3.3 lbs
Temperature (F°)-4 to +158
Quad ViewYes
Screen Size7" inches
Mirror ImageYes
Remote ControlYes
SunshadeYes
Max Cameras4

ECCO EC7008-WK Gemineye Camera Specifications

ApprovalsFCC, CE, R10, RoHS, IP69K
ColorYes
Power Consumption1.7W
MicrophoneYes
Day / Night light SensorYes
Dimensions3.8” x 2.8” x 2.6” inches
Weight1.0 lbs
Temperature (F°)-4 to +158
Lens Angle120°
Lens Size1/3” inches
Infrared LEDs12
Mechanical Vibration10G

ECCO EC7008-WK Gemineye Camera System Specifications

Expandable camera4
CMOS LEDs11
Warranty1 Year
ApprovalsFCC, CE, R10, RCM, ROHS, IP69K (camera only)

Specification Sheets

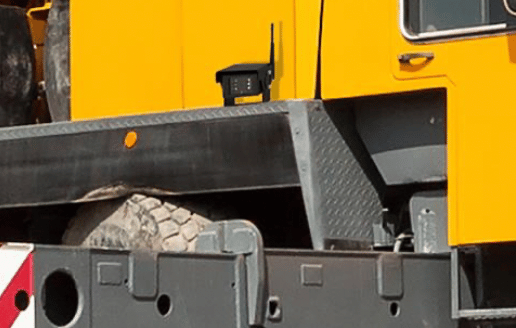

Applications: Mobile CCTV, on-road applications, 4WDs, SUVs, light trucks, utility vehicles, delivery trucks, garbage trucks
