ECCO ED3777 Series

ECCO ED3777 Series

Brand: ECCO
Origin: USA


SAE Class I, 180° intersection LED

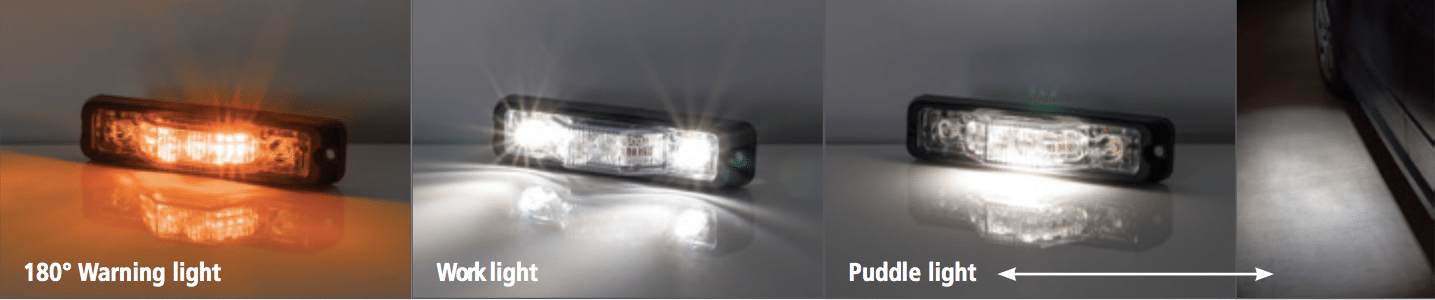

The ED3777 directional LEDs are bright and versatile 180 degree warning lights, with work light and puddle light combinations that are suited to a wide variety of applications. Their low profile, narrow shape, and multiple mounting options (surface, edge, self adhesive and permanent) provide superior flexibility when positioning the lights for optimum warning capability. Both models offer multiple flash patterns and multiple units can be synchronised to operate either simultaneously or alternately with each other.

ECCO ED3777 Series – Features and Benefits

  • Six warning LEDs per colour
  • 13 flash patterns Synchronisable
  • Aluminium housing, polycarbonate lens

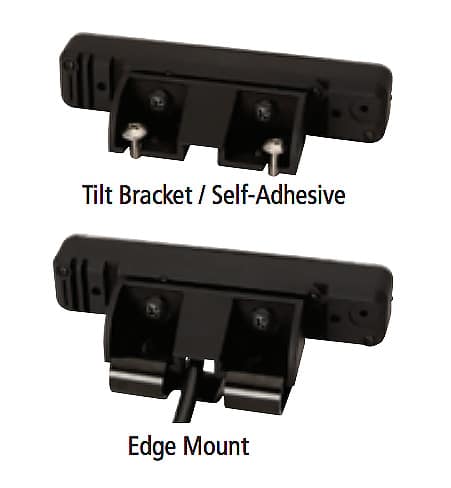

  • Four mounting options (hardware included)
  • SAE J595 Class I
  • California Title 13, R65, CE, R10, IP67
  • Temperature Range: -30ºC to +50ºC (-22ºF to +122ºF)
  • Warranty: 3 years

Flash Patterns (13): Single, Fast Single, Double, Fast Double, Triple, Quad, Fast Quad, Quint, Steady Single, Steady Burn, Modulation, 2 Double / 2 Triple / Alt, 4 Single / 2 Quad / Alt

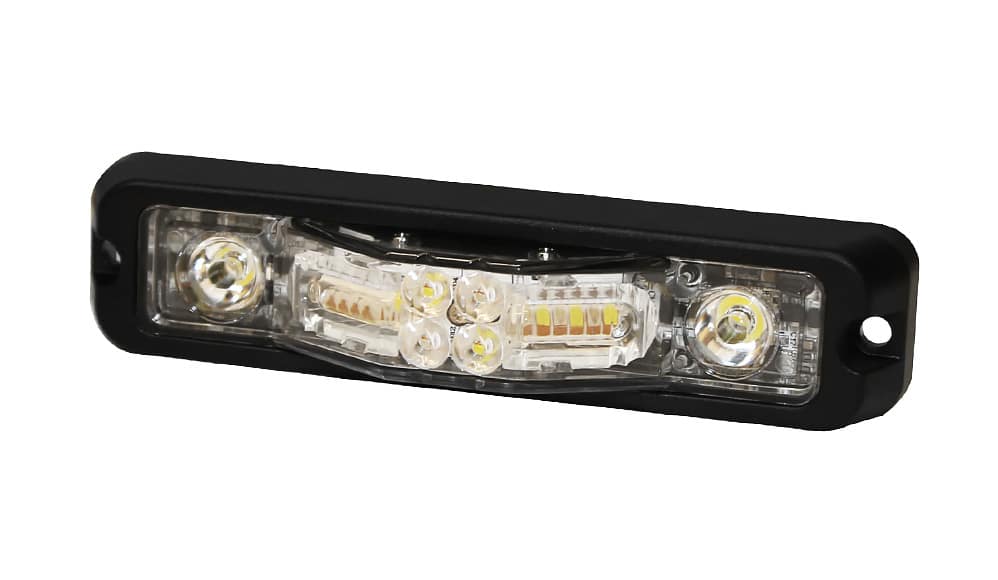

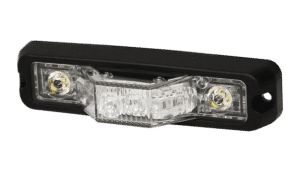

ED3777 Series Directional Light



ECCO ED3777 Series – Specifications

ColoursAmber, Amber/Green, Amber/White
Voltage12-24V DC
Wattage15.6W
Flash Patterns13
Amps1.3A @ 12V DC (ED3777A)
1.4A @ 12V DC (ED3777AG, ED3777AW)
Standards CompliancesSAE J595 Class I, R10, R65 (dual colour only)
Ingress Protection IP67
Temperature Range-30ºC to +50ºC (-22ºF to +122ºF)
HousingAluminium housing/base, polycarbonate lens
Mount4 mounting options (hardware included)
Dimensions (DxWxH)0.83x5.1x1.14" (21x130x29mm)
Weight0.3 lbs (0.14kg)
Warranty3 Years



ECCO ED3777 Series – Specifications Sheet


Applications: Trucks, tow trucks, refuse/garbage trucks, cargo vans, construction & utility vehicles

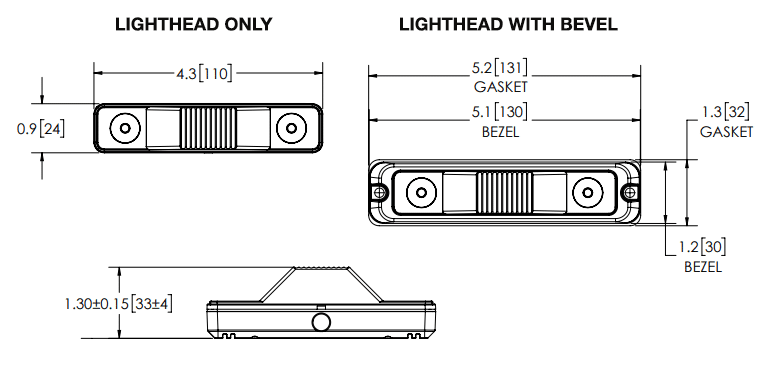

Dimensions:
Width: 5.1" (130 mm), Height: 1.14" (29 mm), Depth: 0.83" (21 mm)

Part#
Description
Usually ships: 5D
Sell Qty: Each
Ship Weight: 0.3 lbs (0.14kg)
Usually ships: 5D
Sell Qty: Each
Ship Weight: 0.3 lbs (0.14kg)
Usually ships: 5D
Sell Qty: Each
Ship Weight: 0.3 lbs (0.14kg)
