ECCO ED3802 Series

ECCO ED3802 Series

Brand: ECCO
Origin: USA


Click for:

SAE Class I Solid, Single- or Dual-Colour Surface Mount

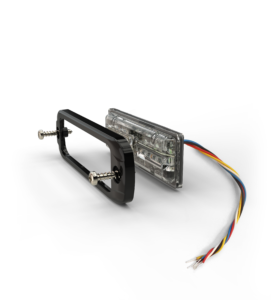

ED3802 directional LEDs are bright and versatile warning lights suited to a wide variety of applications. Their ultra-low profile makes them easy to install virtually anywhere on a vehicle and are 25% thinner than previous models. All models offer wide angle optics and multiple flash patterns, including synchronisation with other units for simultaneous or alternating operation. Each LED colour can be controlled independently.

ECCO ED3802 Series Features & Benefits

  • 12-24V DC
  • 25% thinner than previous models
  • High-intensity LEDs provide exceptional warning
  • Ultra low-profile surface mount
  • Able to synchronise with other directionals
  • Die-cast base with polycarbonate lens
  • Temperature Range: -22ºF to +122ºF (-30ºC to +50ºC)

ECCO ED3802 Series Specifications

Voltage12-24V DC
Amps0.73A
Directional Type12 LEDs
Flash Pattern69
MountSurface
ApprovalR65, R10, IP67, IP69
Temperature Range-22ºF to +122ºF (-30ºC to +50ºC)
Warranty5 Years

ECCO ED3702 Series Specifications Flyer (PDF)


Applications: Emergency vehicles, utility, commercial, construction vehicles, etc.

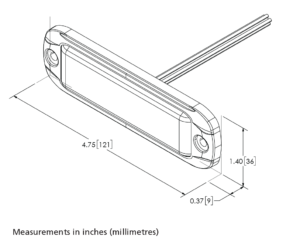

Dimensions:
Width: 4.75" (121 mm), Height: 1.40" (36 mm), Depth: 0.37" (9 mm)

ECCO ED3802 Series Parts Enquiry

Part#
Description
Usually ships: 5D
Sell Qty: Each
Ship Weight: N/A
Usually ships: 5D
Sell Qty: Each
Ship Weight: N/A
