ECCO EW3000/3001 LED Remote Spotlight

ECCO EW3000/3001 LED Remote Spotlight

Brand: ECCO
Origin: USA


This product has been replaced. We have limited stocks left, so please don’t hesitate to contact us via the Parts form below if you require this product.
Manufacturer recommended replacement is: EW3010/3011 Series.

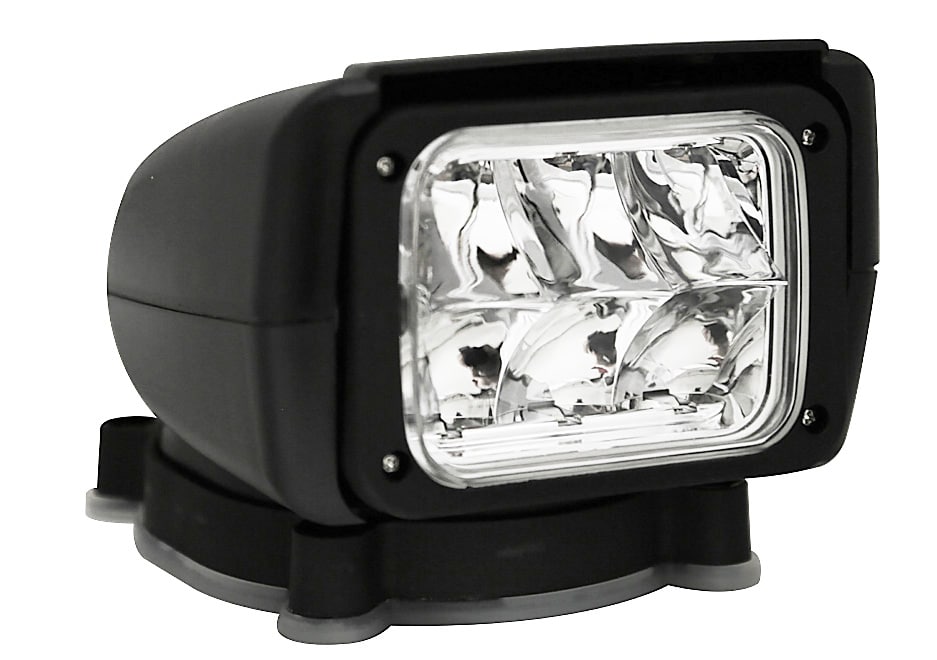

ECCO’s EW3000/3001 Remote Spotlights are multifunctional, motorized searchlights featuring a 12-24V DC operation. Both spotlights can be installed wirelessly and are protected by a polycarbonate lens and the housings are available in black or white. The EW3000/3001 offers 350° rotation and a 90° tilt range, with patent pending reflective optics. ASA resin housing makes the EW3000/3001 corrosion, UV and impact resistant.

Features and Benefits

  • 1,970ft (600m) beam distance
  • 350° rotation, 90° tilt range
  • Permanent or magnet mount available
  • Aluminum heatsink light head
  • Polycarbonate housing

Videos

ECCO EW3000/3001 Specifications

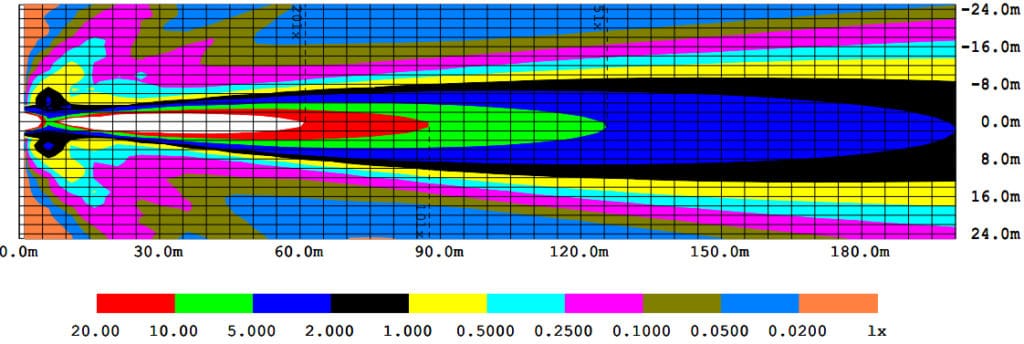

BeamSpot

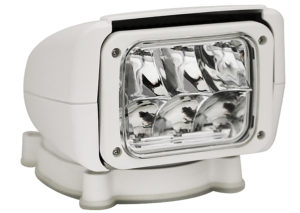

Housing ColorBlack (EW3000) or White (EW3001)
Voltage12-24V DC
Amps1.7A @ 12V DC
rLumens1645 Lu
eLumens1507 Lu
Beam Distance2,050ft
Candelas88,000
Rotation350°
Tilt Range90°
Illuminance92.3 lux
Efficacy64.2 lm/w
Correlated Color Temperature5541K
Wattage23.2W
Temperature Range-22°F (-30°C) to 122°F (50°C)
Housing MaterialAluminum
Lens MaterialPolycarbonate
MountPermanent or Magnet
Weight3.48lbs (1.57kg)
ApprovalsCE, IP68 (Lighthead only)
Warranty5 Years

Specification Sheet


Applications: Work and service vehicles, 4WD and recreational vehicles, military vehicles, emergency services

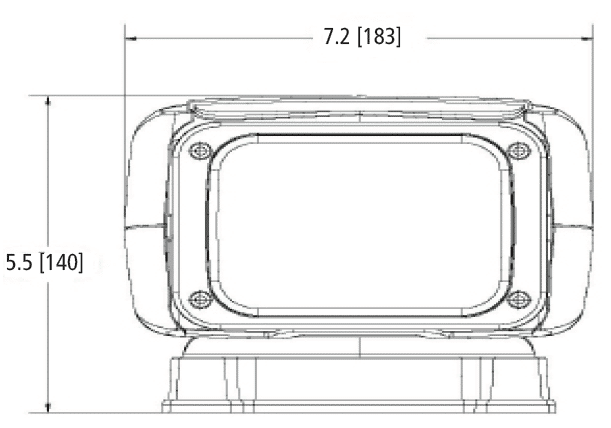

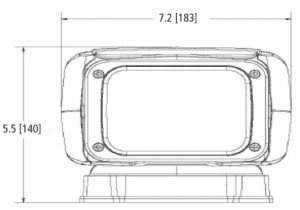

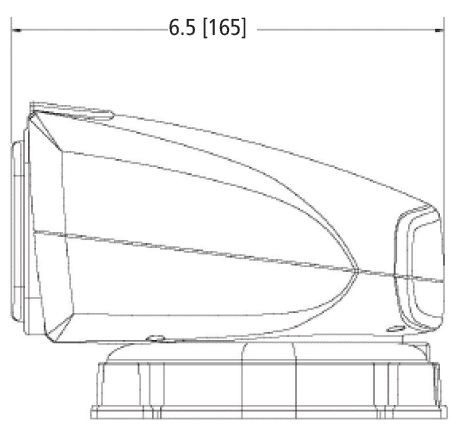

Dimensions:
Width: 7.2" (183 mm), Height: 5.5" (140 mm), Depth: 6.5" (165 mm)
