ECCO EW3010/3011 LED Remote Spotlight Series

ECCO EW3010/3011 LED Remote Spotlight Series

Brand: ECCO
Origin: USA

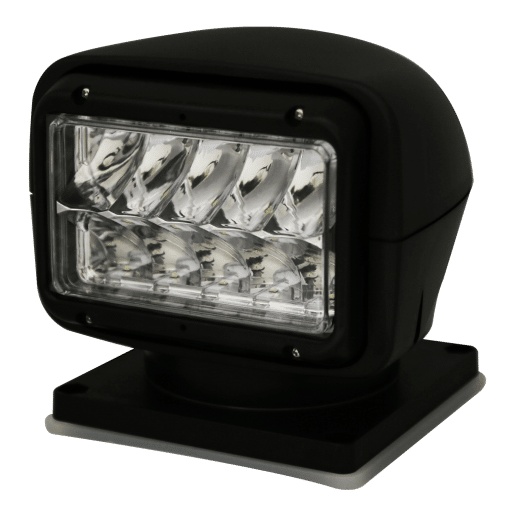

ECCO’s EW3010 Series Remote Spotlights are multifunctional, motorized searchlights featuring a 12-24V DC operation. Both spotlights can be installed wirelessly and are protected by a polycarbonate lens and the housings are available in black or white. The EW3010/3011 offers full 360° continuous rotation, a 135° tilt range and features an optional hardwired in-dash joystick controller. The spotlight also has a home setting that automatically returns the light to its original position upon powering off the device. ASA resin housing makes the EW3010/3011 corrosion, UV and impact resistant and also feature patent pending reflective optics.

Features and Benefits

  • Ten 5W LEDs
  • Permanent or magnet mount available
  • “Return to Home” setting will automatically return light to original position when powered off
  • Aluminum heatsink lighthead
  • Polycarbonate housing

Videos



EW3010 Series Specifications

Voltage12-24V DC
rLumens2,251 Lu
eLumens2,052 Lu
Current2.8A @ 12V DC
Wattage37.5W
BeamSpot
Beam Distance3,925 ft
Rotation360° Continuous
Tilt Range135°
Candela350,000
Illumniance348.2 lux
Efficacy55.1 lm/w
Correlated Color Temperature5025K
ApprovalCE, IP68
Temperature Range-22°F (-30°C) to 122°F (50°C)
Housing ColorBlack or White
Housing MaterialAluminum
Lens MaterialPolycarbonate
MountingPermanent or Magnet Mount
Product Weight4.7lbs (2.12kg)
Warranty5 Years

Specification Sheet


Applications: Work and service vehicles, 4WD and recreational vehicles, military vehicles, emergency services


Dimensions:
Width: 7.6" (193 mm), Height: 5.0" (127 mm), Depth: 6.3" (160 mm)

Part#
Description
