ECCO K5000B 5″ LCD Color Camera System

ECCO K5000B 5″ LCD Color Camera System

Brand: ECCO
Origin: USA


The 5” LCD high-resolution colour monitor included with this system provides the optimal viewing area for mobile CCTV applications. Excellent picture quality is assured even in low-light conditions using a CMOS colour infrared camera. The flat, widescreen monitor allows unobtrusive mounting with a large, easily viewable screen area. Expandable up to 3 cameras.

Features & Benefits

  • CMOS 18 LED infrared camera
  • Includes monitor sunshade
  • Three camera expandable
  • One year warranty

ECCO K5000B 5″ LCD Color Camera System Monitor Specifications

Screen Size5.0” (127mm)
Max Cameras3
Voltage12-24V DC
Wattage2.6W
ColourYes
Internal ControllerYes
Mirror ImageYes
SunshadeYes
Operating Temp-20°C to +70°C
CertificationsFCC, CE, RoHS
4-pin Camera ConnectionYes
Day / Night Light SensorYes
Weight0.79 (lbs) / 0.36 (kgs)
Dimensions (DxWxH)5.2x3.5x2" (132x89x51mm)

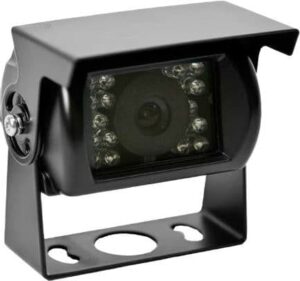

ECCO K5000B 5″ LCD Color Camera System Camera Specifications

Infrared LEDs18
Mechanical Vibration8G
Wattage1.0W
ColorYes
Lens Angle90°
Lens Size1/4” (6.35mm)
Operating Temp-30°C to +70°C
CertificationsIP69K, FCC, CE, RoHS
4-pin Camera ConnectionYes (threaded)
Day / Night Light SensorYes
Weight0.6 (lbs) / 0.27 (kgs)
Dimensions (DxWxH)2.9x3x2.6"(74x76.5x66.5mm)

Specification Sheets


Applications: Mobile CCTV, on-road applications, 4WDs, SUVs, light trucks, utility vehicles, delivery trucks, garbage trucks
