Brand:
Federal Signal Corporation
Origin: USA
Click for:

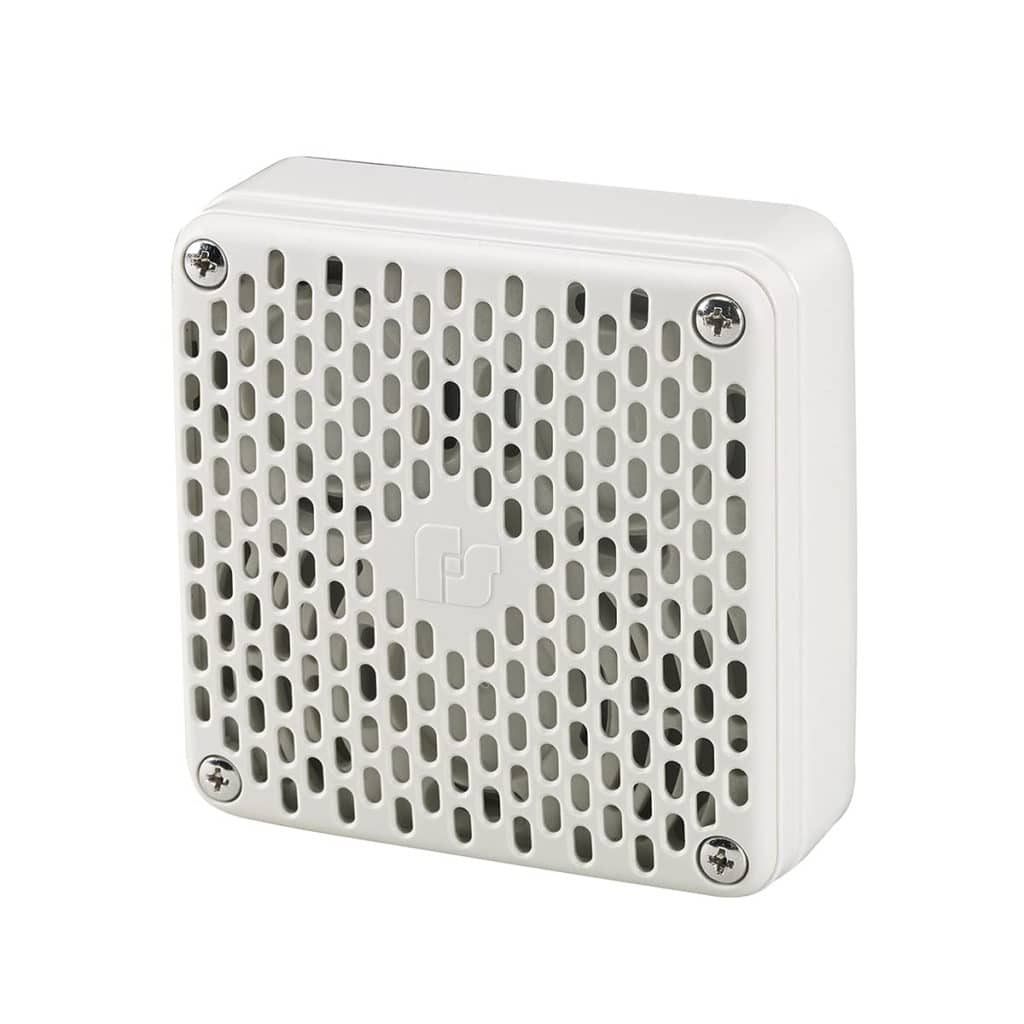

Model 450E electronic horn offers a loud, clear and distinctive tone. It’s often used for general alarming, start and dismissal noticing, coded paging and process control in noisy areas. Its 4-wire terminal block and supervisory diodes design make it ideal for fire alarm applications. Model 450E’s polycarbonate housing and polymeric speaker are corrosion resistant and weatherproof for improved durability in harsh industrial environments. It has no detectable RF emissions in a 30 MHz to 1000 MHz frequency range, which minimises the potential for electrical device interference.
Federal Signal 450E Vibratone Electronic Horn Features & Benefits ▲
- Fire Regulated 16-33VDC General Purpose Signal 12-24VDC
- Coded or sustained tones
- No duty cycle or interval limitations
- 99 dBa @ 10’ on axis (109 dBa @ 1m on axis)
- Four wire terminal block and supervisory diode
- Type 4X, IP66 when installed with Panel Mount Gasket (included) or optional Non-metallic Weatherproof Backbox (Model WB-NM)
- Marine Rated
- CSFM Approved
- UL and cUL
- UL Fire Listed and ULC Canadian Fire Listed
Federal Signal 450E Vibratone Electronic Horn Specifications ▲
Voltage | 12-24V DC, 16-33V DC |
Operating Current | 4.0A @ 24V DC |
Decibel Output | 109dBa @ 1m (99dBa @ 10′) |
Duty Cycle | No duty cycle or interval limitations |
Operating Temperature | –65ºF to 150ºF (–54ºC to 66ºC) |
Enclosure Rating | Type 4R enclosure |
Certification | UL, cUL, UL Fire Listed, ULC Fire Listed, CSFM Approved, Marine Rated |
Housing | Non-metallic Polycarbonate Light Gray (RAL 7035) |
Body Colour | Gray |
Mount | Surface mount |
Dimension (D, W, H) | 2.79x4.11x4.11” (70.9x104.4x104.4mm) |
Weight | 1 lb / 0.45 kg |
Warranty | 5 Year |
Federal Signal 450E Vibratone Electronic Horn Specifications Flyer (PDF) ▲
Applications: Heavy equipment, mining, construction, road and utility equipment, forestry, agriculture
