J.W. Speaker Model 12V Gen 5 Bobcat LED Flood Headlights

J.W. Speaker Model 12V Gen 5 Bobcat LED Flood Headlights

Brand: J.W. Speaker
Origin: USA


Click for:

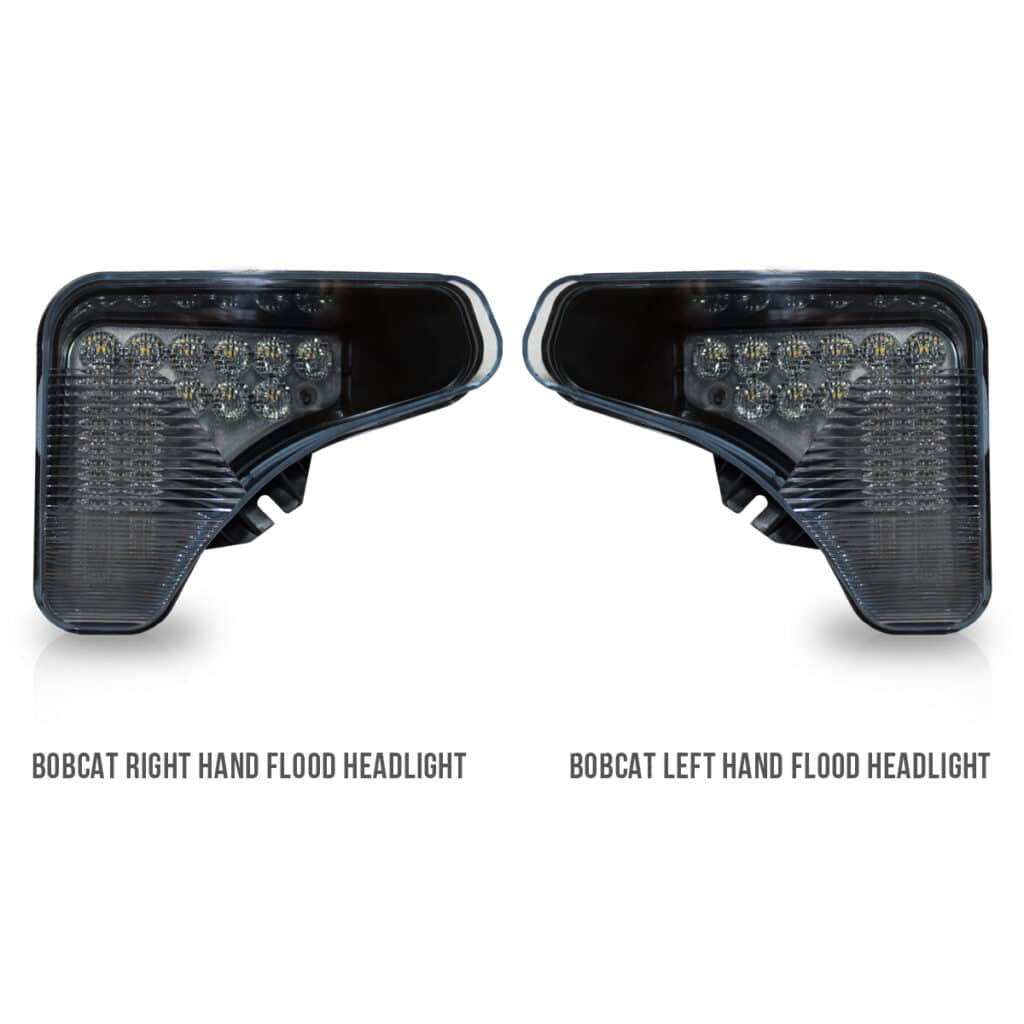

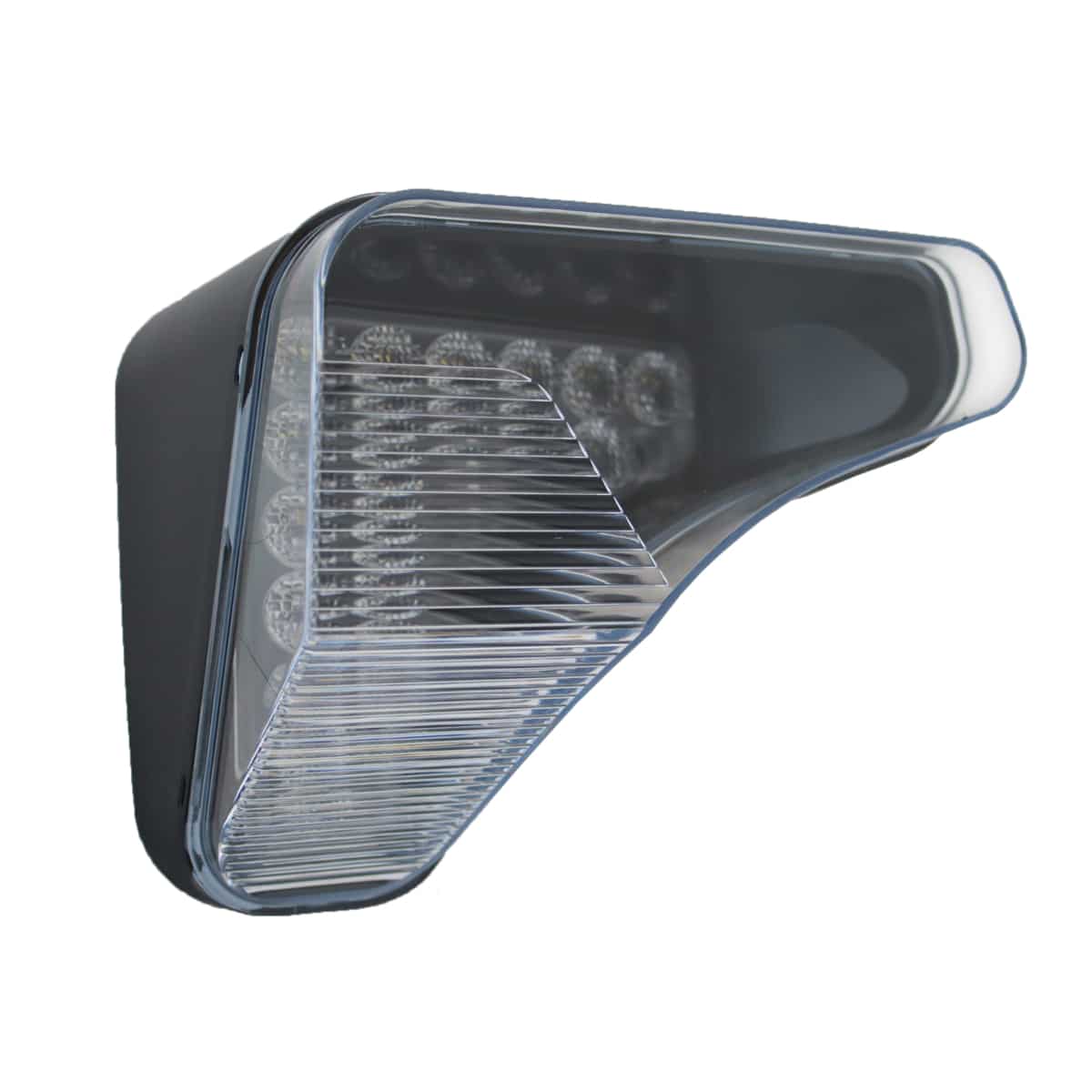

This Bobcat® LED Headlight is designed to handle any severe environmental conditions. Complete plug and play replacement LED Headlight for the left-hand or right-hand Headlight on Bobcat® skid steers and compact track loaders. Direct replacement for OEM Bobcat part Numbers: 7251341, 7138041, 7399583 (Left-hand Headlights) 7251340, 7138040, 7399582 (Right-hand Headlights).

Application

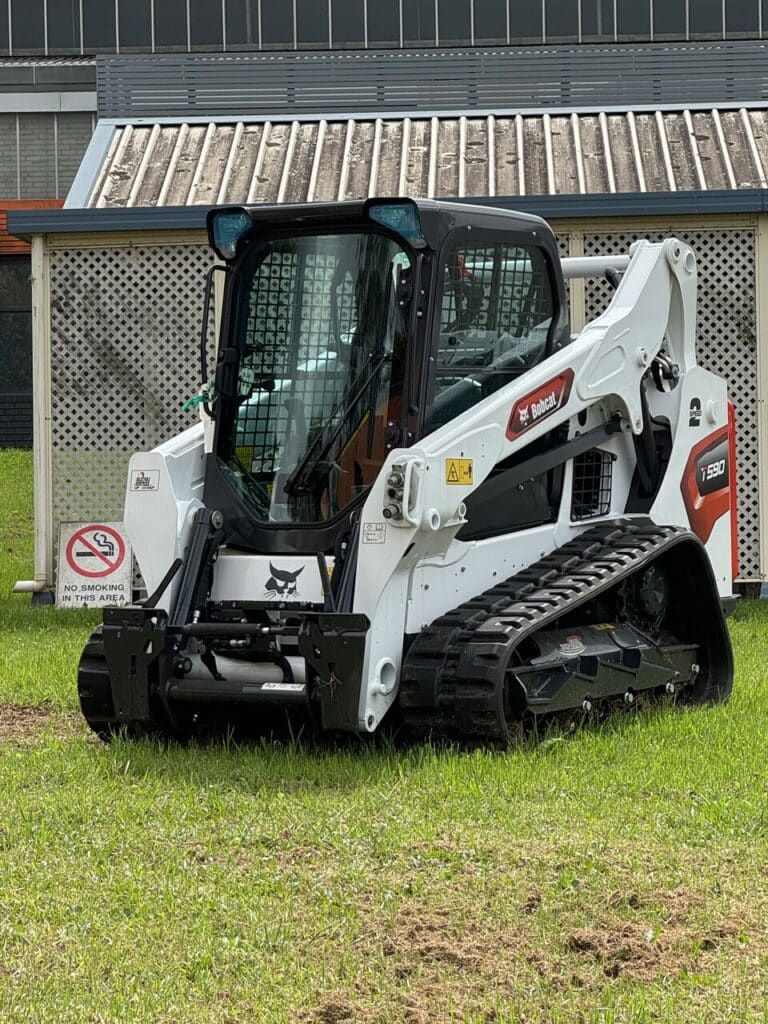

The Bobcat LED Headlight is a direct replacement for Bobcat Skid Steer Loaders and Compact Track Loaders: S590, S595, S630, S650, S740, S750, S770, S850, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870.

Superior visibility
LED light is more natural on the eyes, and the color temperature helps to keep the operator more alert. Ultimately, this improves visibility enables operators to be both more safe and productive.

Extreme durability
Equipment (and headlights) need to function in extreme conditions and harsh worksites. Shock and vibration often cause bulb-based lights to fail prematurely, but LED lights excel in these conditions. The impact-resistant polycarbonate lens and housing combine with solid-state electronics to provide maximum durability that you can trust.

Unmatched Longevity
Bobcat LED Headlights are designed to last for years in the harshest conditions. This Bobcat® LED Headlight features a durable polycarbonate lens.

* Does not include housing or mount.

J.W. Speaker Model 12V Gen 5 Bobcat LED Flood Headlights Features & Benefits

  • Outputs 1,050 effective Lumens
  • Forward Lighting – Flood
  • Durable polycarbonate lens is impact resistant
  • Direct replacement for Bobcat Skid Steer Loaders and Compact Track Loaders
  • 12V DC input voltage
  • Meets IEC IP67
  • Available in LH, RH, and LH/RH Kits

J.W. Speaker Model 12V Gen 5 Bobcat LED Flood Headlights Specifications

Input Voltage12V DC
Operating Voltage10-16V DC
rLumen 1728 Lumens
eLumen 1050 Lumens
Nominal LED Color Temperature5000 K
Current Draw1.5A @ 12V DC
Outer Lens MaterialPolycarbonate
Outer Lens ColorClear
Housing MaterialNylon
Housing ColorBlack
Mounting ConnectorPE 12124819
Minimum Operating Temperature-40 °C / -40 °F - 65 °C / 149 °F

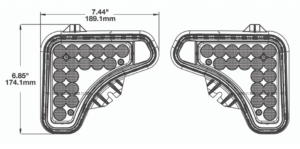

Height 174 mm / 6.85 in
Width189 mm / 7.44 in
Depth152 mm / 5.98 in
Product Weight1.17 lbs / 0.53 kgs
Standards ComplianceIEC IP67
