Brand:
J.W. Speaker
Origin: USA
Click for:
7″ x 3″ LED Work Lights

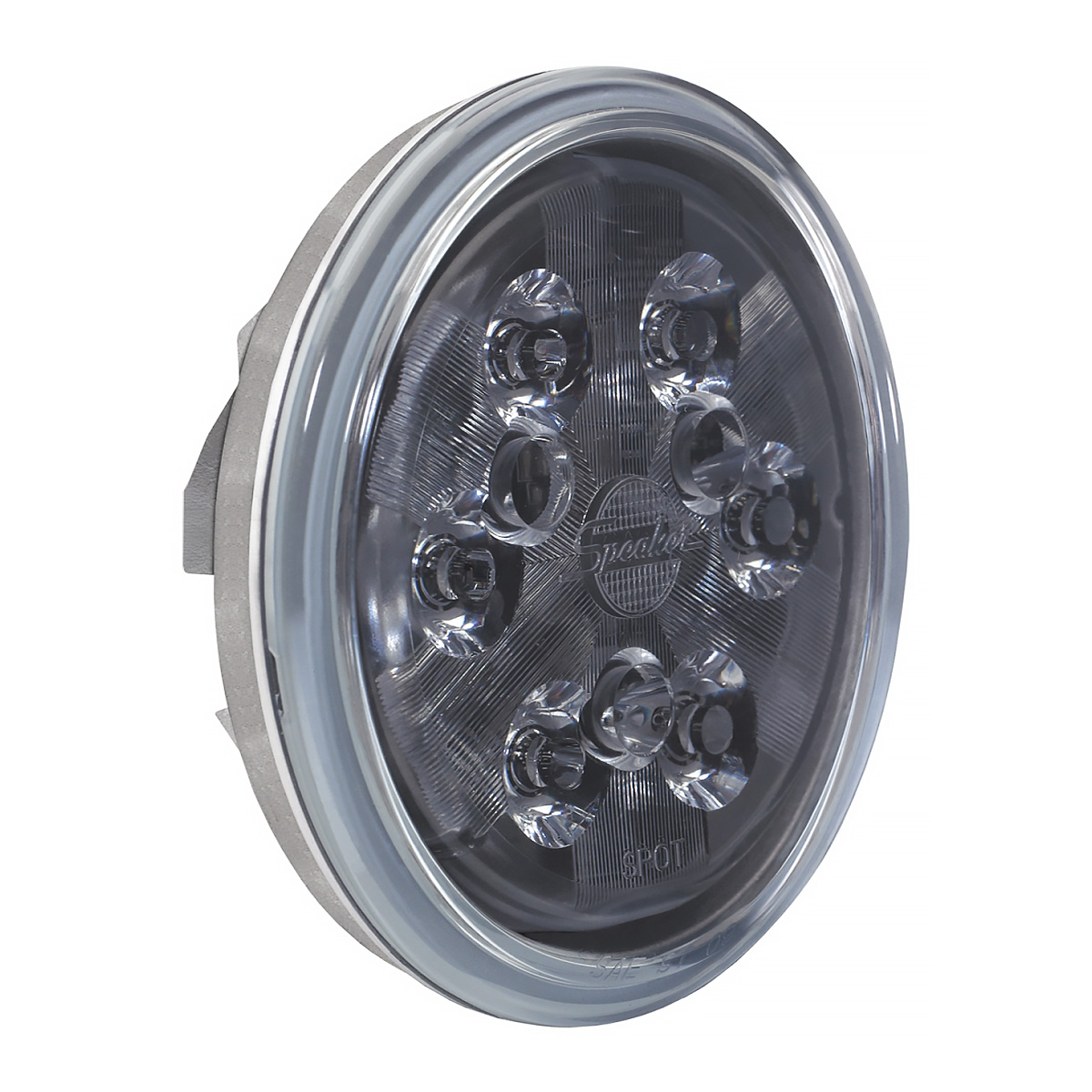

The Model 6040 is designed to retrofit PAR36 work lights and is a superior upgrade over bulb-based work lights. It is available in multiple voltage configurations, beam patterns, and lens materials. Available in DC configurations and multiple beam patterns. Hardened glass or impact-resistant polycarbonate lens options.
J.W. Speaker Model 6040 PAR36 LED Work Lights Features & Benefits ▲
- Retrofits PAR36 work lights
- 1020 eLumens

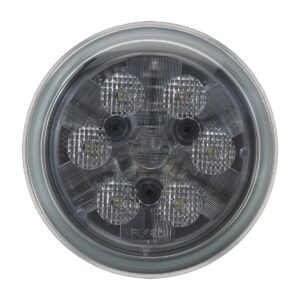

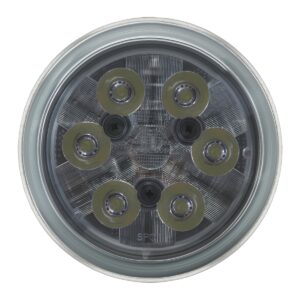

- Flood, Trapezoid, and Spot beam patterns
- 12V DC or 12-48V DC
J.W. Speaker Model 6040 PAR36 LED Work Lights Specifications ▲
| Beam Pattern | Forward Lighting - Flood (Standard) |
| Effective Lumens | 2,200 eLumens |
| Raw Lumens | 2,750 rLumens |
| Input Voltage | 12-24V DC |
| Operating Voltage | 9-28V DC |
| Current Draw | 2.0A @ 12V DC |
| Shape | Oval |
| Outer Lens Material | Glass |
| Outer Lens Color | Clear |
| Housing Material | Die-cast aluminium |
| Housing Color | Black |
| Mating Connector | Packard (#12059183) |
| Mounting Hardware | (x1) M8-1.25 x 20mm Mounting Bolt |
| Mounting Type | Universal Pedestal Mount |
| IP Rating | IEC IP69K |
| Minimum Operating Temperature | -40 °C / -40 °F - 65 °C / 149 °F |
| Height | 121.92 mm / 4.8 in |
| Width | 169.93 mm / 6.69 in |
| Depth | 81.53 mm / 3.21 in |
| Product Weight | 1.53 lbs / 0.69 kgs |
