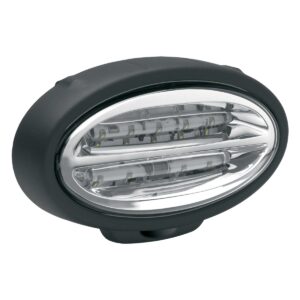

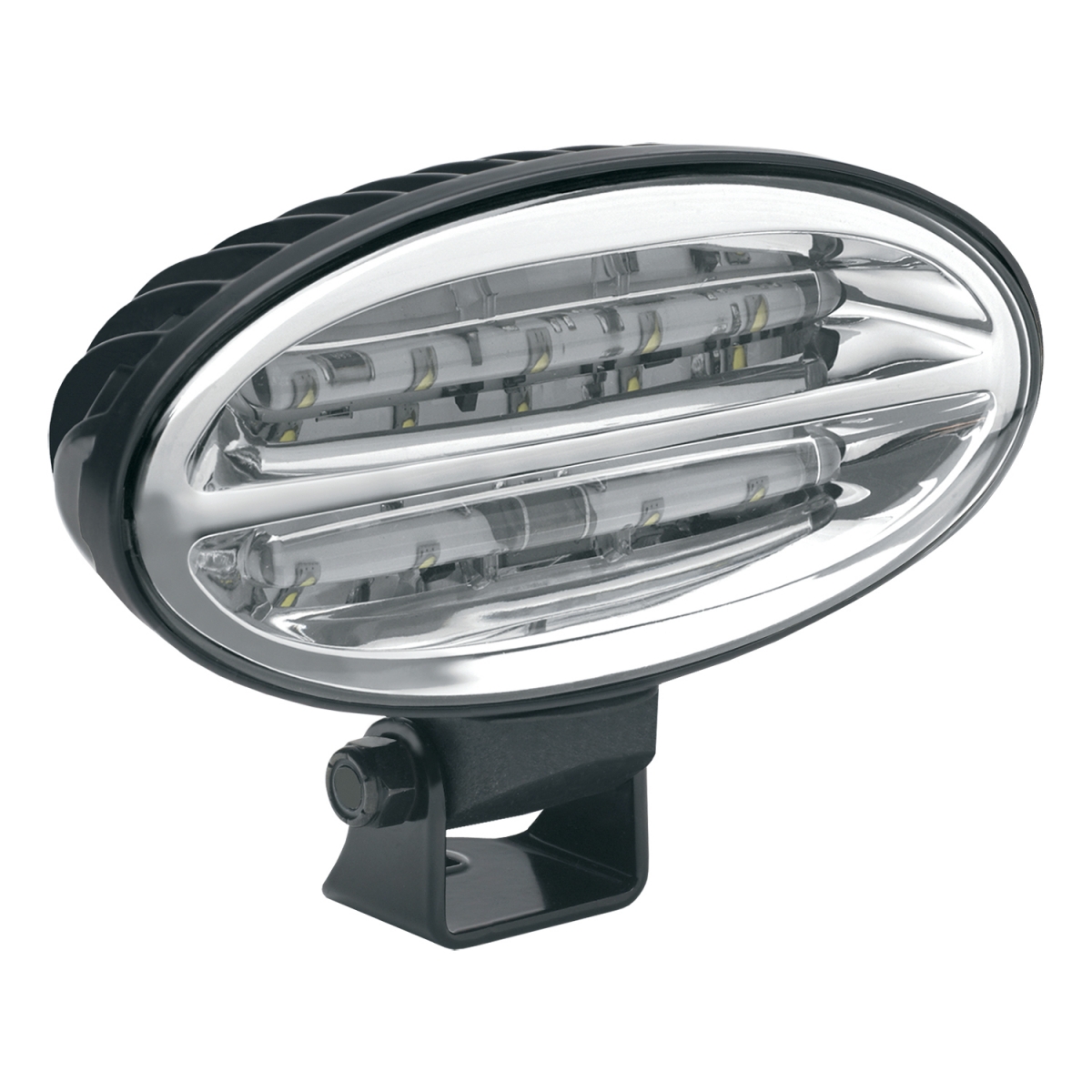

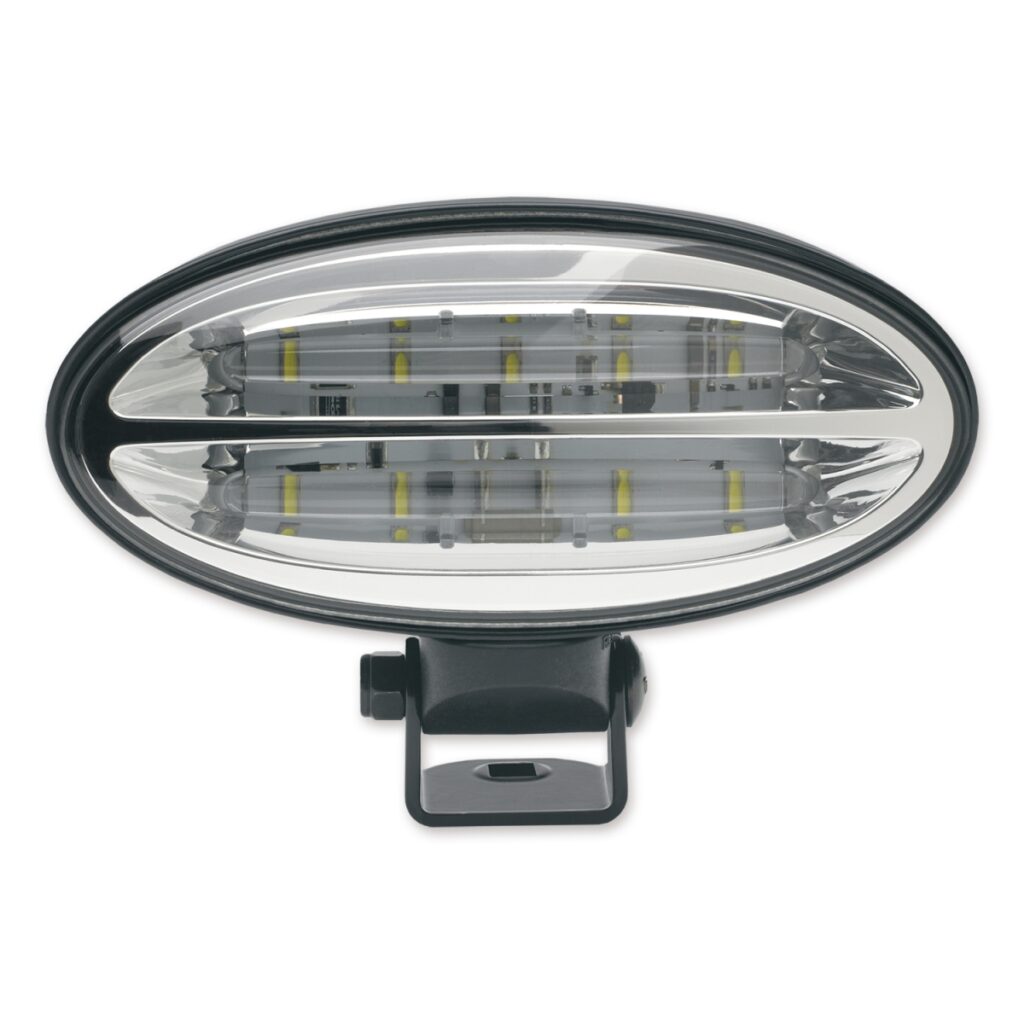

J.W. Speaker Model 660 LED Work Light

J.W. Speaker Model 660 LED Work Light

Brand: J.W. Speaker
Origin: USA

Click for:

•   Features & Benefits
•   Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

7″ x 3″ LED Work Lights

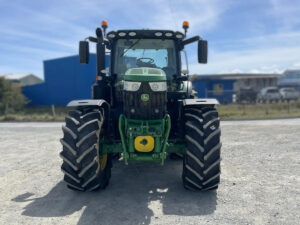

This narrow oval LED work light was designed with agriculture in mind. It is available in a panel or universal pedestal mount and comes in a DC configuration for use on a wide range of vehicles.

J.W. Speaker Model 660 LED Work Light Features & Benefits  ▲

  • Outputs 2,200 effective Lumens
  • Durable glass lens and die-cast aluminium housing
  • Available in a panel or universal pedestal mount
  • 12-24V DC input voltage

J.W. Speaker Model 660 LED Work Light Specifications  ▲

Beam PatternForward Lighting - Flood (Standard)
Effective Lumens2,200 eLumens
Raw Lumens2,750 rLumens
Input Voltage12-24V DC
Operating Voltage9-28V DC
Current Draw2.0A @ 12V DC
ShapeOval
Outer Lens MaterialGlass
Outer Lens ColorClear
Housing MaterialDie-cast aluminium
Housing ColorBlack
Mating ConnectorPackard (#12059183)
Mounting Hardware(x1) M8-1.25 x 20mm Mounting Bolt
Mounting TypeUniversal Pedestal Mount
IP RatingIEC IP69K
Minimum Operating Temperature-40 °C / -40 °F - 65 °C / 149 °F

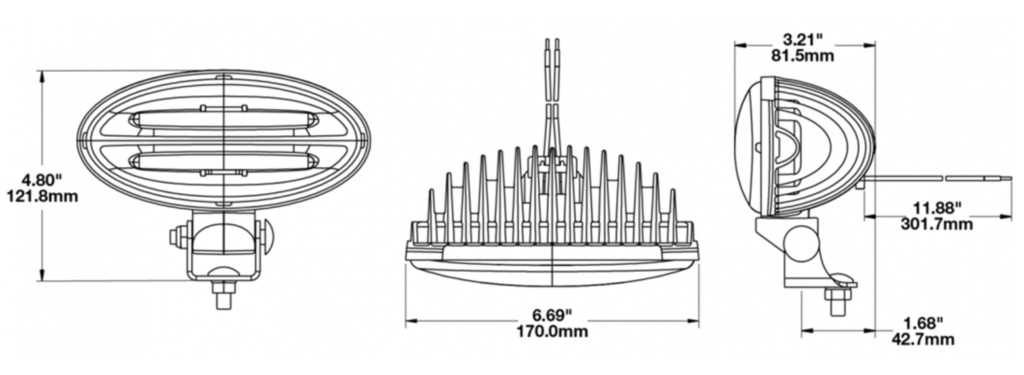

Height 121.92 mm / 4.8 in
Width169.93 mm / 6.69 in
Depth81.53 mm / 3.21 in
Product Weight1.53 lbs / 0.69 kgs

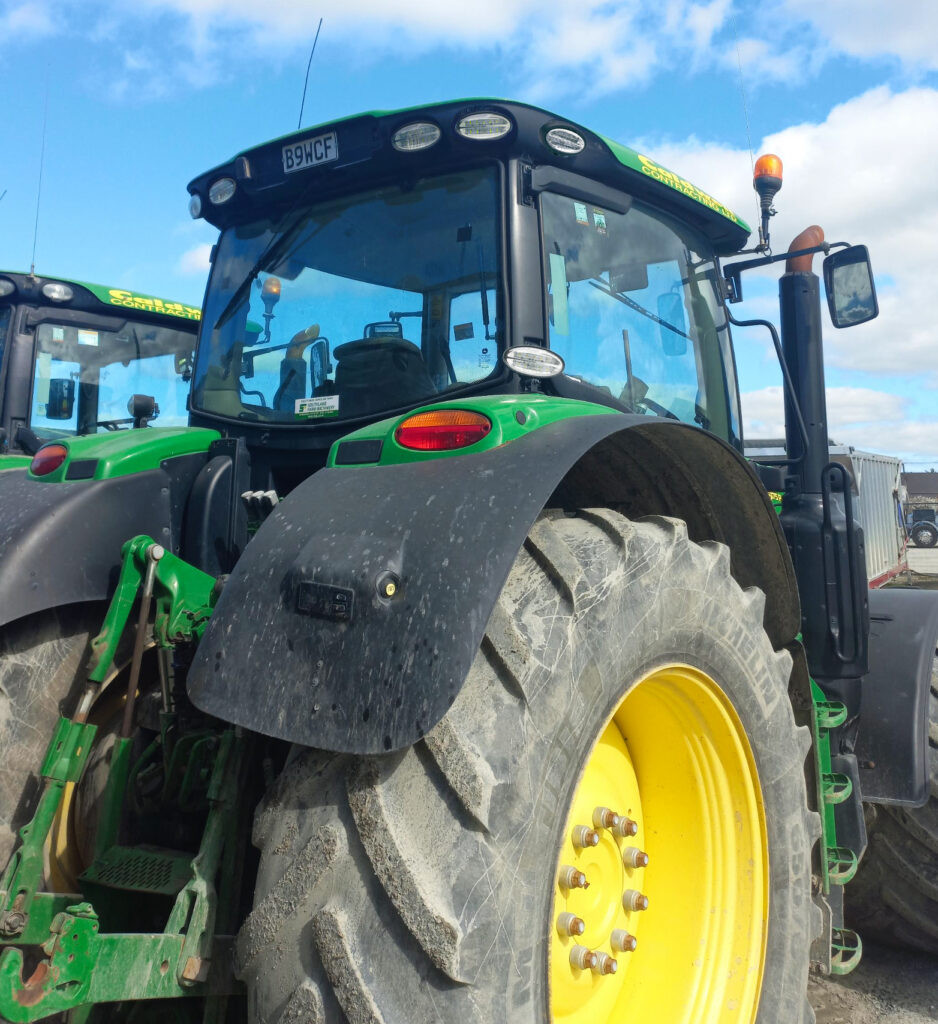

John Deer OEM: Replace all John Deere bulb lamps and HID to LED

  • JWS Pedestal Mount (0548511):
    John Deere OEM Numbers: RE573609, RE551679, AKK21510, AL225025.
    Bulb OEM Numbers: RE269638, RE269640
  • JWS Panel Mount (0548521):
    John Deere OEM Numbers: RE331642, AL225025, AL222628.
    Bulb OEM Numbers: RE269637

    • J.W. Speaker Model 660 LED Work Light ​Specification Flyer (PDF)  ▲

J.W. Speaker Model 660 LED Work Light Parts Enquiry  ▲

Part#
Description
