Brand:
J.W. Speaker
Origin: USA
Click for:

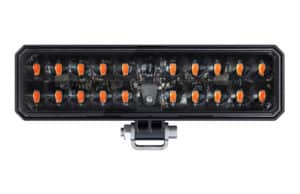

3″ x 8″ Work Light
The Model 893 is available in three configurations to meet jobsite needs: a Flood Beam work light for wide-area task illumination; an Eco-Friendly Anti-Glare version that minimizes reflection in mining, agriculture, and port operations; and the Dual Color Anti-Glare option, which lets you toggle between cool white and warm white with a single press of the power button—no extra wires or switches required. Operating equipment and machinery in dark, dusty environments demands consistent, high-quality lighting; the Model 893 answers that need across changing weather and lighting conditions.
Built with sturdy aluminum housing and an impact-resistant polycarbonate lens, the Model 893 shines brightest for crews in the harshest, most demanding worksites. The durable, pedestal-mounted and corrosion-resistant LED light fits easily on a wide range of work vehicles for nonstop productivity. Designed with thermal throttling protection for construction and agriculture applications, the Model 893 performs above the rest. Rated IP67 and IP69K, the Model 893 withstands bumps, thumps, and vibrations common when used in tough, weather-adverse sites.

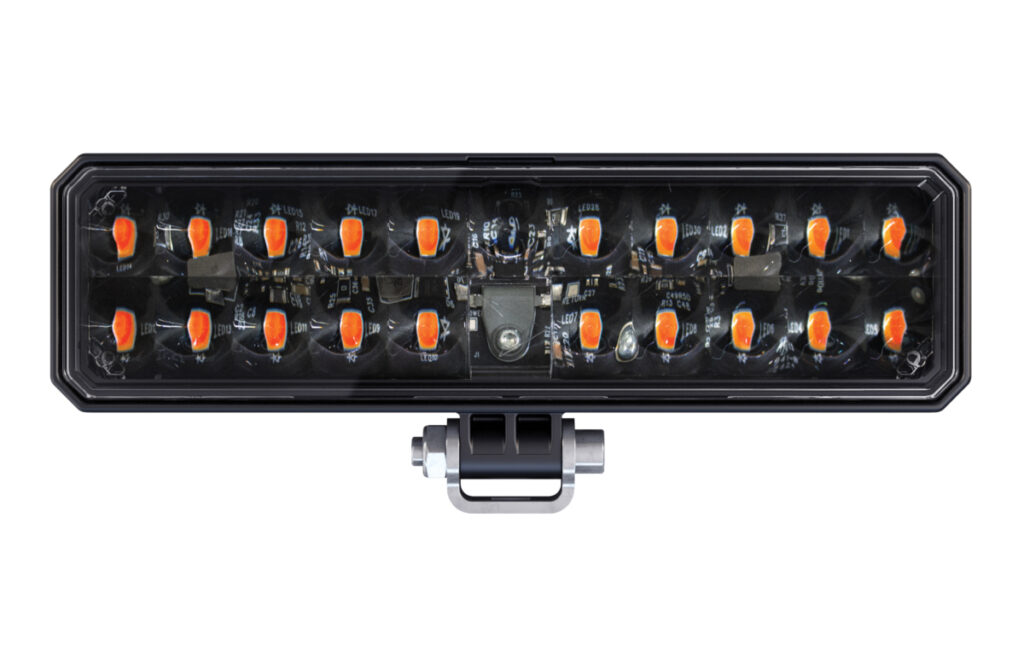

The Model 893 is available in an Eco-Friendly, Anti-Glare option. Anti-glare LED lighting plays a crucial role in mining, agriculture, and port operations, where visibility, safety, and performance are essential.
See clearly when you need it most with the Model 893 LED Compact Work Light. Brighter and more durable than inferior halogen lights, the rugged LED work light projects an incredible 3,700 lumens for forward lighting that cuts through the darkest nights and most inclement weather to help keep your crews productive and safe.
Click to view the Dual Color option.
J.W. Speaker Model 893 Compact Work Light Features & Benefits ▲
- LED compact 3″ x 8″ rectangular shape work lighte
- 3,700 effective lumens in a wide, flood beam pattern
- Rugged polycarbonate impact-resistant lens
- Sturdy black aluminium, corrosion-resistant housing
- Internal components fully encapsulated for moisture, vibration and corrosion protection
J.W. Speaker Model 893 Compact Work Light Specifications ▲
| Input Voltage | 9-32V DC (1300671), 12-24V DC (1300811) |
| Operating Voltage | 12-24V DC (1300671), 9-30V DC (1300811) |
| rLumens | 7,120 lumens (1300671) |
| eLumens | 3,700 lumens (1300671), 2300 lumens (1300811) |
| Candela Output | 6230 (1300671), 7400 (1300811) |
| Nominal LED Color Temperature | 5050 K (1300671), 1850 K (1300811) |
| Current Draw | 4.5A @ 12V DC (Power) 1.8A @ 24V DC (Power) |
| Transient Spike Protection | 330V Peak @ 1 HZ-100 Pulses (1300671) |
| IP Rating | IP67, IP69K |
| Standards Compliance | Buy America Standards, Eco Friendly, ECE Reg 10 (1300671), Tested to ECE Reg. 10 (Radiated Emissions Only) (1300671) |
| Minimum Operating Temperature | -40 °C / -40 °F |
| Maximum Operating Temperature | 60 °C / 140 °F (1300671) |
| Outer Lens Material | Polycarbonate |
| Outer Lens Color | Clear |
| Mating Connector | Deutsch DT06-2S-E003 |
| Housing Material | Aluminium (1300671), Aluminium Die Cast (1300811) |
| Mounting Type | Pedestal |
| Weight | 1.02 lbs / 0.46 kgs (1300671), 1.02 lbs / 0.46 kgs (1300811) |
| Dimensions (H x W x D) | 70 x 196 x 45mm (2.76 x 7.72 x 1.77 inch) |
| APS PN | JWS PN |
| A893 | 1300671 |
| 1300811 |
J.W. Speaker Model 893 Compact Work Light Specification Flyer (PDF) ▲
Applications: Mining, construction, industrial, agriculture, railroad, material handling, utility vehicles, specialty vehicles, automotive and off-road 4x4
