Brand:
J.W. Speaker
Origin: USA
Click for:

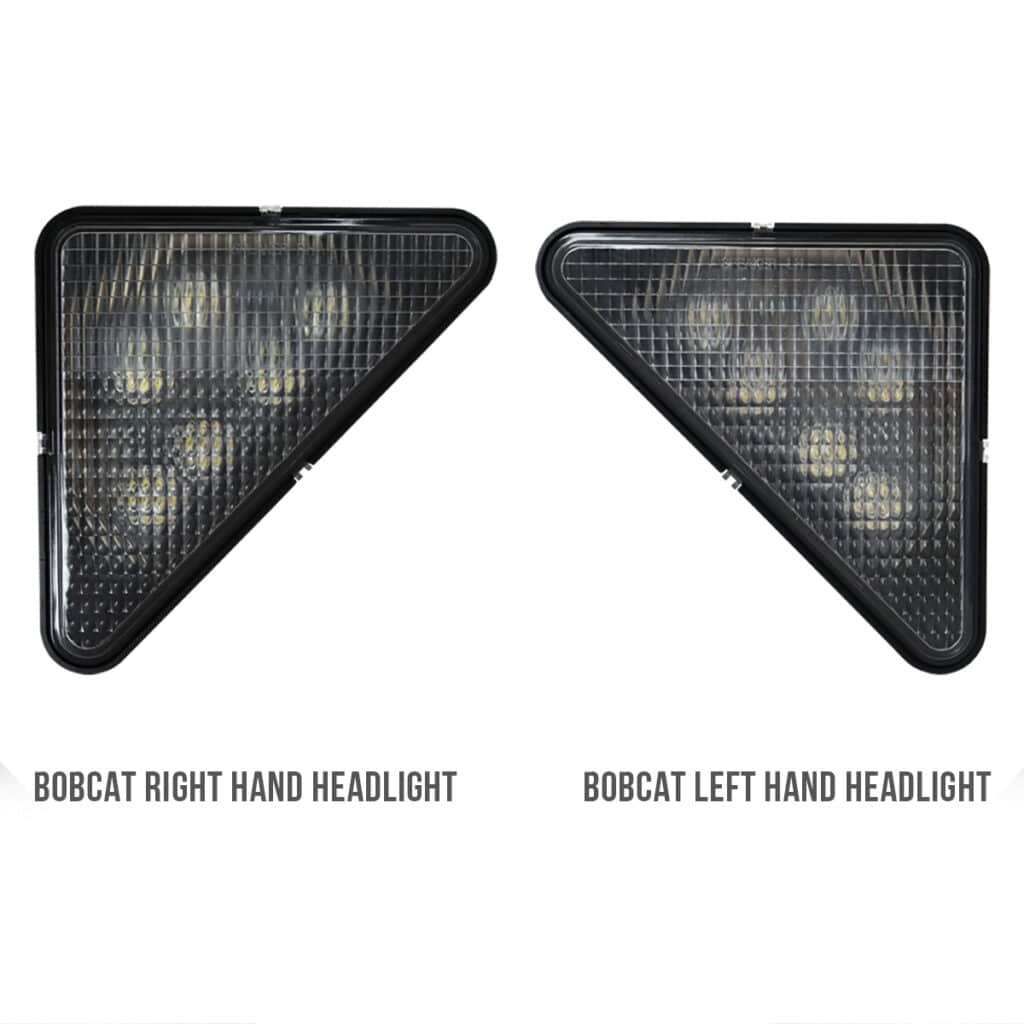

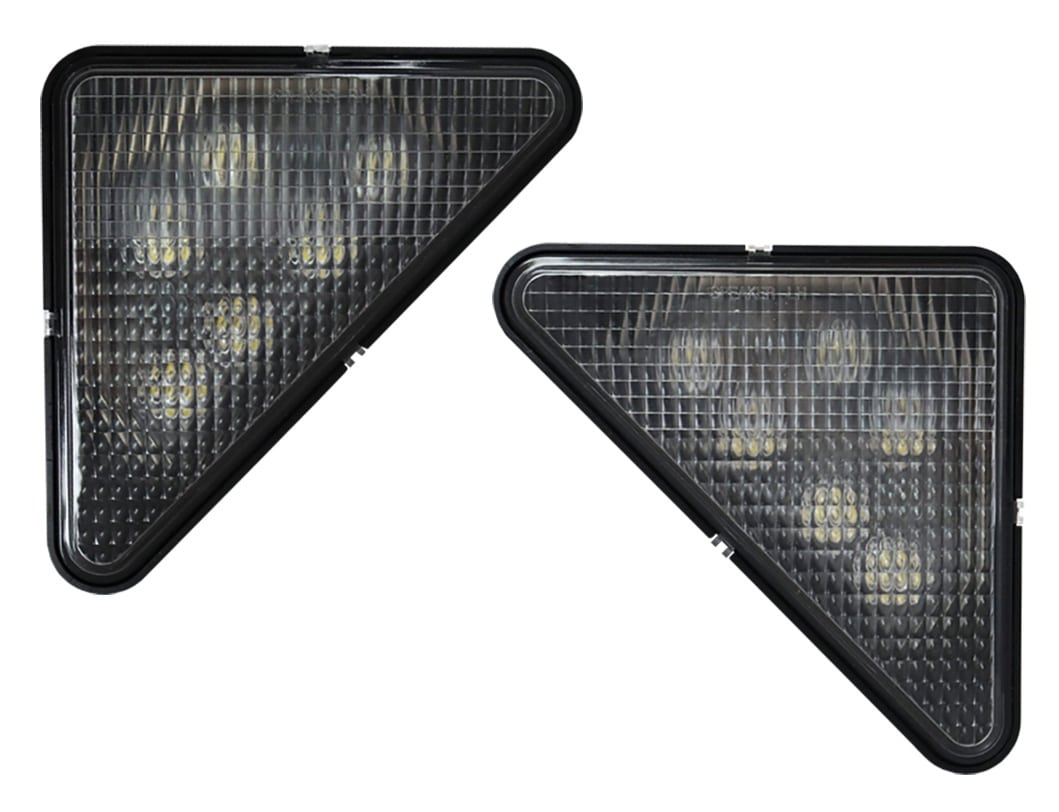

Complete plug and play replacement LED Headlight for the left-hand or right-hand Headlight on Bobcat skid steers and compact track loaders. Direct replacement for OEM Bobcat part Numbers: Left-Hand Headlights: 6718042, 6674400, 7259523. Right-Hand Headlights: 6718043, 6674401, 7259524.
Application
The Bobcat LED Headlight is a direct replacement for Bobcat Skid Steer Loaders and Compact Track Loaders: 751, 753, 763, 773, 863, 864, 873, 883, 963, A220, A300, S130, S150, S160, S175, S185, S205, S220, S250, S300, S330, T140, T180, T190, T200, T250, T300, T320.
Superior visibility
LED light is more natural on the eyes, and the color temperature helps to keep the operator more alert. Ultimately, this improves visibility enables operators to be both more safe and productive.
Extreme durability
Equipment (and headlights) need to function in extreme conditions and harsh worksites. Shock and vibration often cause bulb-based lights to fail prematurely, but LED lights excel in these conditions. The impact-resistant polycarbonate lens and housing combine with solid-state electronics to provide maximum durability that you can trust.
Unmatched Longevity
Bobcat LED Headlights are designed to last for years in the harshest conditions. This Bobcat® LED Headlight features a durable polycarbonate lens.
* Does not include housing or mount.
J.W. Speaker Model Bobcat LED 6” x 6” Headlights – 2 Light Kit Features & Benefits ▲
- Outputs 1,000 effective Lumens
- Durable polycarbonate lens is impact resistant
- Direct replacement for Bobcat Skid Steer Loaders and Compact Track Loaders
- 12-24V DC input voltage
J.W. Speaker Model Bobcat LED 6” x 6” Headlights – 2 Light Kit Specifications ▲
| Input Voltage | 12-24V DC |
| Operating Voltage | 9-32V DC |
| eLumen | 1000 Lumens |
| Current Draw | 2.2A @ 12V DC |
| Outer Lens Material | Polycarbonate |
| Outer Lens Color | Clear |
| Housing Material | Polycarbonate |
| Housing Color | Black |
| Connector or Wiring | Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P) |
| Mating Connector | Connector Metri PE12059450-B BLACK 2-pin |
| Minimum Operating Temperature | -40 °C / -40 °F - 65 °C / 149 °F |

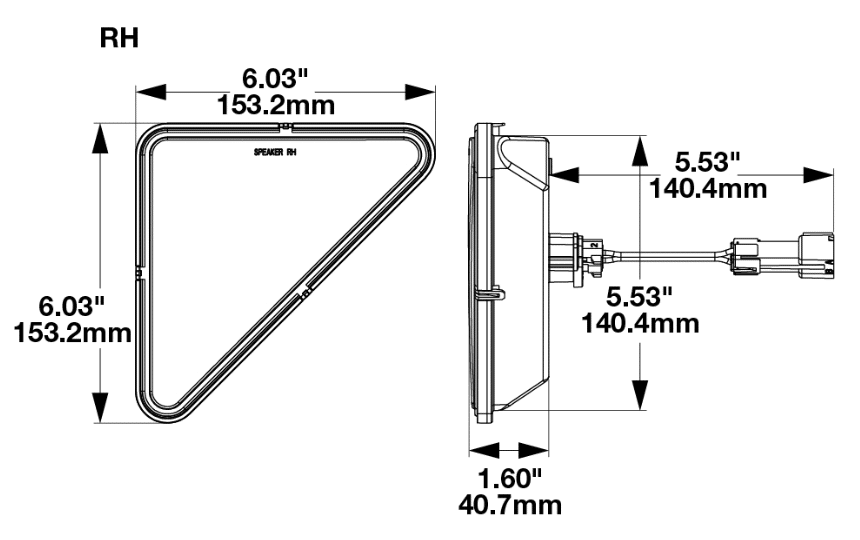

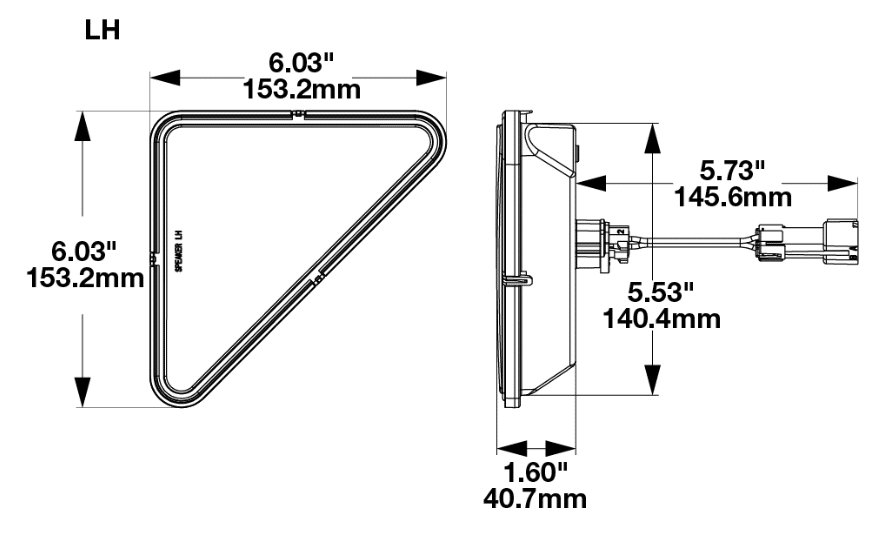

| Height | 140.1 mm / 5.52 in |
| Width | 153.16 mm / 6.03 in |
| Depth | 40.68 mm / 1.6 in |
| Product Weight | 1.62 lbs / 0.73 kgs |
