J.W. Speaker Model 515 4″ x 8″ LED Forklift Headlights

J.W. Speaker Model 515 4″ x 8″ LED Forklift Headlights

Brand: J.W. Speaker
Origin: USA

Click for:

•   Features & Benefits
•   Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

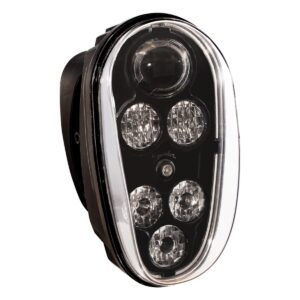

The Model 515 is a multifunctional industrial headlight that’s more reliable, brighter, and longer-lasting than bulb-based lights. It features three distinct functions (low beam, front position, and turn signal) in one compact package.

J.W. Speaker Model 515 4″ x 8″ LED Forklift Headlights Features & Benefits  ▲

  • Mounts to the front of forklifts
  • Available in black or chrome bezel
  • Low beam, front position, and turn signal functions all in one
  • Perfect replacement for Forklift Headlights

J.W. Speaker Model 515 4″ x 8″ LED Forklift Headlights Specifications  ▲

ShapeStylized
Outer Lens MaterialHard-Coated Polycarbonate
Outer Lens ColorClear
Housing MaterialDie-Cast Aluminum
Housing ColorBlack
Bezel ColorBlack or Chrome
Mounting Hardware(x2) M6-1 x 25 Mounting Bolts
Mounting TypeMounts to front of lift truck
Minimum Operating Temp.-40 °C / -40 °F
Maximum operating Temp.65 °C / 149 °F
Connector or WiringIntegrated 4-Pin Deutsch Weather-Proof Socket (DT04-4P)
Mating Connector4-Pin Deutsch Weather-Proof Plug (DT06-4S)
Shipping Weight2.45 lbs / 1.11 kgs
Input Voltage12-48V DC
Operating Voltage9-60V DC
Transient Spike Protection330V Peak @ 1 HZ-100 Pulses
Current Draw0.60A @ 12V DC (Low Beam)
0.30A @ 24V DC (Low Beam)
0.20A @ 36V DC (Low Beam)
0.15A @ 48V DC (Low Beam)
0.05A @ 12V DC (Front Position)
0.05A @ 24V DC (Front Position)
0.60A @ 12V DC (Low Beam)
0.30A @ 24V DC (Low Beam)
0.20A @ 36V DC (Low Beam)
0.15A @ 48V DC (Low Beam)
0.05A @ 12V DC (Front Position)
0.05A @ 24V DC (Front Position)
rLumens540 Lumens (Low Beam)
eLumens420 Lumens (Low Beam)
Standards ComplianceBuy America Standards, ECE Reg 6, Eco Friendly, ECE Reg 113, ECE Reg 7, IEC IP67
Beam PatternsForward Lighting - Low Beam (ECE Left Hand)
Forward Lighting - Low Beam (ECE Right Hand)
Signalization - Front Position
Signalization - Turn (Front)
Signalization - Turn (Rear)
APS PN JWS PN
515-BB 0548901
515-CB 0549201



J.W. Speaker Model 515 4″ x 8″ LED Forklift Headlights Specifications Flyer (PDF)  ▲

Applications: Construction, industrial, material handling, specialty vehicles, truck and bus

Dimensions:
Width: 4.25" (108 mm), Height: 7.64" (194.0 mm), Depth: 5.18" (131.6 mm)
