Brand:
Narva
Origin: Australia
Click for:
Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for all civil applications. This has been achieved by a proprietary reflector optic to spread the light combined with 6 x 5 watt high power LEDs. This output ensures Optimax LED Beacons meet Heavy Vehicle Regulation 2013 No.77. This extreme output also makes the Optimax beacon range as visible even as traditional halogen beacons with 55W (or 70W) globes with a fraction of the current draw.

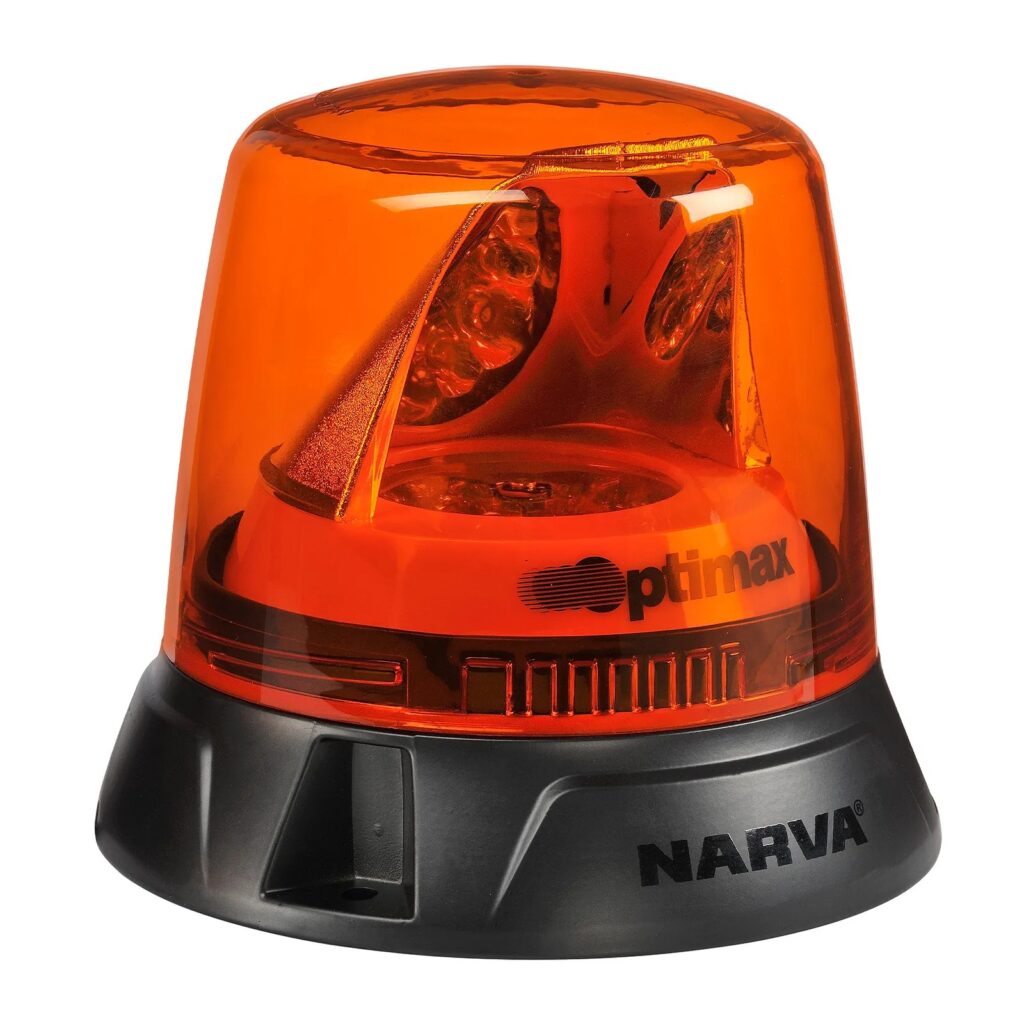

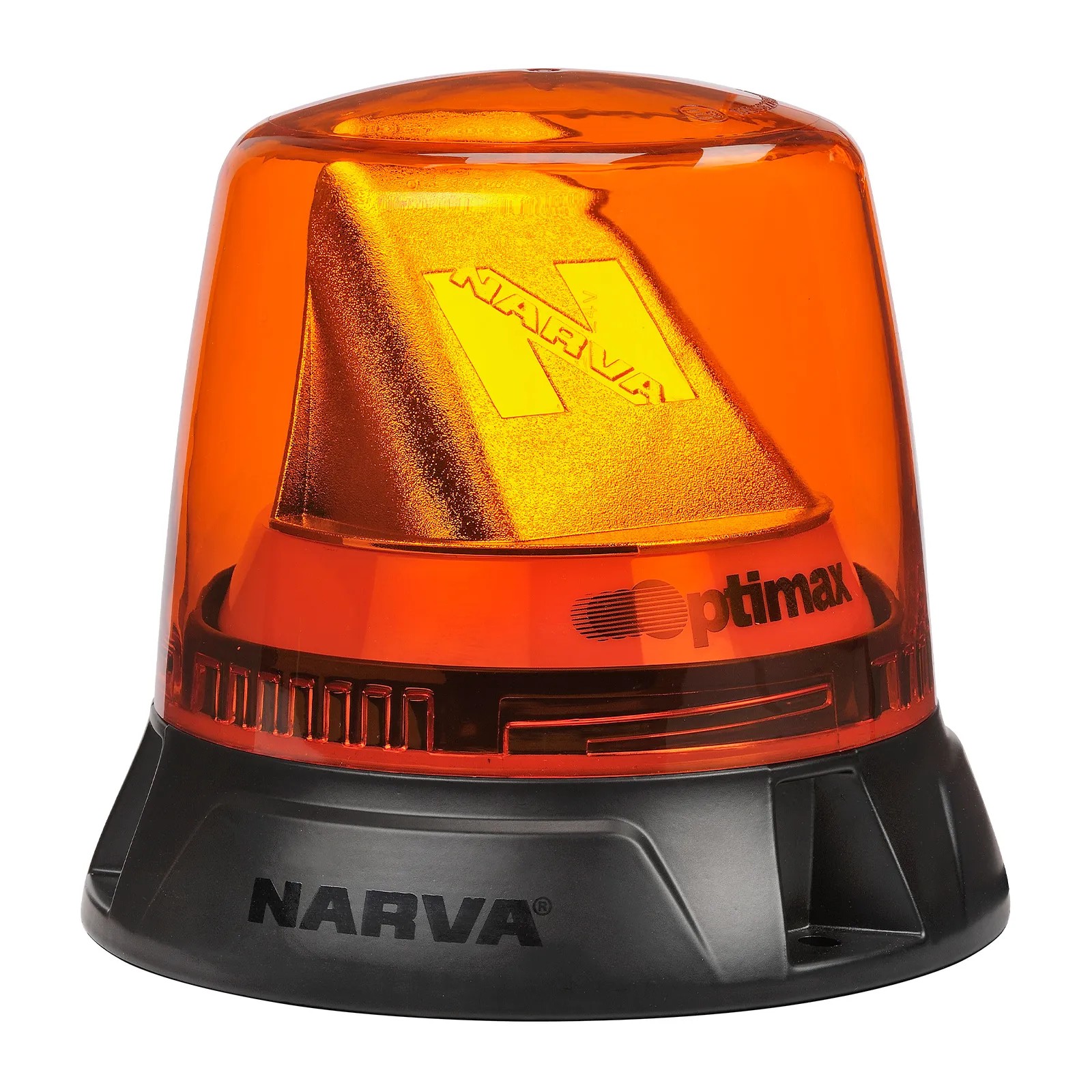

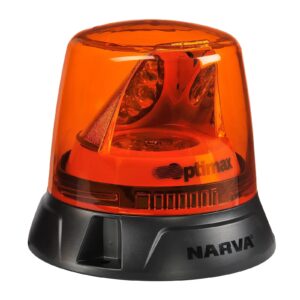

Narva 85660A Optimax LED Rotating Beacon Flange (Amber) Features & Benefits ▲
- Longer Lasting: LED technology ensures no blown globes due to continued use
- More Reliable: Vibration resistant stepper motor & over voltage protection

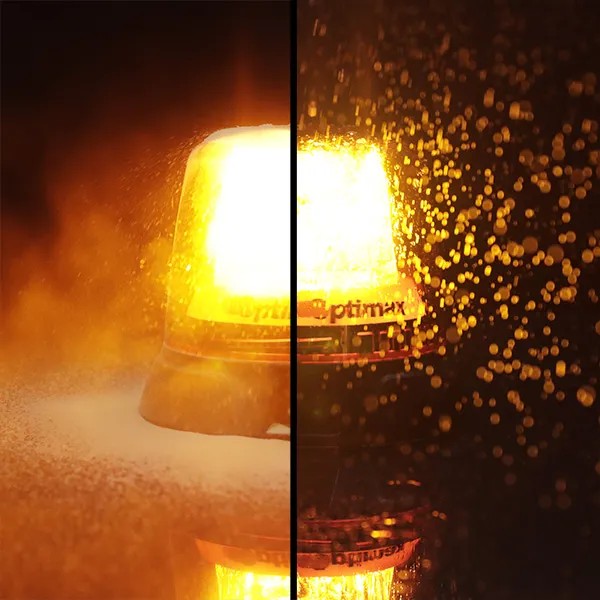

- More Durable: Diecast aluminium base, virtually unbreakable lens & rated to IP67
- More Visible: 6 x 5W (30W) LED Output

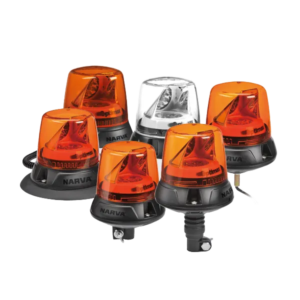

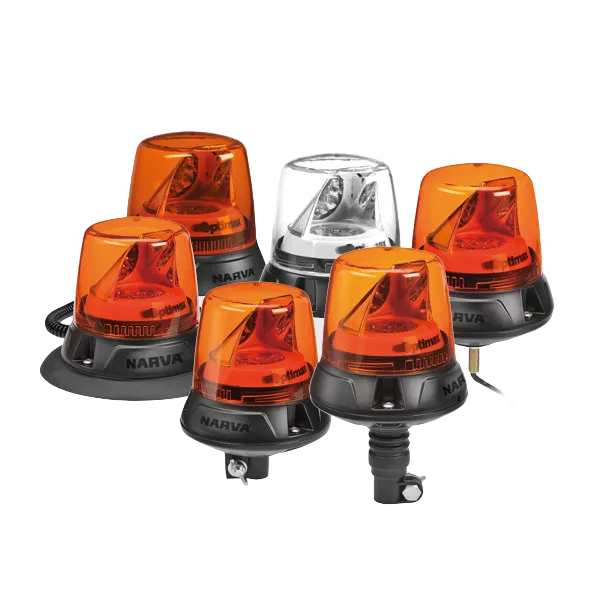

- Multiple Applications: 5 mounting options and Australia’s first dual-colour LED beacon
- 3 Year Warranty: Ensured durability with our 3 year warranty
Narva 85660A Optimax LED Rotating Beacon Flange (Amber) Specifications▲
| Input Voltage Range | 10-33V |
| Current Draw | 1A @ 12V |
| LEDs | 6 x 5 watt high power LEDs |
| Operating Temperature | -30° to 60° |

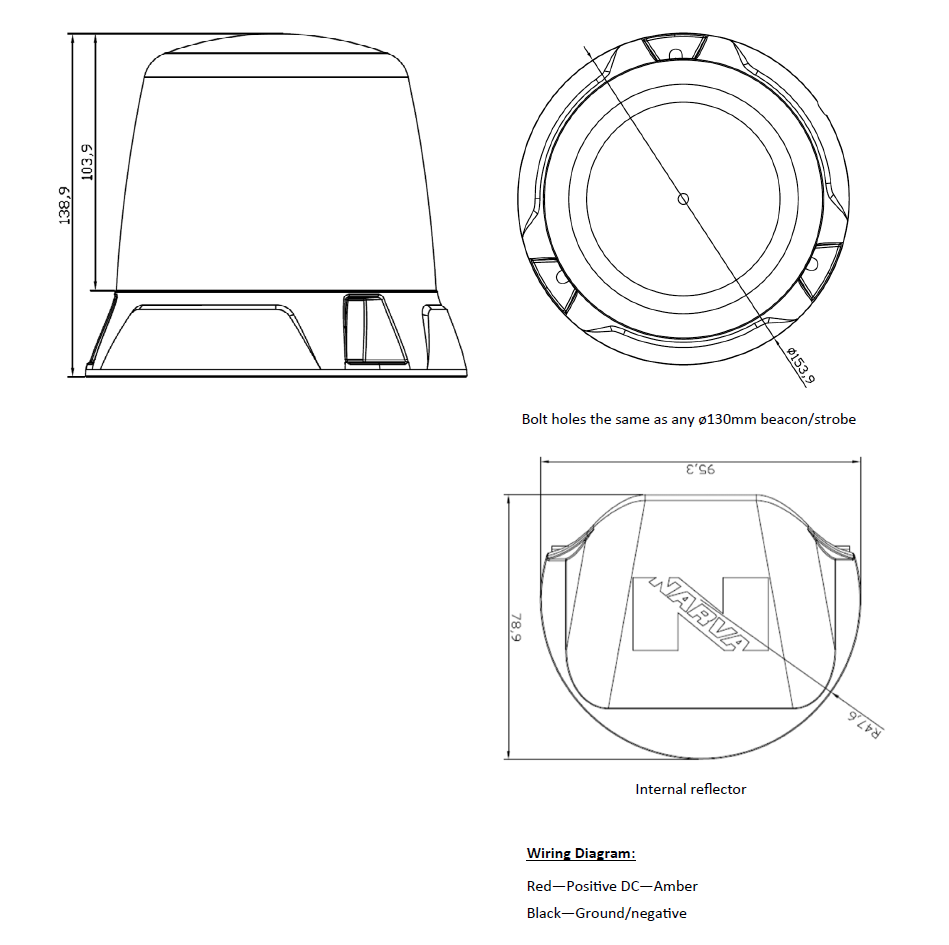

| Size | 139mm (height) x 154mm (diameter) |
| Weight | 330g |
| Base Type | Flange |
| Lens Colour | Amber |
| Output Colour | Amber |
| Lens Material | Makrolon 2607 Polycarbonate |
| Housing Material | Diecast Aluminium |
| SAE | J845 Class 1, W3-1 |
| ECE R65 | N/A, separate model |
| ECE R10 | 10R-06.22895 |
| CISPR25 | Class 3 |
| ROHS | ✓ - LCS210803145AR |
| REACH | ✓ - LCS210803146AR |
| IP Rating | IP67 |
| Vibration Tests | IEC 60068-2-64 |
| Mechanical Shock Test | ISO 16750-3:2007 4.2.2 |
Narva 85660A Optimax LED Rotating Beacon Flange (Amber) Specification Flyer (PDF)▲
Applications: Civil, Heavy-duty Vehicles & Equipment, Utility, Road Maintenance & Public Service Vehicles, Industrial, Construction, Mining, Agricultural, Port, Airport, Material Handling
