ORALITE V98 Conformable Graphic Sheeting

ORALITE V98 Conformable Graphic Sheeting

Brand: Oralite
Origin: USA


ORALITE® V98 Conformable Graphic Sheeting is a tough weather and solvent resistant microprismatic retroreflective product designed for rugged outdoor use for vehicles that require increased visibility such as fire, EMS, police, utility, telecom and DOT. The material is die cuttable and plotter cuttable, and easy to apply to smooth painted or unpainted vehicle surfaces. The single layer product does not require edge sealing, and is designed to be applicator friendly due to the potential to template fewer pieces than other prismatic graphic films. ORALITE® V98 meets/exceeds the requirements of NFPA 1901.

Oralite V98 Conformable Graphic Sheeting



Features and Benefits

  • Repositionable adhesive, ease of application
  • Superior conformability, perfect for complex curves, rivets and corrugations
  • Prismatic retroreflective performance, enhanced long distance visibility
  • Mono-layered construction, no edge sealing required, withstands high pressure washing, resists edge lift
  • Exceptional impact resistance, maintains reflectivity after impact,
  • Specification compliant, meets requirements for: ASTM D4956 NFPA 1901

Specification Sheet



Product Construction
ORALITE® V98 Conformable Graphic Sheeting is composed of cube corner (microprism) retroreflective elements integrally bonded to a flexible, smooth-surfaced, tough and weather-resistant UV stabilized polymeric film. The prism surfaces are coated with a vacuum deposition of aluminum to provide a mirror surface to the prism facets.

Reflectivity
Typical values for the coefficient of retroreflection for ORALITE® V98 Conformable Graphic Sheeting are shown in Table 1 when illuminated with CIE standard illuminant A and measured with the provisions of CIE No.54.2. Rotation angles of 0° and 90° are measured and averaged.

Colours

Oralite V98 Colours

V98
Available Widths: 1”, 2”, 6”, 30”
Available Lengths: 150’ (50-yard)
Available Colours: White, yellow, green, red, blue, fluorescent, orange, fluorescent yellow, fluorescent lime
Durability: 5 years

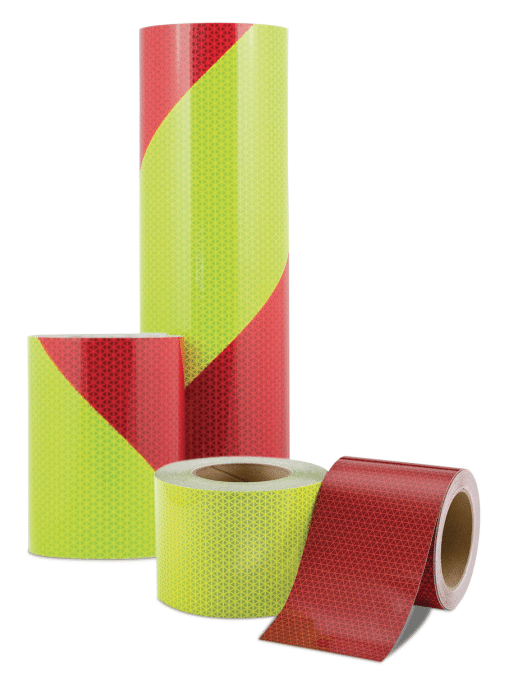

V98 Pre-Striped Chevron
Available Widths: 6”, 15”, 30”
Available Lengths: 150’ (50-yard)
Available Colours: 45° left hand fluorescent lime/red pre-stripe, 45° right hand fluorescent lime/red pre-stripe
Durability: 5 years



Part number shown below is for the fluorescent Lime/Green 2″ x 150′ model.
For additional models, sizes/colours, please contact us with your enquiry.


Applications: Trucks, emergency vehicles, trailers, tankers, dump trucks, tow trucks and pick-up beds, utility vehicles that require increased visibility such as telecom, DOT, fire, EMS, and police vehicles
