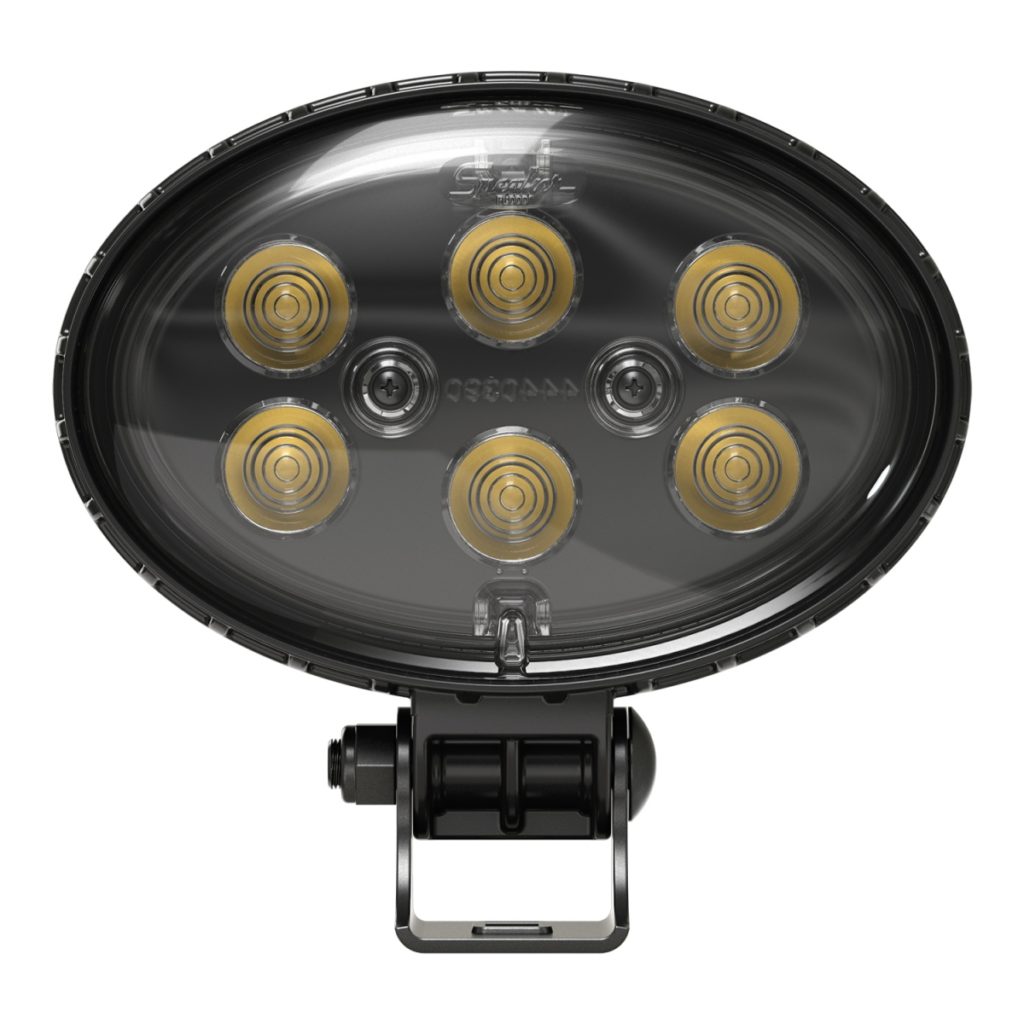

J.W. Speaker A735 Series 3” x 5” Oval LED Worklight

J.W. Speaker A735 Series 3” x 5” Oval LED Worklight

Brand: JW Speaker
Origin: USA


* As at Sep 2014 all single voltage A735 Series lamps have been superseded by Multi-volt 12-34V DC units. Please check with your APS Sales manager as to remaining stocks of single voltage units

The A735 Series features double the output of the Model A700 Gen 3 LED work lamps. The A735 utilizes the next generation of LED’s to produce a super bright, white light with a color temp of 5,500K. This compares to the 4,300K color temp of an Osram D1 HID lamp (used in hte A9720 HID work lamp).

1,400 effective/working lumens compares with ~ 2,200 working lumens achieved with the A9720 HID work lamp.

The A735 has been trialled extensively in rugged mining and marine applications. It is being standardized on large heavy equipment as access area lighting, forward driving lighting, vehicle perimiter lighting and large machine and vessel engine compartment lighting. They also have proven they can last in port and marine applications.

110V-240VAC Version to be available Q3 2010 – It will provide an excellent option for dock lighting, emergency lighting and AC voltage machine applications.

Speaker A735 Series Specifications

LensGlass or Polycarbonate
Lens PatternFlood, Spot, or Trapezoid
HousingDie-Cast Aluminum
ConnectorIntegrated 2-Pin Deutch Weather-Proof Socket (DT04-2P)
Mating Connector2-Pin Deutsch Weather-Proof Plug (DT06-2S)
MountingUniversal Mount
Hardware: (1x) 5/16"-18 x 0.58" Mounting Bolt
Voltage12V DC, 24V DC, or 12-24V DC
Light SourceLight Emitting Diodes (LEDs)
2,700 Raw Lu
1,400 Effective Lu
Amp3.70A @ 12V 1.70A @ 24V
Operating Temperature-40ºC min/ 65ºC max
Warranty4 yr | Limited Warranty
Standards ComplianceSAE J575
SAE J1455
SAE J1113
Sealed to IP69K

“XL” version for extreme industrial conditions also available click here


Applications: Forward Lighting, Access and Perimiter lighting: Mining, Construction, Ag, Forestry, Material Handling, Marine, Specialty Vehicles


Dimensions:
Width: 5.68" (144.2 mm), Height: 5.85" (148.5 mm), Depth: 3.52" (89.5 mm)

Part#
Description
Usually ships: 1-7D
Sell Qty: ea
Ship Weight: 2.2 lbs (1 kg)
Catalog page: New
Usually ships: 1-7D
Sell Qty: ea
Ship Weight: 2.2 lbs (1 kg)
Catalog page: New
Usually ships: 1-7D
Sell Qty: ea
Ship Weight: 2.2 lbs (1 kg)
Catalog page: New
Usually ships: 1-7D
Sell Qty: ea
Ship Weight: 2.2 lbs (1 kg)
Catalog page: New
Usually ships: 1-7D
Sell Qty: ea
Ship Weight: 2.2 lbs (1 kg)
Catalog page: New
Usually ships: 1-7D
Sell Qty: ea
Ship Weight: 2.2 lbs (1 kg)
Catalog page: New
Usually ships: 1-7D
Sell Qty: ea
Ship Weight: 1.6 lbs (0.72 kg)
Catalog page: New
Usually ships: 1-7D
Sell Qty: ea
Ship Weight: 1.6 lbs (0.72 kg)
Catalog page: New
Usually ships: 1-7D
Sell Qty: ea
Ship Weight: 1.6 lbs (0.72 kg)
Catalog page: New
