J.W. Speaker A90 LED Headlights

J.W. Speaker A90 LED Headlights

Brand: JW Speaker
Origin: USA

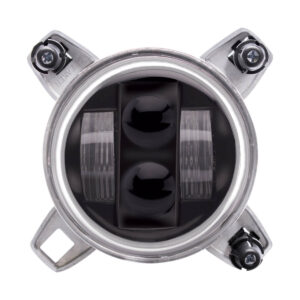

JW Speaker A90 HeadlightThe Model 90 LED headlights are designed as upgrades from stock bulb-based 90mm lights commonly found on buses, trucks, and motor coaches. Each Model 90 features a heavy-duty housing, UV-resistant lens, and the latest in solid-state optics. They are designed to be drop-in bus LED headlight replacements for stock 90mm lights.

Features and Benefits

  • Retrofits standard 90mm projector headlights
  • Easy installation and low maintenance
  • Low profile mount
  • 45,000 max. candela output (high beam); 17,500 max. candela output (low beam)
  • Available in a 12-24V DC configuration
  • UV-resistant polycarbonate lens
  • Rugged solid state LEDs can withstand shock & vibration
  • Long-lasting LEDs mean never having to replace another bulb again!

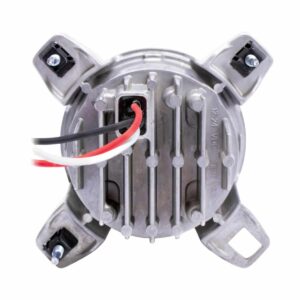

  • Die-cast aluminium housing provides maximum protection
  • High beam comes with integrated front position light and complies with FMVSS 108 UB6 when operated in conjunction with a low beam

Speaker A90 LED Headlights Specifications

TechLED
Colour Temperature5000°K
Candela / LumensDOT/ECE High beam headlight (A90-12/24V HB)
45,000 Candela

DOT/ECE RHT Low beam headlight (A90-12/24V LB)
1,910 Lu (raw Lumens)
575 Lu (effective Lumens)
Beam PatternDOT/ECE High beam headlight (A90-12/24V HB)
Forward Lighting - High Beam
Signalization - Front Position

DOT/ECE RHT Low beam headlight (A90-12/24V LB)
Forward Lighting - Low Beam
WattageDOT/ECE High beam headlight (A90-12/24V HB)
9.7W

DOT/ECE RHT Low beam headlight (A90-12/24V LB)
23.6W
Current DrawDOT/ECE High beam headlight (A90-12/24V HB)
0.80A @ 12V DC (High Beam)
0.40A @ 24V DC (High Beam)
0.40A @ 12V DC (Front Position)
0.20A @ 24V DC (Front Position)

DOT/ECE RHT Low beam headlight (A90-12/24V LB)
1.97A @ 12V DC
0.98A @ 24V DC
Voltage12-24V DC multi
Operating Temperature-40°C to +65°C
CertificationsFMVSS 108 Table XIX
ECE Reg 112
IP RatingIP67
Load Dump150V Peak @ 1 HZ-100 Pulses
Connection6" Bare Leads / Deutsch 2-Pin
LensClear polycarbonate
HousingDie-cast aluminium
MountingLow profile mount, 3 x ball & socket
Weight1.30 (lbs) / 0.59 (kgs)
Dimensions (DxWxH)3.56x4.27x4.27" (90.3x108.5x108.5mm)

In addition to this low beam and high beam headlight version, the Model 90 is also available in a turn signal, DRL, and front position version (Model 91), as well as daytime running light (DRL) and fog light version (Model 92).

Specification Sheets


Applications: Construction, industrial, agricultural, military, off-highway, on-highway, recreational, truck and bus


Dimensions:
Width: 4.27" (108.5 mm), Height: 4.27" (108.5 mm), Depth: 3.56" (90.3 mm)
