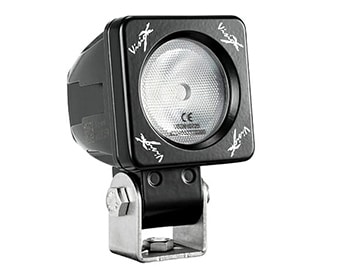

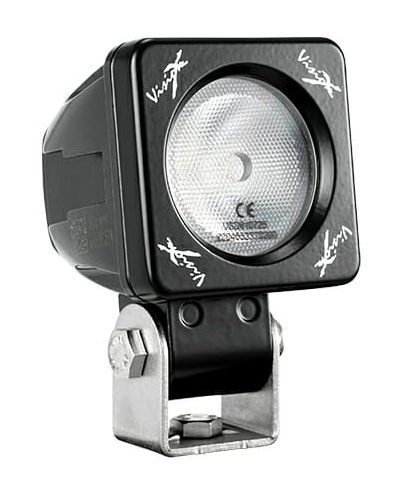

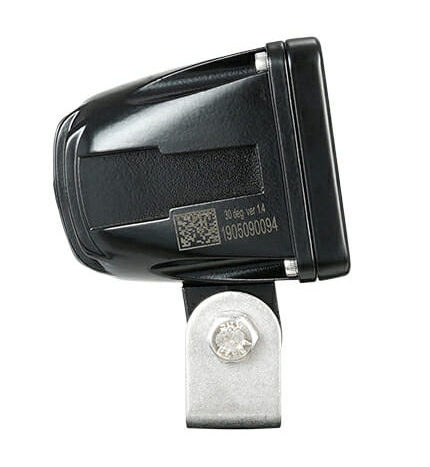

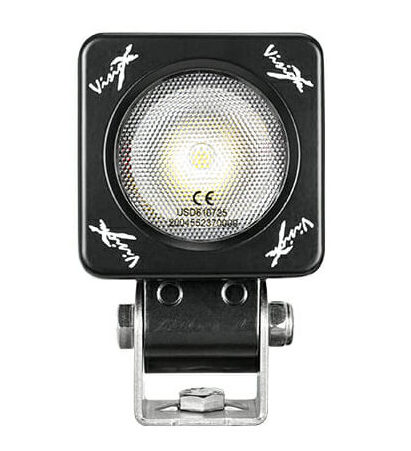

Vision X 2″ 10 Watt Solstice Solo LED Pod

Vision X 2″ 10 Watt Solstice Solo LED Pod

Brand: Vision X
Origin: USA


HIGH OUTPUT 2″ SQUARE COMPACT DESIGN
ULTIMATE USABILITY AND PORTABILITY

Features and Benefits

  • Highest Light Output Per Cubic Inch on the Market
  • Expand to Create Multiple Bar Solutions
  • Less than 1 Amp Power Consumption
  • Omni-Link Interlocking System
  • Adjustable Mounting Bracket

Specifications

WarrantyExtended
Available Housing ColorBlack or White
Available Beam Patterns10°, 30°, 60°, 30°/65°
rLumens900 lm
eLumens540 lm
Wattage10W
Weight0.76 lb/0.34 kg
LED Lifespan50,000 Hours

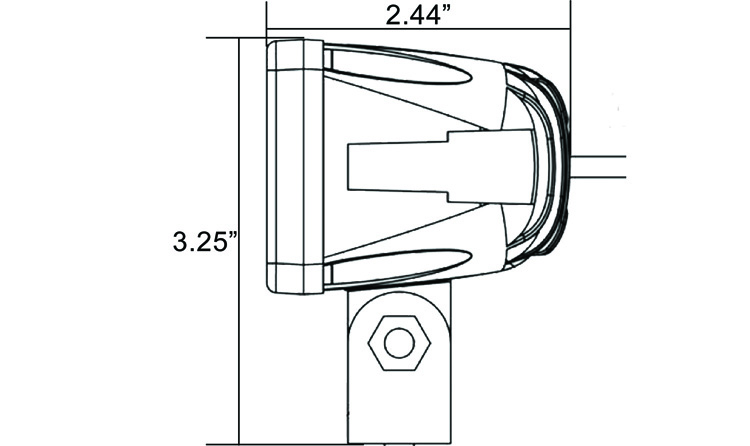

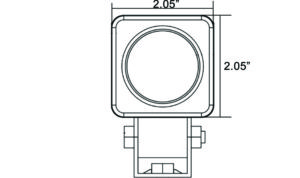

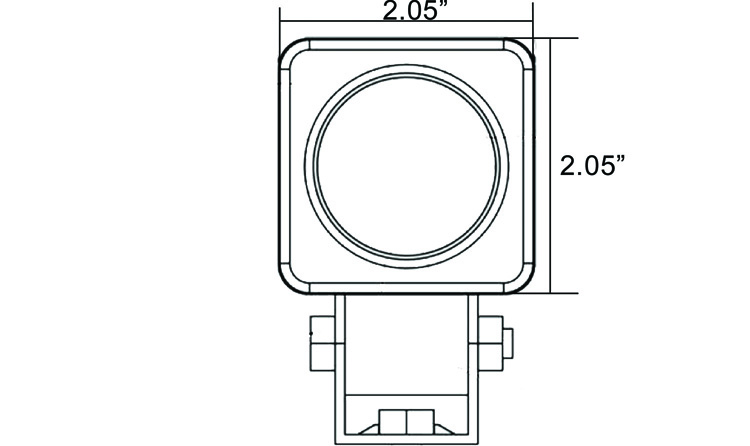

Dimensions2.05” x 2.05” x 2.44”
52 mm x 52 mm x 62 mm
Optic Purity88%
Driven At80%
Input Voltage9-48V DC
Amp0.83A @ 12V
IP RatingIP68
Vibration Rating15.6 Grms
Operating Temperature-40 Celsius ~ +80 Celsius
Added Features• Weatherproof Deutsch Connector
• Die-Cast Aluminum Housing
• Polycarbonate Lens
• Patent # D610,725 S
