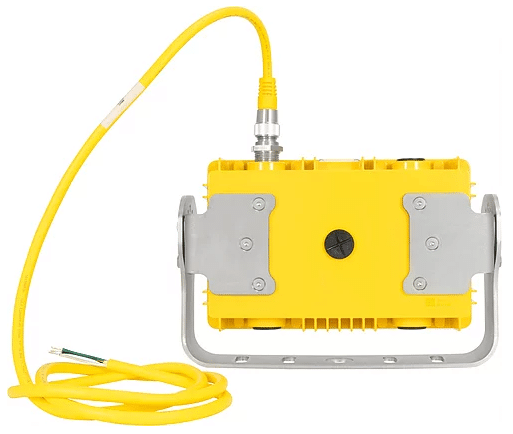

Vision X Corrosion Resistant 50W Junction Box

Vision X Corrosion Resistant 50W Junction Box

Brand: Vision X
Origin: USA


The 50-Watt All-In-One Junction Box LED Light is IP-68/IP69K rated and UL1598a rated for wet locations. Designed to fight against acid mist environments, the 50W is engineered with a plastic tri-coated aluminum housing.

Features and Benefits

  • Protective Coating Eliminates Corrosion in High-Risk Environments
  • All-In-One Junction Box and LED Light Fixture
  • Battery Back Up Version Available
  • UL Certified, IP-68/IP69K Rating, UL 1598a Certified

Corrosion Resistant 50W Junction Box Specifications

Fixture Weight8 lbs (3.8kg)
Shipping Weight10 lbs (4.5kg)
Mounting(6 ) 3/4” NPT - SIDES
LEDMHB-B(CREE)
Lumens7,000 lm
Beam Pattern60° Flood
90° Wide Flood
180° Ultra Wide Flood
Wattage50W
Amp Draw0.43A @ 115VAC | 0.22A @ 230VAC | 0.18A @ 277VAC
Color Temperature5000 Kelvin
Operating Voltage90-305V AC | 127-431V DC
Operating Temperature-40°C ~ 60°C
Lifespan50,000hrs
Frequency47-63Hz
THD<20% (@load≥50% 115VAC,230VAC)
(@load≥75% / 277VAC)
Power Factor≥ 0.98/115VAC
≥ 0.95/230VAC
≥ 0.92/277VAC
Short CircuitConstant Current Limiting, Recovers Automatically After Fault Condition is Removed
PolarityReverse Polarity Protection
Housing MaterialPlastic Tri-Coated Aluminum
LensSoda Lime Glass Lens
FinishGloss Yellow
EMC EmissionCompliance to EN55022, EN61000-3-2 Class A, EN61000-3-3
EMC ImmunityCompliance to EN55024, EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A
Ingress ProtectionIP68 / IP69K, UL1598a Marine
Vibration Rating15.6 Grms
Warranty5 Years

Specification Sheet

Vision X Corrosion Resistant 50W Junction Box Specification Sheet


Applications: Industrial Lighting


Dimensions:

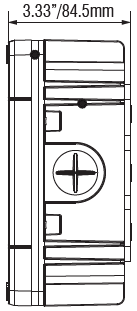

Width: 12.99" (330 mm), Height: 7.09" (180 mm), Depth: 3.33" (84.5 mm)
