Vision X LUC30 AC Dark Sky

Vision X LUC30 AC Dark Sky

Brand: Vision X
Origin: USA


Click for:

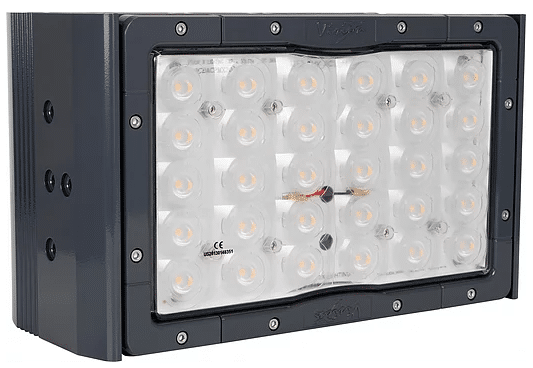

The 140-Watt fixture is designed with a painted bezel to eliminate light bleed. Unlike tradition fixtures, LEDs consume less power while emitting effective lumens, are more flexible with light content, and do not require a warm-up period resulting in wasted energy. Vision X LED fixtures are enhanced with Pulse Width Modulation (PWM) technology achieving a 50,000+ hour lifespan.

Vision X LSG033 AC Dark Sky Features & Benefits

  • 400-Watt Metal Halide Replacement
  • Color Temperature: 2800K
  • Wattage: 140W
  • 15.6 Grms Vibration Rating
  • Operating Voltage: 90-305VAC
  • Standard Trunnion Bracket
  • IP68, IP69K
  • Beam Patterns Available: 10, 25, 40, 60, 90, 3065 (Elliptical)

Vision X LSG033 AC Dark Sky Specifications

Type30 x XP-LHD (CREE) LEDs
Beam AngleSpot 10°, Narrow 25°, Medium 40°, Flood 60°, Wide Flood 90° or Elliptical
Color Temperature 2800K
Voltage90-305V AC
Wattage140W
Operating Temperature-40°C to +60°C
Vibration15.6Grms
IP RatingIP68, IP69K
Certifications / RatingsEMC Emission: EN55015, EN55022 (CISPR22) Class B, EN61000-3-2, Class C (@Load ≥ 50%); EN61000-3-3. EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, Light Industry Level surge immunity Line-Earth 4KV, Line-Line 2KV
Short CircuitConstant current limiting, recovers automatically after fault condition is removed
LensPolycarbonate Lens
Weight32 lbs (14.5kg) including TR Bracket
Dimensions (D, W, H)7.17x12.24x7.09” (182x311x180mm)

Vision X LSG033 AC Dark Sky Specifications Flyer (PDF)


Applications: Structural


Dimensions:
Width: 12.24" (311 mm), Height: 7.09" (180 mm), Depth: 7.17" (182 mm)
