Brand:
Vision X
Origin: USA
Click for:
With a 5’ to 9’ adjustable mounting pole and flexible ball joints, the Paver Light can be precisely positioned for any scenario. It uses two CSWD96 LED Fixtures from Vision X that are fully adjustable to meet any angle you are looking for. The high-efficiency CUBE LEDs output 117 lumens per watt and use minimal amounts of amperage. This kit is ideal for the Paver Market and Construction Industries.
Vision X Paver / Construction Lamp Kit Features & Benefits ▲
- Dual Ball Joints Allow Fixture to be Folded Down for Compact Storage
- Utilizes two CSWS96 LED Fixtures with 180 Beam Pattern
- High-Efficiency CUBE LEDs Output 117 lumens Per Watts
- 5-9 Foot Adjustable Mounting Pole
Complete Folding System For Storage
The Paver Light from Vision X can be folded down into a compact unit for easy storage thanks to the dual ball joints.
Kit Includes:
- 2 x CSWD96
- 1 x XPC-PS185-48 (AC only) 2 x Flexible Mounts
- 1 x Mounting Bracket

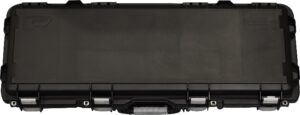

- 1 x Storage Case with Wheels 5’-9’ Adjustable Mounting Pole
Vision X Paver / Construction Lamp Kit Specifications ▲
| LED | Cube MP1919 |
| Beam Pattern | 180° Beam Pattern |
| rLumens | 21,696 lm |
| eLumens | 14,180 lm |
| Wattage | 192W |
| Amp Draw | 1.74A @ 110V AC | 16.0A@ 12V DC |
| Color Temperature | 5,000K |
| Operating Voltage | 110-277V AC | 9-32V DC |
| Operating Temperature | -40 C ~ 80 C |
| Lifespan | 50,000 hrs |
| Polarity | Reverse Polarity Protection |
| Connector | AC 12’ Cord with 110V Power Plug DC 12’ Cord with Deutsch 2 Pin & Pigtail |
| Housing | Die-Cast 6061 Aluminum |
| Finish | Clear |
| Lens | Polycarbonate |
| EMC Emission | (CISPR 25) Edition 3.0 (2008-03) Class 3 |
| Ingress Protection | IP68 / 69K |
| Vibration Rating | 15.6 Grms |
| Mounting | Adjustable Pole Mount |
| Weight | 28.03 lbs (12.71kg) |
| Warranty | 3 Years |
Vision X Paver / Construction Lamp Kit Specifications Flyer (PDF) ▲
Applications: Paver market or construction industries
