Brand:
J.W. Speaker
Origin: USA
Click for:

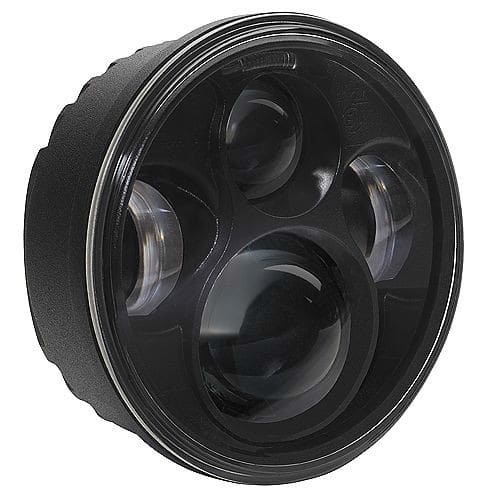

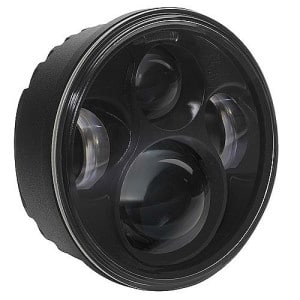

J.W. Speaker 8630 Series 5.75″ LED Headlight Features & Benefits ▲
- 1,200 Raw Lumens; 600-650 Effective Lumens
- Available in a 12-24V DC configuration
- Choose between high/low or high beam only versions
- Your choice of glass or hardcoated polycarbonate lens
- Rugged solid state LEDs can withstand shock & vibration
- Long-lasting LEDs mean never having to replace another bulb again!
- Die-cast aluminum housing provides maximum protection
- Replaces PAR46 (5.75” Round) headlights
- Features integrated front position light
- Lifetime limited warranty
- DOT, ECE LH traffic, and ECE RH traffic configurations available
- Optional mounting assembly configurations available
J.W. Speaker 8630 Series 5.75″ LED Headlight Specifications ▲
| Lens | Glass or Hardcoated Polycarbonate |
| Housing | Die-Cast Aluminum |
| Connector | Replaces PAR46 |
| Mating Connector | AMP (#1722615-2) |
| Voltage | 12-24V DC Input |
| Light Source | Light Emitting Diodes (LEDs) High/Low Beam Versions Raw Lumen Output: 1,200 (Low Beam); 1,200 (High Beam) Effective Lumen Output: 600 (Low Beam); 650 (High Beam) |
| Light Source | Light Emitting Diodes (LEDs) High/Low Beam Versions Raw Lumen Output: 1,200 (Low Beam); 1,200 (High Beam) Effective Lumen Output: 650 (High Beam) |
| Amp | 2.00 Amps @ 12V DC |
| Compliance | FMVSS 108 Buy America Compliant ECE Reg. 7 (ECE Versions Only) ECE Reg. 112 (Class B - ECE Versions Only) |
| Ingress Protection | IP67 |
| Warranty | Lifetime Limited Warranty |
Applications: Agricultural, Construction, Fire & Rescue, Forestry, Industrial, Law Enforcement, Lawn & Garden, Military, Mining, Off-Highway, On-Highway, Recreational, Specialty Trucks, Utility.
J.W. Speaker 8630 Series 5.75″ LED Headlight Parts Enquiry ▲
Part#
Description
8630-12/24V ECE LHT HL
Speaker 8630 Series LED Headlight w/ Front Position – ECE LHT
8630-12/24V ECE RHT HL
Speaker 8630 Series LED Headlight w/ Front Position – ECE RHT
8630-12/24V-DOT HB
Speaker 8630 Series LED Headlight – DOT
8630-12/24V-DOT HL
Speaker 8630 Series LED Headlight – DOT
8630-MMB
Speaker 8630 Series Mining Haul Truck Retrofit Kit
