Brand:
Golight
Origin: USA
Click for:

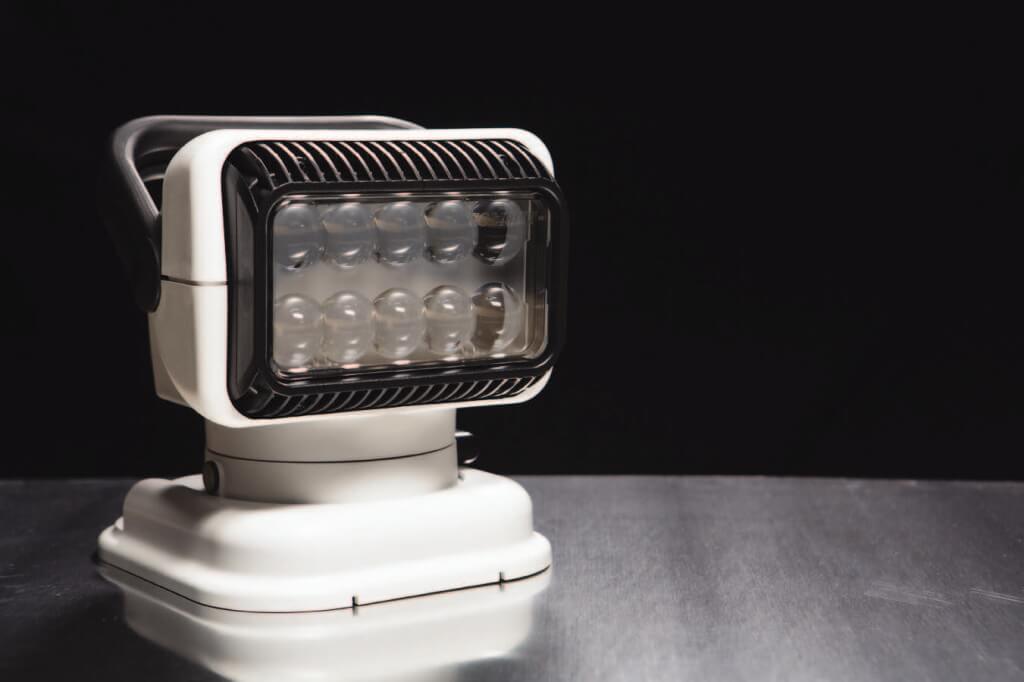

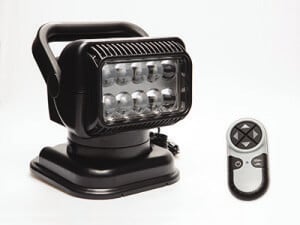

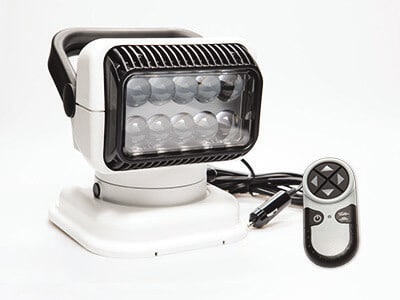

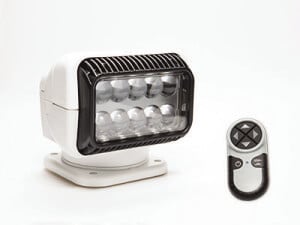

The Golight Radioray is a stable and proven motorised remote-controlled floodlight, which comes in either wired or wireless remote controller options. Radioray lights feature a white or black housing, and are mounted permanently, magnetically or on a stanchion post. These spotlights and flood lights can be run on 12 volts and come with a 3 year warranty.
Golight RadioRay LED Remote-controlled Light Features & Benefits ▲
- 10 high flux LEDs
- Wireless or hardwired remote control options
- Permanent or portable mounting options
- 370° rotation x 135° tilt
- 320,000 candela, max beam distance 3,711 ft
- 2.8A @ 13.8V
- 8° beam angle
- UV ray and saltwater resistant
- 3 year limited warranty
Golight RadioRay LED Remote-controlled Light Specifications ▲
| Type | 10 high-flux LEDs |
| Beam | 8° beam angle |
| Lens | P-Vex lens technology |
| Voltage | 12V DC |
| Wattage | 40W |
| Current Draw | 3A @ 12V DC |

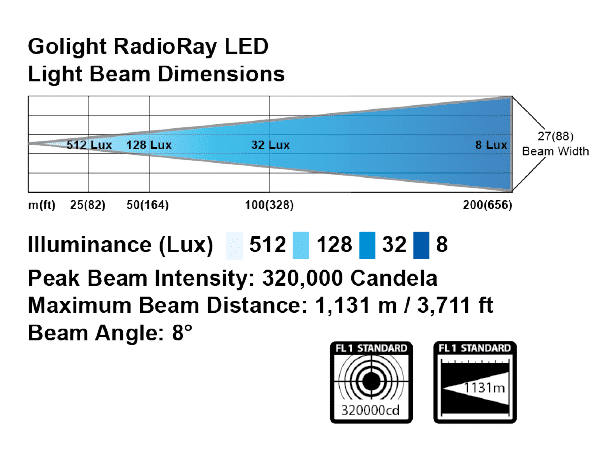

| Max Beam Distance | 1131m (3711 ft) |
| Peak Beam Intensity | 320,000 Candela |
| Heat Sink | Anodized aluminium heat sink w/liquid powder-cast finish |
| Motors | Automotive grade 12V D.C. High Torque, R.P.M. 6087 Constant Torque 17.133 mN.m/amp, Stall:12.31 mN.m Draw point 4 amps. Output: 1.96 watts w/built in stall protection circuitry. Built in stall protection circuitry |
| Colours | White, black, charcoal |
| Housing | Heat resistant and high impact injection molded housing ASA Polymer (white housing) ABS Polymer (black housing) |
| Gears & Transmission Parts | Lexan and Brass |
| Fasteners | Stainless steel |
| Parts | Nylon, Acetal Rack O-ring, Stainless Steel pinion drive 15’ 18G cord with universal cigarette lighter plug |
| Wireless Remote Controls | Radio Frequency: 433 MHz 2000 possible address codes with 7 station dip switch Transmitter power: 2 Duracell MN21 12v batteries Radio Frequency allows for remote operation up to 80 feet away |
| Mount | Permanent Mount, Portable Light/Magnetic Shoe, Portable Light/Permanent Shoe |
| Dimensions (D, W, H) | 7x7x6.5" (177.8x177.8x165mm) |
| Warranty | 3 years |
Mounting and Connection

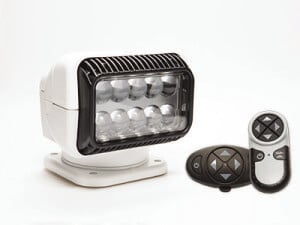

Permanent Mount – Wireless

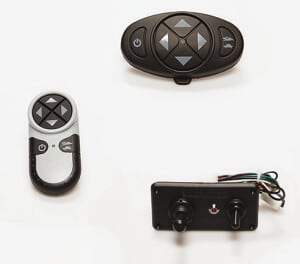

- Wireless handheld remote (or optional dash mount remote)
- Mounting hardware
- Comes in white and black

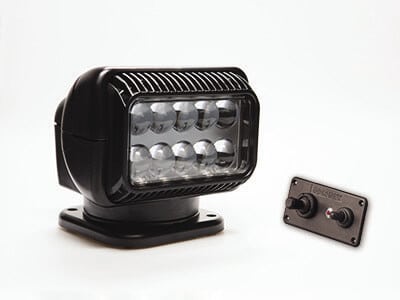

Permanent Mount – Hard-wired
- Hard-wired dash mount remote control
- 20′ wiring harness
- Mounting hardware
- Comes in white and black
Portable Mount – Wireless
- Wireless handheld remote

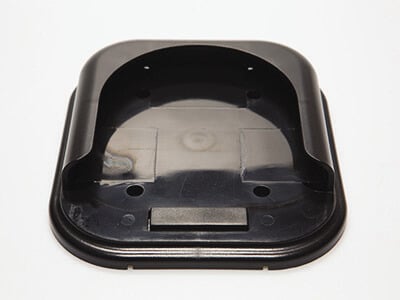

- Permanent mount shoe & suction cup
- 15’ Power cord with cigarette plug
- Comes in white and black

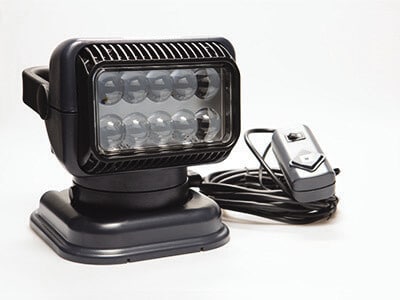

Portable Mount – Hard-wired
- Handheld wired remote
- Magnetic mount shoe & suction cup
- 15’ Power cord with cigarette plug
- Comes in charcoal only
Applications: Work and service vehicles, 4WD and recreational vehicles, military vehicles, emergency services, marine vessels
Dimensions:
Width: 7" (177.8 mm), Height: 7" (177.8 mm), Depth: 6.5" (165 mm)
