J.W. Speaker 777 LED ARC Warning Light

J.W. Speaker 777 LED ARC Warning Light

Brand: J.W. Speaker
Origin: US


JWS Model 777 LED ARC Warning Light

Round LED Warning Light

The Model 777 offers a unique “keep out zone” safety light in a sleek and practical design. This LED safety light is designed with various types of safety applications in mind, including forklifts, work trucks, construction vehicles, farm equipment, and more. They are available in three different colour configurations to create the best solution for each industry and application.

J.W. Speaker offers a safety lighting package, designed to help both your operators as well as your workforce on the floor, adding safety precautions and visibility. For a 360 safety solution, mount one in the front and one in the back. It can be combined with linear safety light as well. Model 777 is a reliable universal safety light that can be used in a variety of different applications. It creates a safety-zone that is highly visible to keep employees and pedestrians away from moving vehicles.

Features and Benefits

  • High-powered LED safety light creates keep-away zones
  • Compact and easy to install using a pedestal mount
  • Precise beam patterns in red, blue, and green
  • Sleek design; weather-proof; excellent thermal management
  • Voltage ranges: 10-80V, suitable for various types of applications

Speaker Model 516 LED Headlight – Forklift Light Specifications

Light sourceLEDs
Colours availableRed, Blue, Green
Current Draw1.20A @ 12V DC, 0.60A @ 24V DC, 0.40A @ 36V DC,
0.30A @ 48V DC, 0.24A @ 60V DC, 0.20A @ 72V DC
Voltage12-72V DC
HousingBlack Die-Cast Aluminium
LensClear polycarbonate
Transient Spike Protection330V Peak @ 1 HZ-100 Pul
Operating Temperature-40°C to +65°C
IP RatingIP67
Wiring19.5" Bare Leads (tinned)
CertificationsCISPR 22, ECE Reg 10, Tested to ECE Reg. 10 (Radiated Emissions only)
MountingPedestal. M10-30mm M10 Stainless Steel
Weight1.5 (lbs) / 0.68 (kgs)

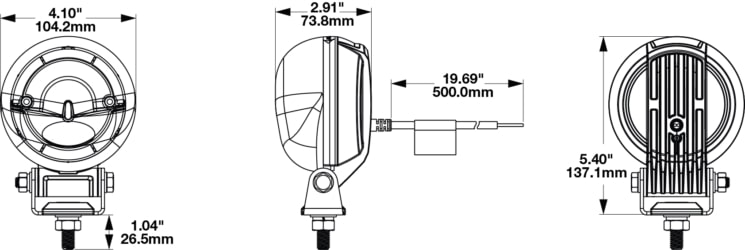

Dimensions (DxWxH)2.91x4.1x5.4” (74x104x137mm)



Long-lasting design
Durable Polycarbonate lens minimises environmental damage, and the internal components are fully encapsulated for moisture, vibration and corrosion resistance.

For many industries, UL is a market-entry requirement
All Model 777 Lights comply with IP67 (immersion <1m), IP69K (power washing) and UL Recognised. Complies with ECE Reg. 10.

Mounting Pattern
The brightness (Lux) and pattern size will vary based on mounting height. To help determine what height is best for your application.

Specification Sheet

J.W. Speaker 777 LED ARC Warning Light Specification Sheet


Applications: Forklifts, Construction, Industrial, Material Handling, Specialty Vehicles, Trucks and Buses
