Vision X Cube Shockwave Dual LED Panel Light

Vision X Cube Shockwave Dual LED Panel Light

Brand: Vision X
Origin: USA


The Cube LED Shockwave pairs Vision X Lighting’s new Cube LED technology with the durability and versatility of the Shockwave series. The Shockwave is available in 1, 2, 3, and 4′ lengths and in single and dual panel designs for various application needs. The dual panel Shockwave provides a 210° beam spread for optimal flood lighting.

Cube LED Technology
The new Cube technology from Vision X Lighting features direct 48V DC lights specifically designed to be paired with a high performance LED driver to offer 110-277V AC input. Reduced electronics enable higher efficiency and less heat for a consistently longer life span. Cube LEDs are not designed for use with an optic, but rather deliver a 210° beam spread independently for even distribution of illumination.

Features & Benefits

  • Utilizes cube LED technology to increase efficiency
  • Integrated Electronic Thermal Management (ETM)
  • Direct fluorescent fixture replacement
  • Reinforced gasketed Bezel

Vision X Cube Dual LED Panel Light Specifications

TypeCube LED technology

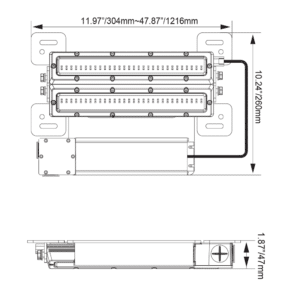

LengthsDual 12 and 24" (304 and 610mm)
Beam210°
Vibrating Rating15.6G
Voltage110-277V AC
Apos0.87A and 1.75A
Wattage96W and 192W
eLumens8,670 Lu and 17,350 Lu
rLumens10,848 Lu and 21,696 Lu
IP RatingIP68/IP69K
Warranty3 Years/Extended

Specification Sheets


Applications: Industrial, commercial, fluorescent replacement
