Vision X Pit Master Xtreme Prime LED Light

Vision X Pit Master Xtreme Prime LED Light

Brand: Vision X
Origin: USA


Modular LED Upgrade for HPS and Metal Hallide

The Pitmaster 30 is a 30 LED unit providing a direct 1 for 1 replacement for 400-500W HPS lighting for a 70% reduction in power consumption whilst increasing output by 30%. The Pitmaster puts out 11,100 lumens of light output while only drawing 6.25 amps. For a long lasting area light with low power consumption, the Pitmaster is the only way to go.

400W-500W Metal Halide Replacement Prime Drive for Enhanced Reliability & Output

Features and Benefits

  • Integrated Electronic Thermal Management (ETM)
  • Xtreme Five Watt LED is Driven to 90%Efficiency
  • 360º Fully Adjustable Mounting System
  • Reinforced Gasketed Bezel
  • 90% Optically Pure
  • Integrated Power Supply Mount (Power Supply Sold Separately)
  • Integrated Deutsch Connector
  • Die-Cast Aluminum Housing
  • Polycarbonate Lens
  • Patent Pending

Vision X Pit Master Xtreme Prime LED Light Specifications

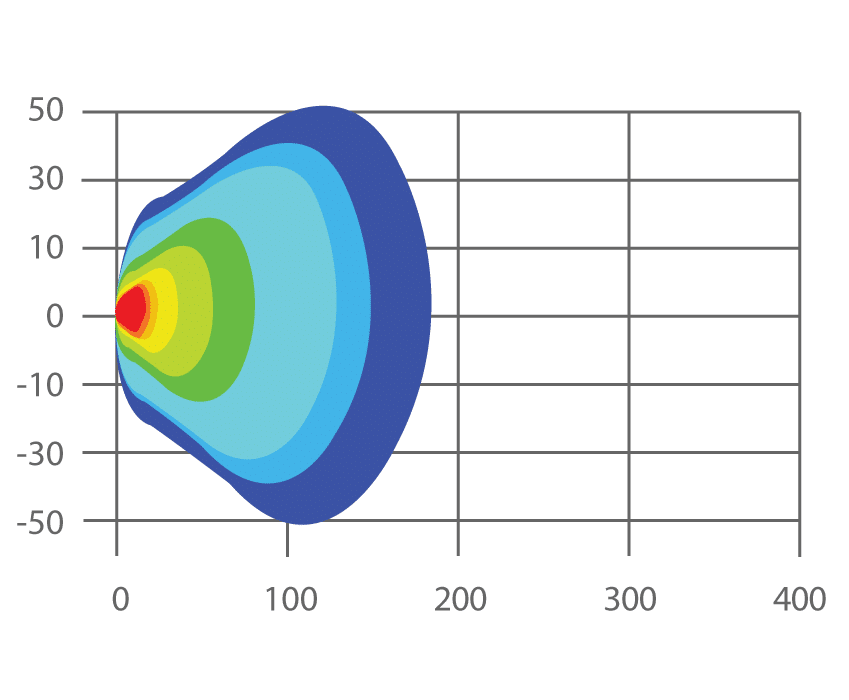

Beam Patterns10° Narrow
40° Wide
60° Extra Wide
90° Xtreme Wide
30° or 65° Elliptical
rLumens15,840 Lu
eLumens11,100 Lu
Wattage150W
Weight12.34lbs/5.6kg
LED Lifespan20,000 hours
Input Voltage11-65V DC
90-480V AC with Optional Inverter
Current Draw12.5A @ 12V
IP RatingIP68
Vibration Rating15.6 Grms
Warranty3 Years

Specification Sheets


Applications: Mining and heavy industry


Dimensions:
Width: 11.96" (297 mm), Height: 7.52" (191 mm), Depth: 4.94" (126 mm)

Part#
Description
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 11.02 lbs (5.6 kg)
Catalog page: New
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 11.02 lbs (5.6 kg)
Catalog page: New
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 11.02 lbs (5.6 kg)
Catalog page: New
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 11.02 lbs (5.6 kg)
Catalog page: New
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 11.02 lbs (5.6 kg)
Catalog page: New
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 11.02 lbs (5.6 kg)
Catalog page: New
