Brand:
J.W. Speaker
Origin: USA
Click for:

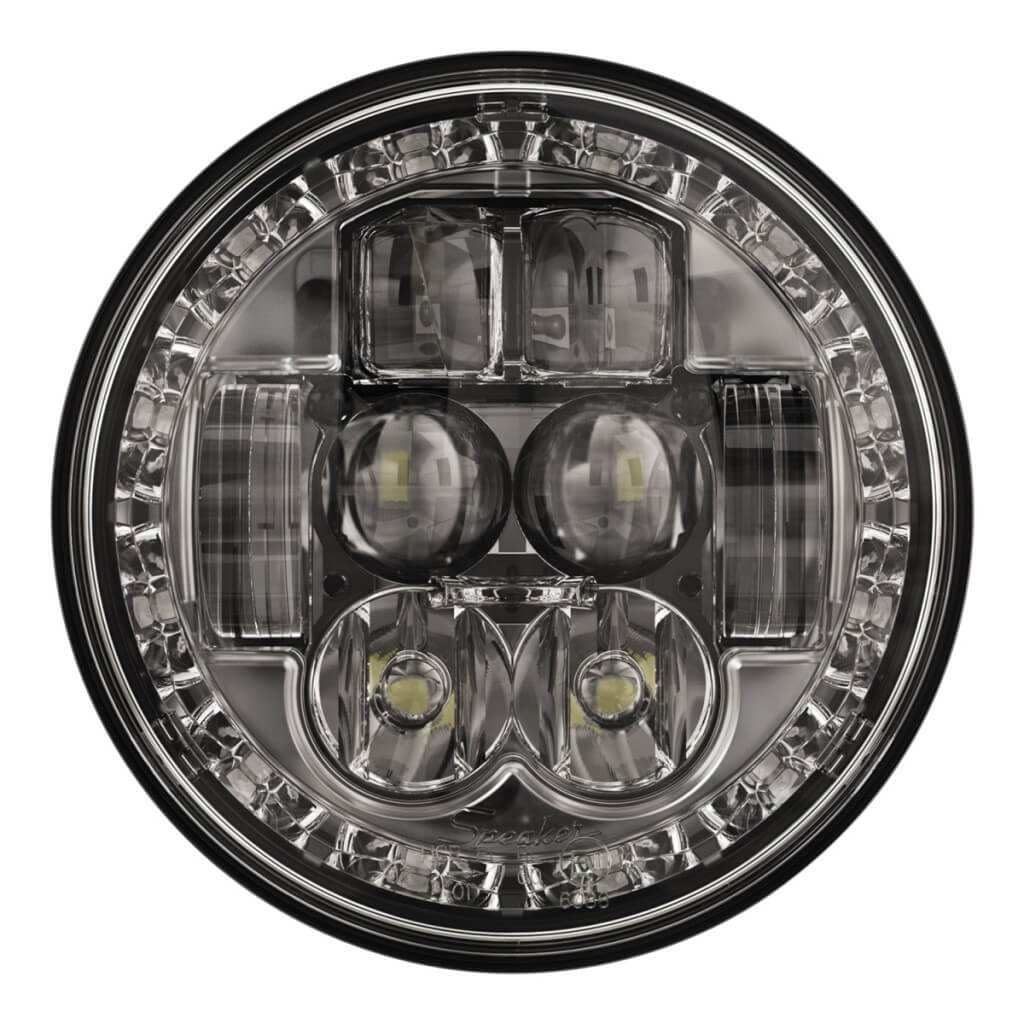

The new 8631 Evolution LED headlight by JW Speaker brings you all of the same great features found in the 8630 Evolution LED headlight, with the addition of a turn signal. Amber in colour, the new turn signal is designed in the outer ring of the lamp to display a flashing circle when in use.
The 8631 Evolution LED headlight offers a powerful LED upgrade option for 5.75″ (PAR46) sealed beam headlights.
J.W. Speaker 8631 Evolution 5.75″ LED Headlight with DRL Features & Benefits ▲
- DOT/ECE compliant functions make this product 100% street legal
- Easy plug and play installation uses Delphi wire connector
- Turn signal, daytime running light (DRL) & front position (FP) functions utilise a outer ring at high intensities
- Produces identical light output (2,925 effective lumens/1,000 raw lumens) to the 8630 Evolution headlight
J.W. Speaker 8631 Evolution 5.75″ LED Headlight with DRL Specifications ▲
| Light source | LEDs |
| eLumens | 1,000 Lu (high beam); 630 Lu (low beam) |
| rLumens | 2,925 Lu (high beam); 2,025 Lu (low beam) |
| Beam Pattern | Forward Lighting ECE left-hand (low beam) Forward Lighting DOT/ECE (high beam) Forward Lighting (DRL) Signalisation (front position) Signalisation (front turn) |
| Current Draw | 2.20A @ 12V DC (low beam) 3.50A @ 12V DC (high beam) 1.10A @ 12V DC (DRL) 0.05A @ 12V DC (front position) 1.40A @ 12V DC (front turn) |
| Voltage | 12-24V DC |
| Operating Temperature | -34°C to +49°C |
| Housing | Black Aluminium |
| Lens | Hardcoated polycarbonate |
| Electrical Connection | Integral connector in housing simulating Delphi |
| IP Rating | IP67 |
| Weight | 1.76 (lbs) / 0.8 (kgs) |
| Dimensions (DxWxH) | 3.4x5.6x5.6" (86.4x142.2x142.2mm) |
J.W. Speaker 8631 Evolution 5.75″ LED Headlight with DRL Specification Flyer (PDF) ▲
Applications: Agricultural, Construction, Fire & Rescue, Forestry, Industrial, Law Enforcement, Lawn & Garden, Military, Mining, Off-Highway, On-Highway, Recreational, Specialty Trucks, Utility.
Dimensions:
Width: 5.6" (86.4 mm), Height: 5.6" (142.2 mm), Depth: 3.4" (142.2 mm)
J.W. Speaker 8631 Evolution 5.75″ LED Headlight with DRL Parts Enquiry ▲
Speaker 8631 Series 12-24V ECE LED LHT High & Low Beam Headlight with FP & DRL
Speaker 8631 Series 12-24V DOT LED High & Low Beam Headlight
Speaker 8631 Series 12-24V DOT/ECE LED RHT High & Low Beam Headlight with FP & DRL
Single Ring Mounting Kit for Speaker LED Headlight Model 8631 Series
Double Ring Mounting Kit for Speaker LED Headlight Model 8631 Series
J.W. Speaker 8631 Series – 12-24V, ECE LED LHT High & Low Beam Headlight with FP & DRL
J.W. Speaker 8631 Series – 12-24V, DOT/ECE LED RHT High & Low Beam Headlight with FP & DRL
J.W. Speaker 8631 Series – 12-24V, DOT LED High & Low Beam Headlight
