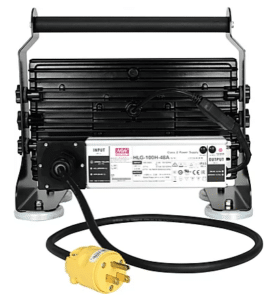

Vision X VL-Pitmaster Magnetic Light

Vision X VL-Pitmaster Magnetic Light

Brand: Vision X
Origin: USA


The VL-Pitmaster series combines tough compact housing with advanced optics to make a versatile LED replacement for metal halide or HPS fixtures. High-quality construction and magnetic components make this tower light easily portable. This fixture is compatible with all AC Series accessories.

Features and Benefits

  • Compact and Durable Die-Cast Housing Construction
  • Magnetic Bracket Components for Quick Mobility
  • 60° Beam Pattern
  • DC Light Fixture or AC Light Fixture

Vision X VL-Pitmaster Magnetic Light Specifications

Fixture Weight5.8lbs (2.5kg)
w / Power Supply and Bracket13.40lbs (6.0kg)
Shipping Weight14.95lbs ( 6.78kg)
MountingMagnetc Bracket
Type of LEDs1.8W LED
Lumens15,351lm (DC)
16.785lm (AC)
Beam Pattern60°
Wattage100W
Amp Draw8.3A @ 12V DC
0.9A @ 110V AC
Color Temperature5000K
Operating Voltage10-32V DC
110-480V AC Available
Operating Temperature-40°C ~ 85°C
Lifespan50,000hrs
EMCVaries Per Power Supply
PolarityReverse Polarity Protection
ConnectorDeutsch DT04-2P
Housing MaterialAluminum
LensPolycarbonate
FinishMarine Grade Gloss Black
Ingress ProtectionIP68 / 69K, CISPR 25
Vibration Rating21.2Grms
Salt SprayISO 9227
Warranty1 Year

Specification Sheet

Vision X VL-Pitmaster Magnetic Light Specification Sheet


Dimensions:
Width: 12.85" (326.39 mm), Height: 11.50" (292.1 mm), Depth: 7.25" (184.15 mm)
